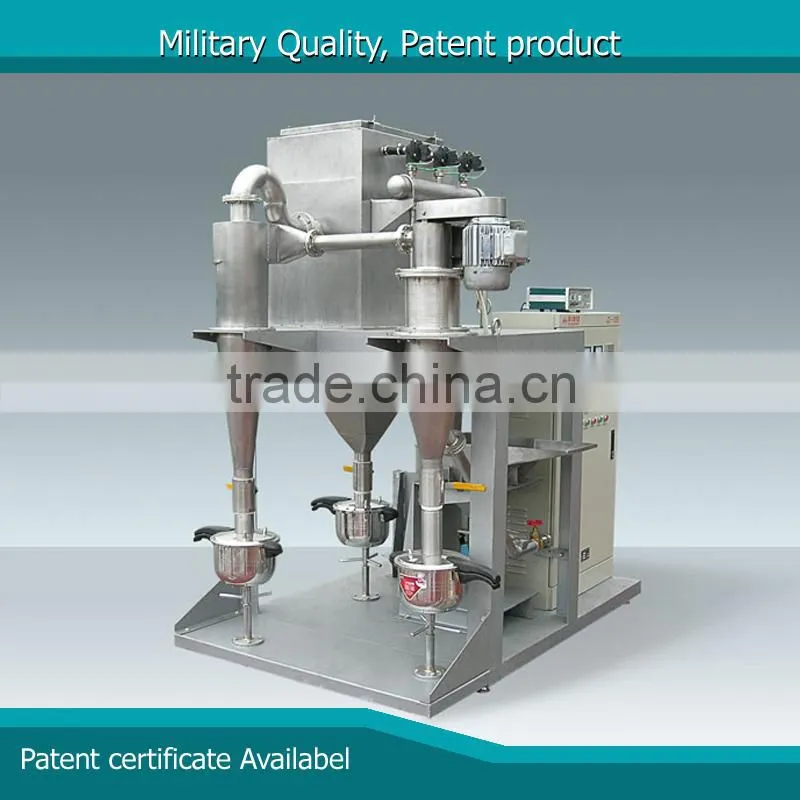

sample grinding machine for laboratory use
pulverizer grinder
Working principle
Material will be transmitted to crushing cavity by input material device, via the material impact, collision, friction, shear, extrusion with the high speed rotary device and particle to realize superfine grinding.
the crushed material will be rising to impeller grading machine by air flow, via centrifugal force and air pumping force, to achieve the separation of coarse and fine powder, fine powder is collected by the cyclone collector qualified, unqualified powder will be re-crushing thru inner grading machine. The purified gas is composed of a draught fan exclusion.
Characteristics:
It Is a small experimental device specially designed for colleges and scientific research department, equipment has the advantages of small volume, compact structure, convenient assembly and disassembly. Break through the particle acceleration technology, greatly improve the grinding efficiency, and reduce energy consumption, avoid over crushing.
1 can reach 2-74Um particle size, narrow particle size distribution and no large particles
2 crushing by material collision, can process Mohs hardness of 1-10 particles, reduce abrasion, product without iron contamination
3 reasonable cooling flow field in the grinding process, due to the rapid expansion of the air flow and air temperature is reduced, processing and especially suitable for heat sensitive, low melting point materials
4, optimize the structure of equipment, improve equipment performance, can dissociation agglomeration of ultrafine powder, polymer dispersed effective.
5 original classification flow technology, can obtain the crushing efficiency and tight size distribution best, smash granularity can be regulated arbitrarily between 1-74um, the smallest can reach sub micron, reduce material loss, can achieve the basic body cavity crushing material completely crushed, few equipment inner wall residual, no dead angle, easy to clean, fully meet the GMP standard
6 original special jet and classification flow processing technology, suitable for adhesion material
7 can perform species material mixing pulverizing, has good mixing function
8 operation in sealed negative pressure, no environmental pollution
Technical parameter:
Model |
Max feed size |
Discharging size |
Manufacture capacity |
Install power |
gas consumption |
JSDL-SYJ6 |
<1mm |
2-80um |
500-5000g/h |
<6-8.5kw/380v |
1m3/min |
JSDL-SYJ7 |
<1mm |
2-80um |
500-5000g/h |
<6-9kw/380v |
1m3/min |
JSDL-SYJ8 |
<1mm |
2-80um |
0.5-10kg/h |
<18-20kw/380v |
1m3/min |
1. Quality -powerful military aerospace strength, the machine can operate 29 days continuously without rest.
2. Engineer-our engineer are both air power ultra expert with overall R&D strength and comprehensive competence, which
3. Service-we have professional sales team for pre-sales and after-sales services, also we will send engineer to your factory if you need.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.
product national patent:
Chengdu Our Trading Co.,Ltd is a trade and industry integrated company which established in 2008 with abundant exporting experience. With the company developed, we have 2 factories, one is located in Chengdu and another is in Mianyang.
Our main products are micronizer jet mill, micronizer impact mill, air classifier, inter gas protective equipment etc.
Application of pulverator:
Processing materials in many fields, such as: health food raw material, herbal medicine, pesticide, cosmetic, chemical materials, mining materials, metallurgy, waste resource and scientific research project etc.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.

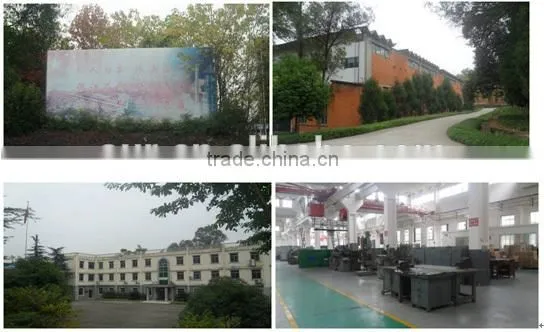

factory pictures:
website:
tel: 028-61318297
mobile: 18782962236
Skype: wu.yao5
