agricultural use bean crusher machine
Operating principle
Material been send to the host grinding chamber by the feed device, and under the mutual impact between the material and the high-speed rotary device and particle collision, friction, shearing, extrusion to achieve ultrafine grinding. Crushed material had been send to the impeller classification zone by rising air, to separate the different thickness of material through centrifugal of classifier wheel and fans pumping force. The qualified powder collected by the cyclone collector, and unqualified powder return by inner grader to the grinding chamber to grinding again. The purified gas discharged by induced draft fan.
Features:
1. The unique multi crushing force field, it has high crushing efficiency for the soft and fibrous materials. High crushing strength, it can produce effective broken to Lingzhi.
2. Reasonable cooling flow field, it can prevent medicines go bad for the partial high temperature. low crushing temperature, to ensure the nature quality of the crushed medicine and health products.
3. Product no pollution, the inner shell surface is smooth and easy to clean, small footprint, low noise, no vibration, wide application. All the Products which produced by the equipment line with the pharmaceutical GMP standards
Technical parameters
model |
Steam consumption |
maximum feed size |
Discharging size(adjustable) |
Production capacity |
JSDLGS-200 |
200kg/h |
≤3mm |
1-74um |
50-200kg/h |
JSDLGS-1000 |
1000kg/h |
≤5mm |
1-74um |
100-1000kg/h |
JSDLGS-2000 |
2000kg/h |
≤5mm |
1-74um |
500-4000kg/h |
JSDLGS-3000 |
3000kg/h |
≤5mm |
1-74um |
1T-7T/h |
JSDLGS-6000 |
6000kg/h |
≤5mm |
1-74um |
2T-10T/h |
JSDLGS-10T |
10Tkg/h |
≤5mm |
1-74um |
5T-20T/h |

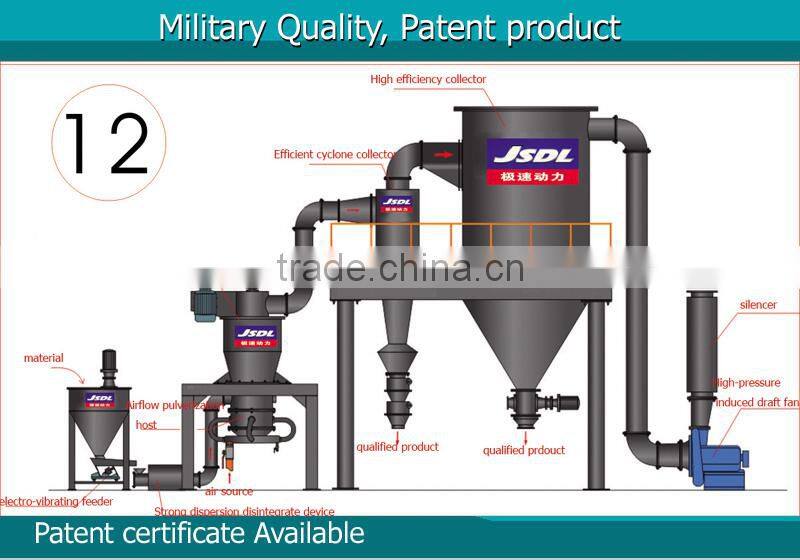

Sketch map:
Chengdu Our Trading Co.,Ltd is a trade and industry integrated company which established in 2008 with abundant exporting experience. With the company developed, we have 2 factories, one is located in Chengdu and another is in Mianyang.
Our main products are micronizer jet mill, micronizer impact mill, air classifier, inter gas protective equipmentetc.
Application of pulverator:
Processing materials in many fields, such as: health food raw material, herbal medicine, pesticide, cosmetic, chemical materials, mining materials, metallurgy, waste resource and scientific research project etc.
Our advantages:
1. Factory –located in Mianyang, Chinese people’s liberation army 63820,575 workshop.
2. Quality -powerful military aerospace strength, the machine can operate 29 days continuously without rest.
3. Engineer-our engineer are both air power ultra expert withoverall R&D strength and comprehensive competence, which can design the jet mill or redesign mill according customers’ requirements.
4. Service-we have professional sales team for pre-sales and after-sales services, also we will send engineer to your factory if you need.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.
