Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan

Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan thumbnail-1
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan thumbnail-2
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan thumbnail-3
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan thumbnail-4
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan thumbnail-5
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan thumbnail-6
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan photo-1
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan photo-2
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan photo-3
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan photo-4
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan photo-5
Fanless Industrial i7 Barebone System With 2 Hdmi and 2 Rj45 Lan photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Barebone System
Screen Size:
Other
Contact Supplier Request Quote Chat Now
Shenzhen Maxtang Computer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN HONG KONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Barebone System
Screen Size Other
Processor Brand Intel
Memory Capacity Other, ≥ 4GB
Hard Drive Capacity 1TB
Graphics Card Type Integrated Card
Display Type Other
Widescreen No
Optical Drive Type Other
Processor Main Frequency 2.4 GHz
Brand Name Maxtang computer
Model Number VBW-10 mini computer
Place of Origin Guangdong, China
Product Description
Mini PC Main Info

VBW-10 is a mini industrial embedded small factor fanless PC system developed with the latest Intel 5th generation Broadwell i7 processor. Broadwell is a 14 nanometer process as opposed to Haswell's 22 nanometer process, and will offer 20 percent better graphical performance than Haswell did, letting Intel HD, Iris, and Iris Pro graphics get a little boost even if they can't tackle serious nextgen graphics.

This mini pc features full HD 1080p playback using hardware acceleration and the ability of running dual independent displays through 2 hdmi ports.This fanless mini computer has 1* SO-DIMM slot for memory up to 8GB, 1*SATA3.0, and expansion slots 2 mini PCIe. In addition, this Core i7 4500U based mini pc is also equipped with 2 X LAN, 2 x USB3.0, 4 x USB2.0, 1 x COM RS232  for wide applications. Its 190*150*27mm figure can be applied to any space-conservative environment. These combined features makes this fanless mini PC an ideal for a range of applications like HTPC, POS, digital signage, industrial automation, network security and so on. This Haswell based fanless mini PC barebone is designed to be high performance, reliable, secure and easy to manage.
Mini PC Features
  • Developed around Haswell Core i7 5500U
  • 1*SO-DIMM slot for memory up to 8GB
  • HD 1080P playback and dual independent displays via 2 HDMI ports
  • Rich I/O ports: 2*USB3.0, 4*USB2.0, 2*LAN, 1*COM
  • Supports PXE, Wake On LAN, Auto Power On Function
  • Aluminium case
  • Fanless mini pc barebone with a super slim  figure of 190 x 150 x 25mm

VHW10-i7 4500U Fanless Mini PC Parameters

CPU Core i7 5500U(2.4 GHz, max turbo frequency 3.0 GHz, TDP 15W)
System Memory 1 x SO-DIMM slot supports DDR3L up to 8GB RAM
Ethernet RTL8111F, 10Mbps/100Mbps/1000Mbps, 2 x LAN
Storage 1x SATA3.0
Expansion 2x mini-PCIe
Power Supply 1x DC_IN 12
Display Interface 2x HDMI
USB 4x USB2.0, 2x USB3.0
Audio ALC662 chip, Mic in, Line out
Wake on LAN Yes
Enclosure Material Aluminum Alloy
Cooling system Fanless
Color Black
Operating Temperature -20~65
Dimension 150mm x190mm x 27mm
Weight 800g

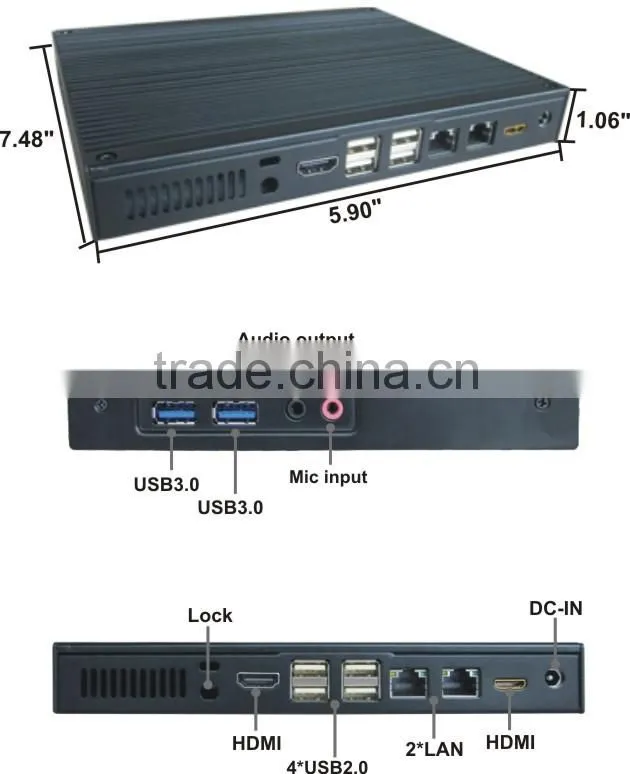

Mini PC Ports(fanless design, aluminum enclosure)


 Fanless industrial i7 barebone system with 2 hdmi and 2 rj45 lan



Packaging & Shipping

 12pcs mini pc barebone package in one carton. Each mini pc barebone and its accessories(adapter, HDMI cable are included) are packed in different boxes.

Company Information

Founded in 2002, Shenzhen Maxtang Computer Company Limited (hereafter referred as Maxtang) is a pioneer immersed into low power consumption mini computer barebone and mini-itx motherboard designing, researching and manufacturing. Equipped with dozens of experienced engineers in R&D department, Maxtang works closely with its customers to provide them a quicker time-to-market and best operating experience.

With its close cooperation with Giants like Intel, AMD, Nvidia and VIA, Maxtang has its own production lines and has launched an extensive portfolio ranging from mini itx motherboards, mini computers and industrial computers under its own brand Maxtang. Its products are widely used in applications like home, office, school system, data communication, hotel, KTV, AIO, digital signage, banking, medical POS and so on.

Years of exprerience of making mini pc and mini itx motherboard enables Maxtang be quick to market requiremnets, and be flexible in designing and manufacturing.
