Industrial Fanless Mini Computer With Broadwell Cpu

Industrial Fanless Mini Computer With Broadwell Cpu photo-1
Industrial Fanless Mini Computer With Broadwell Cpu photo-2
Industrial Fanless Mini Computer With Broadwell Cpu photo-3
Industrial Fanless Mini Computer With Broadwell Cpu photo-4
Industrial Fanless Mini Computer With Broadwell Cpu photo-5
Industrial Fanless Mini Computer With Broadwell Cpu photo-6
US$ 130 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Barebone System
Screen Size:
No Monitor
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN HONG KONG
Delivery Detail:
Delivery time depends on order quantity.
Products Status Stock
Type Barebone System
Screen Size No Monitor
Processor Brand Intel
Memory Capacity Other
Hard Drive Capacity Other
Graphics Card Type Dedicated Card
Display Type LCD
Widescreen Yes
Optical Drive Type Other
Processor Main Frequency 1.5GHZ
Brand Name MAXTANG
Model Number VBW-10
Place of Origin Guangdong, China
Product Description
Main Info

VBW-10 is a fanless mini computer developed around the latest Intel 5th generation Broadwell celeron 3205U processor. Broadwell is a 14 nanometer process asopposed to Haswell's 22 nanometer process, and will offer 20 percent better graphical performance than Haswell did, letting Intel HD, Iris, and Iris Pro graphics get a little boost even if they can't tackle serious nextgen graphics.

This mini pc features full HD 1080p playback using hardware acceleration and the ability of running dual independent displays through 2 hdmi ports.This fanless mini computer has 1* SO-DIMM slot for memory up to 8GB, 1*SATA3.0, and expansion slots 2 mini PCIe. In addition, this Celeron 3205U based mini pc is also equipped with 2 X LAN, 2 x USB3.0, 4 x USB2.0, 1 x COM RS232  for wide applications. Its 190*150*27mm figure can be applied to any space-conservative environment. These combined features makes this fanless mini PC an ideal for a range of applications like HTPC, POS, digital signage, industrial automation, network security and so on. This fanless mini computer is designed to be high performance, reliable, secure and easy to manage.
Features
  • Developed around Broadwell Celeron 3205U
  • 1*SO-DIMM slot for memory up to 8GB
  • HD 1080P playback and dual independent displays via 2 HDMI ports
  • Rich I/O ports: 2*USB3.0, 4*USB2.0, 2*LAN, 1*COM
  • Supports PXE, Wake On LAN, Auto Power On Function
  • Aluminium case
  • Fanless mini computer with a super slim  figure of 190 x 150 x 27mm

Parameters


CPUCeleron 3205U(1.5 GHz, dual core, TDP 15W)
System Memory1 x SO-DIMM slot supports DDR3L up to 8GB RAM
EthernetRTL8111F, 10Mbps/100Mbps/1000Mbps, 2 x LAN
Storage1x SATA3.0
Expansion2x mini-PCIe
Power Supply1x DC_IN 12
Display Interface2x HDMI
USB4x USB2.0, 2x USB3.0
AudioALC662 chip, Mic in, Line out
Wake on LANYes
Enclosure MaterialAluminum Alloy
Cooling systemFanless
ColorBlack
Operating Temperature-20~65
Dimension150mm x190mm x 27mm
Weight800g

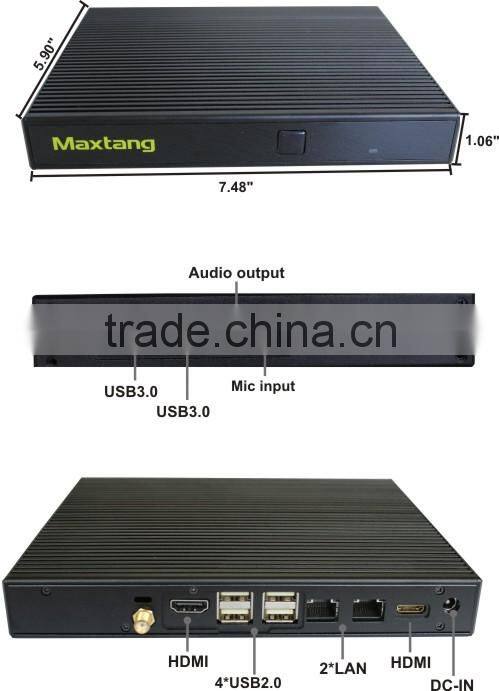

Mini PC Ports(fanless design, aluminum enclosure)



Industrial fanless mini computer with broadwell cpu

Packaging & Shipping

 12pcs mini computers in one carton. Each mini computer and its accessories(adapter, HDMI cable are included) are packed in different boxes.

Company Information

Founded in 2002, Shenzhen Maxtang Computer Company Limited (hereafter referred as Maxtang) is a pioneer immersed into low power consumption mini computer barebone and mini-itx motherboard designing, researching and manufacturing. Equipped with dozens of experienced engineers in R&D department, Maxtang works closely with its customers to provide them a quicker time-to-market and best operating experience.

With its close cooperation with Giants like Intel, AMD, Nvidia and VIA, Maxtang has its own production lines and has launched an extensive portfolio ranging from mini itx motherboards, mini computers and industrial computers under its own brand Maxtang. Its products are widely used in applications like home, office, school system, data communication, hotel, KTV, AIO, digital signage, banking, medical POS and so on.

Years of exprerience of making mini pc and mini itx motherboard enables Maxtang be quick to market requiremnets, and be flexible in designing and manufacturing.
