Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | NU-LIFT |
Model Number: | CDD1516, CDD1524, CDD1529, CDD1531, CDD1533 | Dimension(L*W*H): | 1640x1080x2000mm | Certification: | CE |
Warranty: | One Year | After-sales Service Provided: | Overseas third-party support available |
Product Description
Heavy duty range for tough application.
Top quality electronic control system from Curtis.
Without stand platform and arm rest
Both AC and DC are available.
Model | CDD1516 CDD1516AC | CDD1524 CDD1524AC | CDD1529 CDD1529AC | CDD1531 CDD1531AC | CDD1533 CDD1533AC | |
Capacity | (kg) | 1500 | 1500 | 1500 | 1500 | 1500 |
Lifting Height | h3(mm) | 1600 | 2450 | 2900 | 3100 | 3300 |
Min.Fork Height | h(mm) | 90 | ||||
Load Centre | C(mm) | 600 | ||||
Fork Length | I(mm) | 1150 | ||||
Fork Width | M(mm) | 540 | ||||
Travelling Speed |
| Without Load5.5km/h, With Full Load 4.8km/h | ||||
Lifting Speed | Without Load144mm/s, With Full Load 95mm/s | |||||
Lowering Speed | Without Load65mm/s, With Full Load 150kmm/s | |||||
Motors Travelling |
| 1.2KW/24V | ||||
Motors lifting |
| 2.2KW/24V | ||||
Battery /Charger | 200 Ah/24V, 20A/24v | |||||
Traction Battery(option) |
| 240Ah/24V | ||||
Front Roller | (mm) | 78×70 | ||||
Rear Roller | (mm) | 150×75 | ||||
Drive Wheel | (mm) | 250×80 | ||||
Net Weight | (kg) | 624 | 680 | 702 | 715 | 724 |

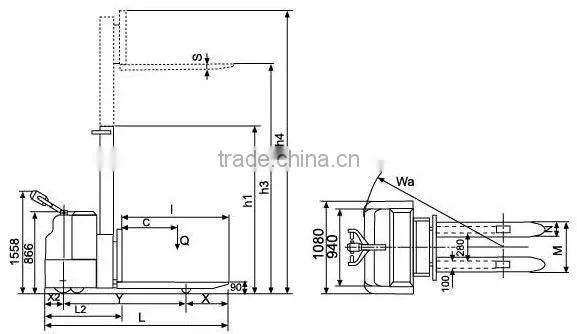

Dimension | X | 460 | ||||
S | 56 | |||||
X2 | 200 | |||||
Y | 1270 | 1270 | 1270 | 1270 | 1270 | |
L2 | 780 | 780 | 780 | 780 | 780 | |
L | 2424 | 2424 | 2424 | 2424 | 2424 | |
N | 160 | |||||
h1 | 2090 | 1800 | 2025 | 2125 | 2225 | |
h4 | 2244 | 3094 | 3544 | 3744 | 3944 | |
B | 940 | 940 | 940 | 1080 | 1080 | |
Wa | 1540mm |
