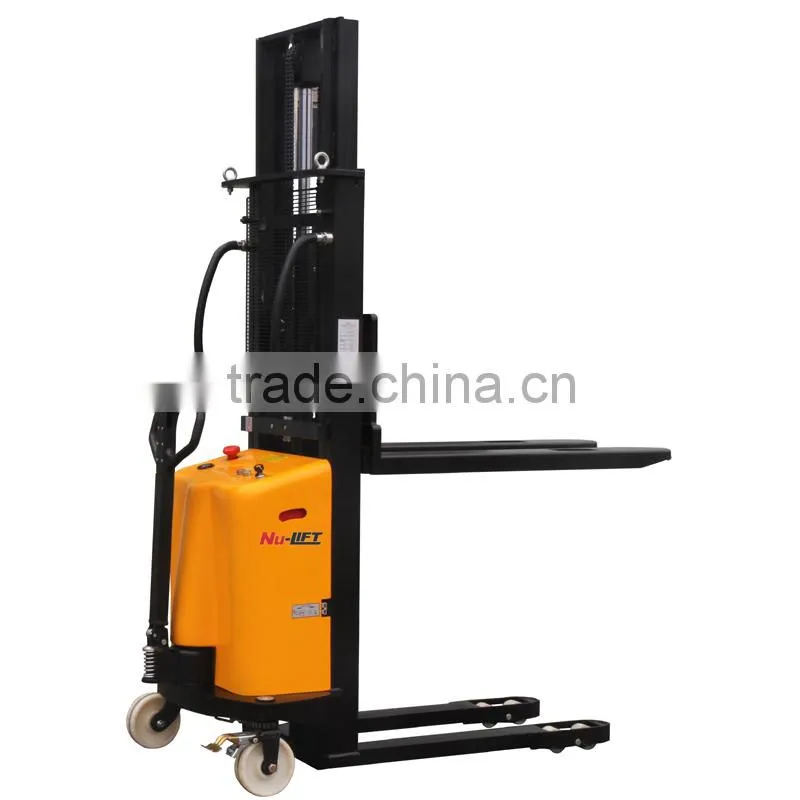

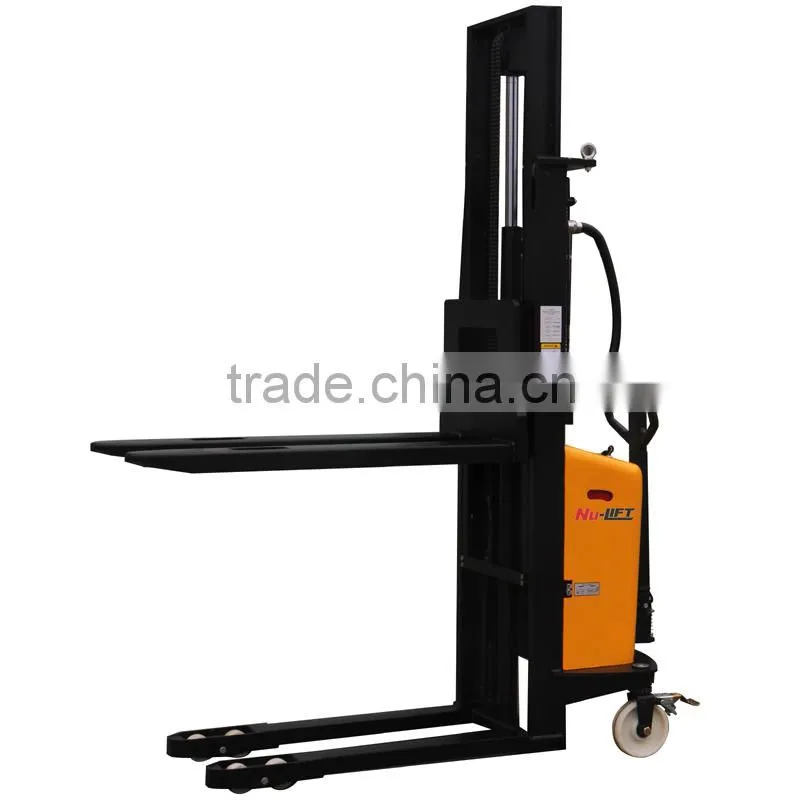

Semi Electric Hydraulic Forklift Stacker
USD $1,200 - $2,000
/ Piece
2 Pieces(Min.Order)
- 2000 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
-
BENE 45 ton reach stacker 45ton container lift truck with Cummins VOLVO engine DANA transmission
-
45ton Container reach stacker provider vs Linde Hyster 45ton container stacker price
-
Chinese 40ton forklift BENE 40 ton container tippler for 20ft container loading and unloading material
-
Fanuc robot M-20iA range 1811mm load 20kg cutting manipulator intelligent sorting machine
-
Chinese BENE 40ton to 42ton fork loader for 24ft container lifting 42ton container tippler
-
Chinese container reach stacker manufacturer vs Sany 45ton container lift truck Hyster 45 ton container stacker price
Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | NU-LIFT |
| Model Number: | PM1016, PM1025, PM1033, PM1516, PM1525, PM1533 | Dimension(L*W*H): | 1807x810x2025mm | Certification: | CE |
| Warranty: | One Year | After-sales Service Provided: | Overseas third-party support available |
Product Description
Hand-pushed travel, electric powered lift.
Low operating cost and small operating space.
For stacking, moving pallets for short distance.
Plastic handle surface is more comfortable.
10# mast steel, adjustable tilt angle of forks.
Maintenance free battery, external charger.
Integral strong chassis with alloy steel legs.

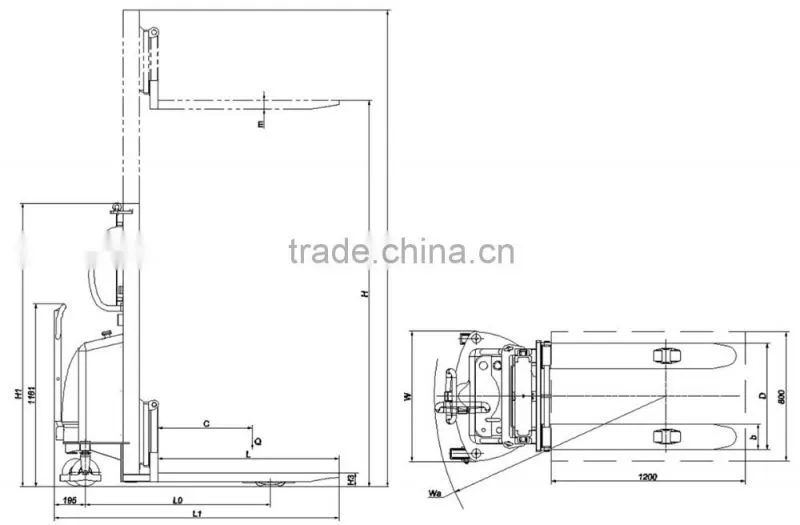

| Model | PM1016 | PM1025 | PM1029 | PM1031 | PM1033 | |||
| PM1516 | PM1525 | PM1529 | PM1531 | PM1533 | ||||
| Driving style | Pedestrian | |||||||
| Load capacity | Q | kg | 1000/1500 | |||||
| Load center | C | mm | 600 | |||||
| Overall length | L1 | mm | 1807 | |||||
| Overall width | W | mm | 810 | 810 | 810 | 910 | 910 | |
| Min. overall height | H1 | mm | 2125 | 1800 | 2025 | 2125 | 2225 | |
| Fork dimension | L×b×m | mm | 1150×160×56 | |||||
| Outside width of forks | D | mm | 560/660 | |||||
| Base distance | L0 | mm | 1170 | |||||
| Wheel material | Nilon or PU | |||||||
| Front wheel size | mm | φ82×80/φ78×70 | ||||||
| Steering wheel size | mm | φ180×50 | ||||||
| Min. steering radius | Wa | mm | 1435 | |||||
| Min. width of aisle | mm | ≥2370 | ||||||
| Max. height of forks | H | mm | 1600 | 2450 | 2900 | 3100 | 3300 | |
| Max. overall height | H2 | mm | 2172 | 3022 | 3472 | 3672 | 3872 | |
| Min. height of forks | H3 | mm | 90 | |||||
| Brake type | Mechanical | |||||||
| Power of lift motor | Kw | 1.6 | ||||||
| Battery capacity/voltage | Ah/V | 120/12 | ||||||
| Weight of battery | kg | 30 | ||||||
| Net weight(without battery) | kg | 376 | 416 | 436 | 446 | 456 | ||
| kg | 380 | 420 | 440 | 450 | 460 | |||
