Home > Manufacturing & Processing Machinery > Lifting Equipment > Stacker & Reclaimer > Hand Winch Forklift Type Stacker With Lifting Height 1560mm

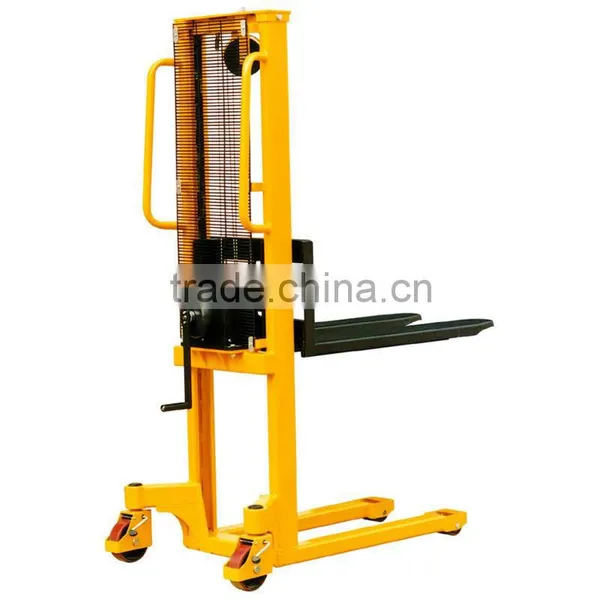

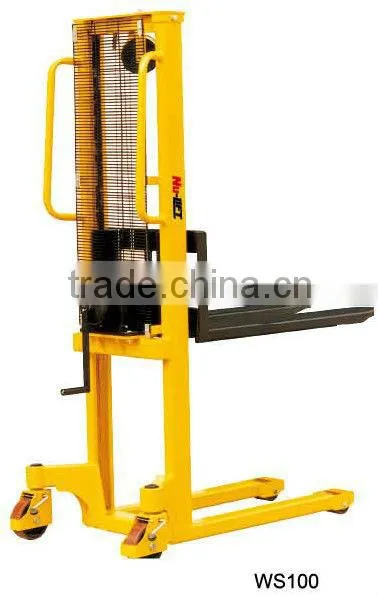

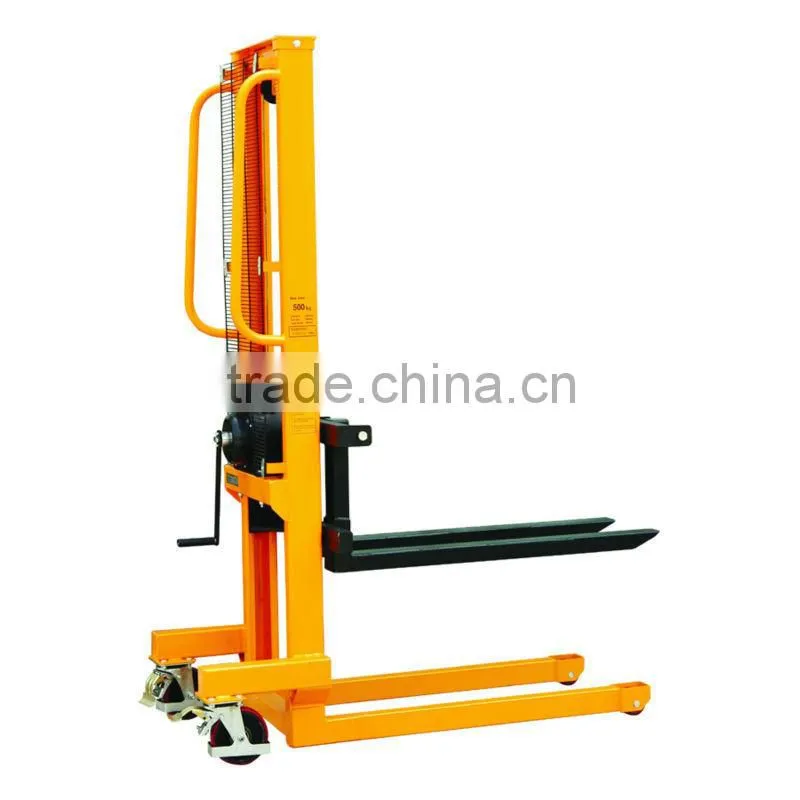

Hand Winch Forklift Type Stacker With Lifting Height 1560mm
US$ 250 - 500
MOQ: 4 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
NU-LIFT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Hand Lifting Stacker With Straddle LegUS$ 300 - 600MOQ: 4 Pieces -
Hydraulic Manual Fork Type Pallet Lifting StackerUS$ 300 - 500MOQ: 4 Pieces
-
Mini Winch Type Fork Lift Stacker 150KG CapacityUS$ 150 - 300MOQ: 4 Pieces
-
Aluminum Hand Winch Fork Lifting StackerUS$ 250 - 500MOQ: 4 Pieces
-
Single Mast Forklift Euro Pallet Stacker 1000KG CapacityUS$ 250 - 400MOQ: 4 Pieces
Condition
New
Place of Origin
Jiangsu, China
Brand Name
NU-LIFT
Model Number
WS25, WS50, WS100
Dimension(L*W*H)
1325x725x2030mm
Certification
CE
Warranty
One year
After-sales Service Provided
Overseas third-party support available
Heavy duty "C" section mast.
Unique design of winch for easier and safe lifting.
Compact and service free design

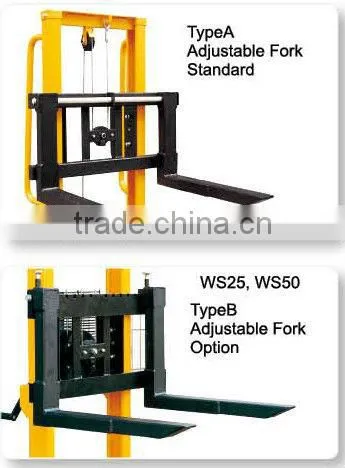

Adjustable fork width from 160mm to 690mm (WS25,WS50)
Two parking brakes on steering wheels
WS25, WS50
Model |
WS25 |
WS50 |
WS100 |
|
Capacity |
(kg) |
250 |
500 |
1000 |
Load Centre |
(mm) |
400 |
500 |
575 |
Max. Fork Height |
(mm) |
1560 |
1560 |
1500 |
Lowered .Fork Height |
(mm) |
90 |
90 |
88 |
Fork Adjustable Width |
(mm) |
160-690 |
160-690 |
540 Fixed |
Fork Width |
(mm) |
60 |
70 |
160 |
Fork Length |
(mm) |
800 |
1000 |
1150 |
Effort Force to Rated Load |
(mm) |
100 |
120 |
100 |
Lifting Height per stroke |
(mm) |
40 |
22 |
9.5 |
Ground Clearance |
(mm) |
18 |
18 |
24 |
Min. Turning Radius(outside) |
(mm) |
1075 |
1075 |
1250 |
Front Load Roller |
(mm) |
Φ80X47 |
Φ80X47 |
Φ80X94 |
Steering Wheel |
(mm) |
Φ150X40 |
Φ150X40 |
Φ150X50 |
Overall Size(LxWxH) |
(mm) |
1325X725X2030 |
1325X725X2030 |
1600X725X1930 |
Net Weight |
(kg) |
140 |
146 |
182 |
