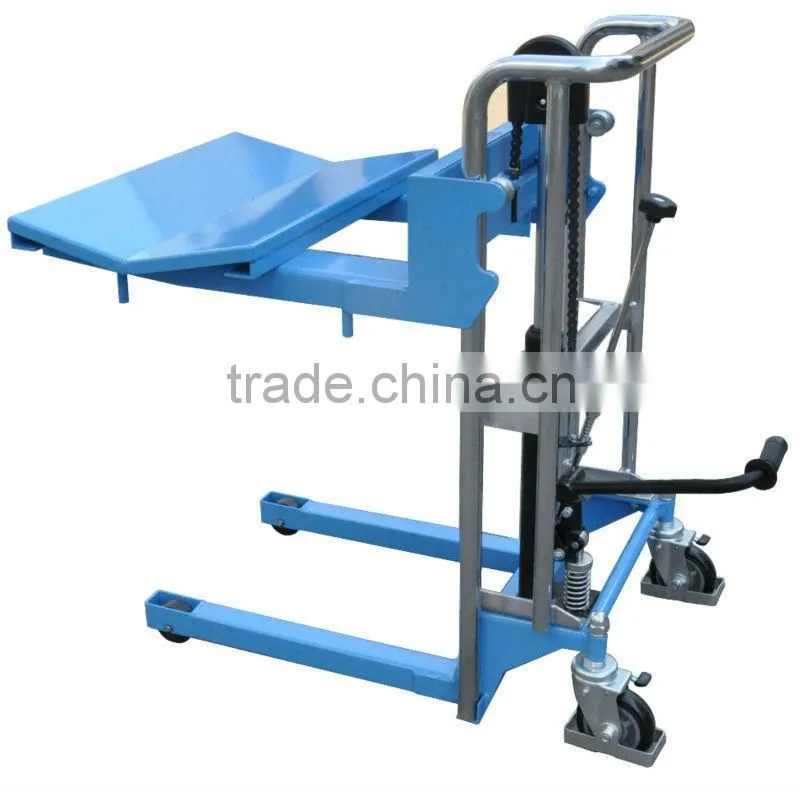

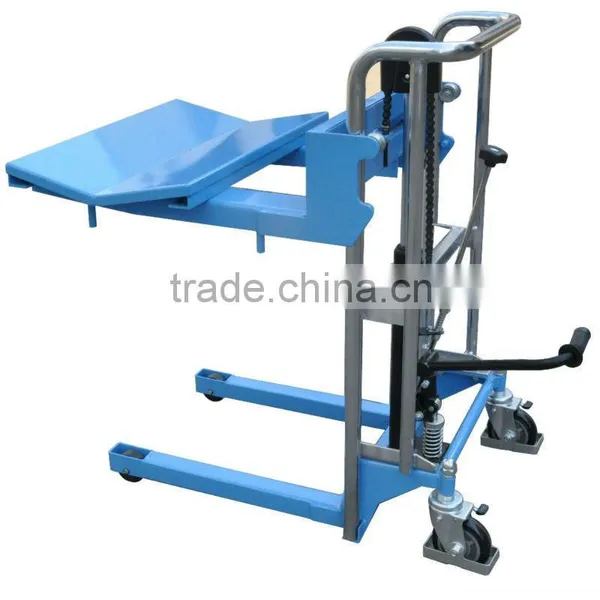

V Shape Plate Hydraulic Foot Pedel Reel Lifting Stacker
US$ 250 - 350
MOQ: 4 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
NU-LIFT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Wide Support Leg Fork Type Lifting StackerUS$ 250 - 350MOQ: 4 Pieces -
Manual Winch Type Work PositionerUS$ 120 - 250MOQ: 4 Pieces
-
Foot Pedel Type Manual Hydraulic Lifting Forklift Fork StackerUS$ 200 - 300MOQ: 4 Pieces
-
Foot Pedel Type Manual Hydraulic Platform StackerUS$ 200 - 300MOQ: 4 Pieces
-
Manual Hydraulic Roll and Reel Work Positioner LifterUS$ 300 - 500MOQ: 4 Pieces
Condition
New
Place of Origin
Jiangsu, China
Brand Name
NU-LIFT
Model Number
PFV4085, PFV4120, PFV4150
Dimension(L*W*H)
1010x700x1200mm
Certification
CE
Warranty
One year
After-sales Service Provided
Overseas third-party support available
With V shaped plate, used for roll.
Simple structure and light weight but easy operation
Simple and Easy Operation :
1) Lifting movement via collapsible foot pedal
2) Sensitive lowering through sinking valve
3) Hand push drive
4) Overload protection via pressure valve
Safe Operation and secure Working Conditions
Stable chassis with 2 frame rollers and 2 steering rollers
Long Service Lift
1) Robust construction
2) Hard chromium plated frame
3) Hardened chromium plated ram
Effortless Movement
1) Ball bearing rollers
2) Polyurethane rollers
V shaped plate size 700x450mm
| Model Adjustable Fork | PFV2085 | PFV2120 | PFV4085 | PFV4120 | PFV4150 | |
| Capacity | (kg) | 200 | 200 | 400 | 400 | 400 |
| V Plate Height Max | (mm) | 850 | 1200 | 850 | 1200 | 1500 |
| V Plate Height Min | (mm) | 140 | 140 | 140 | 140 | 140 |
| Load Roller | (mm) | 75 | 75 | 75 | 75 | 75 |
| Steering Wheel | (mm) | 125 | 125 | 125 | 125 | 125 |
| Net Weight | (kg) | 60 | 65 | 75 | 81 | 85 |
