Mobile Slaughter Unit
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Cattle
Place of Origin:
Uttar Pradesh, India
Payment & Shipping
Payment Methods:
Port of Shipment:
New Delhi
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Modular Slaughter Equipment Poultry Slaughter Unit Farm Machinery Suit for Small Farm Slaughter on Your Own FarmUS$ 85,000 - 90,000MOQ: 1 Set -
Mobile Slaughter Machine Modular Slaughter Equipment Poultry Slaughter Unit Small Sluaughter by Yourself on Your FarmUS$ 85,000 - 90,000MOQ: 1 Set
-
Mobile Slaughter Equipment Cattle Slaughter Equipment Poultry Slaughter Unit Hen Duck Profession Production Small Sluaughter SetUS$ 85,000 - 100,000MOQ: 1 Set
-
Turkey Slaughter Equipment Cattle Slaughter Equipment Poultry Slaughter Unit Hen Duck Profession Production Cheapest PriceUS$ 85,000 - 100,000MOQ: 1 Set
-
Ostrich Slaughter Equipment Cattle Slaughter Equipment Poultry Slaughter Unit c Profession Production Cheapest PriceUS$ 85,000 - 100,000MOQ: 1 Set
Condition
New
Application
Cattle
Place of Origin
Uttar Pradesh, India
Brand Name
MBT
Model Number
MSU
Voltage
440
Dimension(L*W*H)
36*8*13.5
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
The trailer is divided into three sections, mechanical/storage, hanging carcass cooler, and processing from front to rear.
Mobile Slaughter Unit

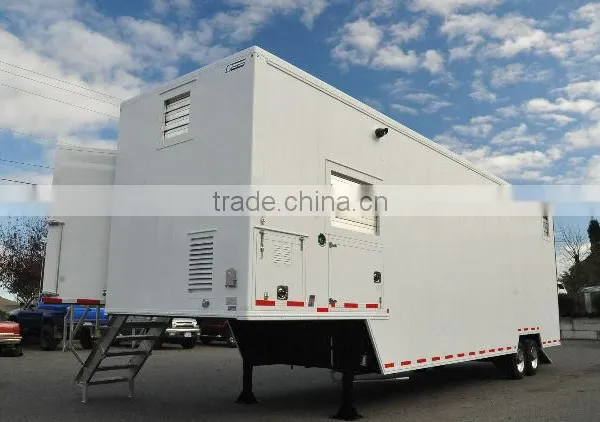

- 1. Standard Vehicle / Unit
- Horse Style, Z type 36 Ft. Standard Trailer
- Wheel and Excel for low Profile interior floor Deck
- Trailer fitted with 2 Set of Excel; excel fitted with single pare of 10.00R20 Radial Tier
- Overall Dimensions: 36 x 8 x 13.5 :: L x W x H : Ft.
- Length: Drop wall to Rear: 28 Ft.
- Length: Front to Drop wall: 4 Ft.
- Nominal Inside Height : 11.5 Ft.
- 2. Parts of Unit
Part – 1 : 8 Ft. + Part – 2 : 11 Ft. + Part – 3 : 17 Ft. = Total 36 Ft.
The trailer is divided into three sections, mechanical/storage, hanging carcass cooler, and processing from front to rear.
Part – 1 Mechanical Area
Part – 2 Hanging Carcass Cooler
Part – 3 Processing Area
- 3. Mechanical Area
Diesel Generator Gas & Water Line Cooling & Other Equipments
Refrigeration Unit Side Stairs Storage Bin & Gas Geyser
- Ceiling Insulated
- Aluminum Floor
- Water Pressure Pump
- Flore Drain or Flush Door Sill
- Fluorescent Lights with Switch.
- Ventilation Opening for Exhaust Fan
- Overall Length of this Area is about 8 Ft.
- Power 220 Volt Power Output – 2 Nos.
- Ventilation Opening for Cooling air Inlet
- Foldable Stairs to go inside the mechanical Area
- Refrigeration Compressor for Cooler Evaporator.
- Curb Size door wide 36” Width & 6 Ft. In Height.
- Acid Wash Tank with Pressure Pump (Optional)
- Ceiling & Separating wall finished with plywood skin
- Solid Permanent Wall separating this area from cooling area.
- Water Tank capacity 1,200 Ltr. With Automatic Level Controller
- Storage Area for Small tools, Trolley, beef & Lamb Cradles and Meat Saw
- L.P.G. Gas instant water Geyser / Electric instant Water Geyser for Hot Water
- The Length of Area is from front to drop wall is 4 Ft. & 4 Ft. length of Drop wall also.

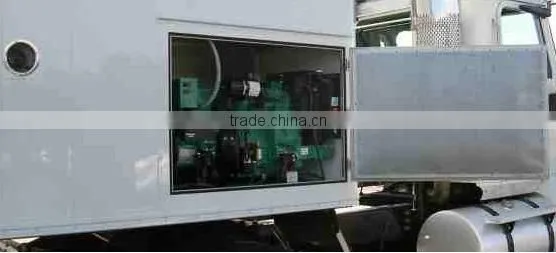

- Diesel Power Generator as per Customer Choice up to 5 to 30 KVA (Optional)
- Electric Power Inverter with 1.2 KVA output for Exhaust Fan & Fluorescent Light Backup during non Availability of Power.(Optional)

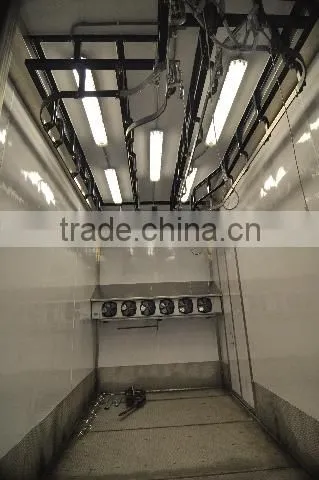

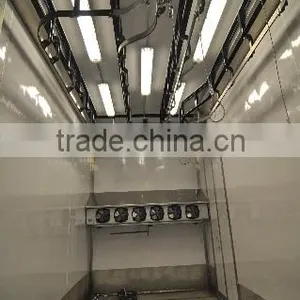

- 4. Hanging Carcass Cooler Area
Evaporating Condenser Inside Cooler Area Central rail & Guide Rail
Meat In Cooling Area
- Temperature of Cooling area is + 4 Deg. Cel.
- Cutout in bulkhead above doors for meat rail.
- Aluminum floor / stainless steel Flore (Optional)
- S.S. hooks in after corner for hanging Meat hooks.
- Full Length by 11 Ft. Directly after Mechanical Area.
- A Center rail will connect with a single rail in processing area.
- Ceiling, Wall and Door covering with 100 mm Thick PU Panel Insulation.
- Rail system capable to supporting an 3,500 – 4,000 Kg. Load of carcasses.
- 4 Nos., Fluorescent lights fixture cold weather proof. Switch located at processing area.
- Insulation panel available with Aluminum Sheet or Stainless Steel (Optional) sheet in-side cooling Area.
- Meat rail system with a support structure built into walls and across ceiling to mount a 4 rail meat rail system to.
- Double door 24” wide each, double sealed with heavy duty Steel frame and no lip on bottom of door for cooler cleaning. Latches to open door from both sides.

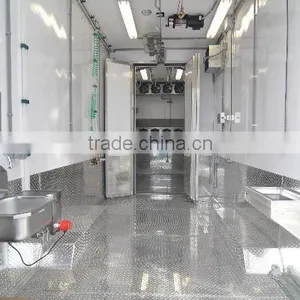

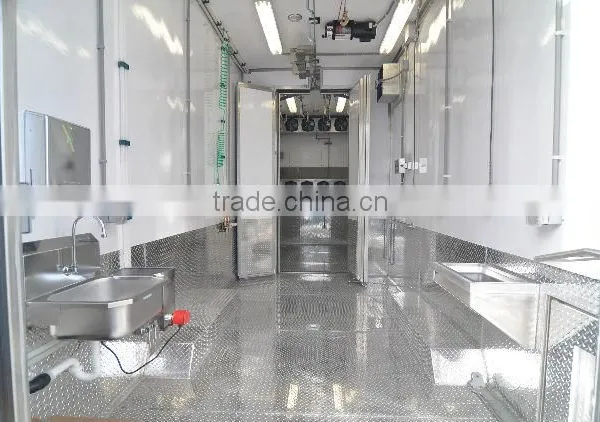

- 5. Processing Area

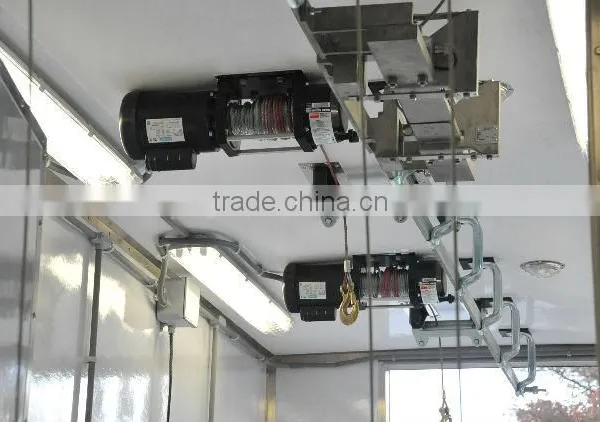

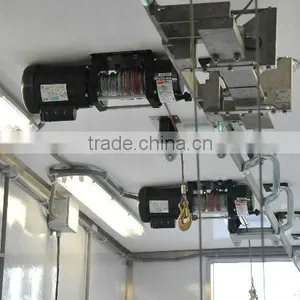

Processing Area Air Curtain Head Inspection Rack Cable Winches
Electronic Weighing Scale Sink & Paper Towel Dispenser Hook Rail Offal Door
Meat Saw Back Ramp Water Hoist Organ Inspection Tray
- Exhaust fan & Intake air vent
- Trolley storage rail mounted on wall
- Inspection tray on side wall for meat organ
- Fluorescent lamp electric instant killer (Optional)
- Aluminum floor / Stainless steel Flore (optional).
- Wheel well covers to be food grade stainless steel.
- Heavy duty frame and flush with floor for trailer clean out.
- Hose station with hot & cold water and 8 Mtr. Hose and nozzles.
- Head Inspection racks mounted on rear wall curb side on rear door
- 2 Nos. Duplex 220 Volt outlet each side 1.5 Mtr. Above from Flore.
- Door with latch to open from each side and secure cam lock closer for travel.
- 4 Nos., Fluorescent lights fixture. Switch located at rear of trailer / Back door.
- 2 cargo rings flush mounted in floor, 3 ft forward and 8 ft forward of rear door.
- 30” x 30” access door flush with floor, curb side, with latch to open from each side.
- Rear Door 4 Ft wide full height, centered. Or 2.5 Ft. x 2 Nos. full height, Double door
- One two in one hot & cold water mixer dispenser near by sink for multipurpose works.
- 2 Nos. Full Width Drin sumps with floor level grating. One at rear & near door into cooler.
- One Sink station, Stainless steel paper towel dispenser, hanging hot air dryer, Liquid shop dispenser with hot & cold water dispensing facility.
- Removable ramp 4 feet wide & 5 Feet Long in 2 sections attach to rear of trailer. Flush with Flore and allow rear door to be opened and closed with ramp in place
