[ Long standby personal GPS tracker with GSM Gprs , gps ]

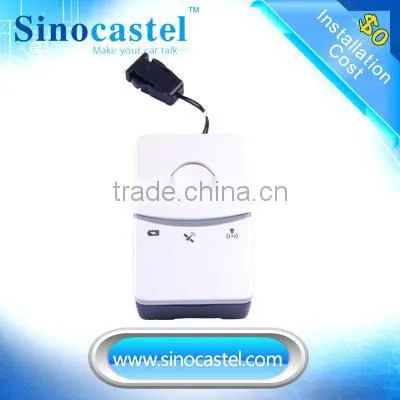

PT-718 is an individual GPS tracker developed by CASTEL. It adopts 2 communication modes: GPRS and SMS. PT-718 can be precisely located, easily operated. It is easy to take with good appearance. It adopts terminal+ APP+ cloud system to manage GPS data scientifically, which suits for the old& children in family, community and school.
Timing positioning: In normal working mode, tracker can upload GPS information to
APP& cloud by preset time interval. The emergency contactor bound with tracker can
monitor in real time.
---------------------------------------------------------- Features ----------------------------------------------------------
- Real-time positioning
- Timing position
- Support Geo-fencing alert
- SOS panic buttons
- Free Android and IOS app.
- Low standby time with low energy consumption technology
---------------------------------------------------------- Specifications----------------------------------------------------------
Electrical surroundings parameters |
Battery |
Voltage 3.7V,Currency 1200mAh |
Max.currency |
~260mA |
|
Normal currency |
PEAK(120mA)while GPRS DATA EMISSION OTA |
|
Sleep mode currency |
average(5mA),min(80uA) |
|
Charge currency |
400mA |
|
Charge time |
About 2H |
|
GPS receiver |
Channels |
66 |
GSM frequency |
1.57542GHz(L1) |
|
RX code |
C/A |
|
Cold start |
≤50S |
|
Warm start |
||
Hot start |
<3S |
|
horizontal ensitivity |
5M CEP without SA |
|
Speed sensitivity |
0.1m/s without SA |
|
Angle sensitivity |
5m(according to the environment) |
|
Capture sensitivity |
-120 |
|
Tracking sensitivity |
-135 |
|
update frequency |
1 Hz |
|
GSMreceiver |
GSM/GPRS frequency |
GSM850/EGSM900/DCS1800/PCS1900 |
Communication protocol |
Embedded tcp/ip stack |
|
GSM850 |
-95 |
|
EGSM |
-99 |
|
DCS1800 |
-103 |
|
PCS1900 |
-102 |
|
Max. TX frequency |
CLASS4(2W)@GSM850,EGSM900 |
|
CLASS1(1W)@DCS1800,PCS1900 | ||
Indicator |
SOS button |
SOS (press more than 3secs) |
Power LED |
Red LED |
|
Charging:On | ||
First time start without location:On | ||
Position success:Off | ||
Press SOS : sharp blinking,1s on,1s off,lasting 20secs | ||
Low voltage:slow blinking:1s on.7s off | ||
GSM indicator |
Yellow LED register unsuccessful no blink,register success, blink every 2secs |
|
GPS indicator |
Green LED no blink without position,blink per 2secs when position |
|
Power button |
Pree button ON/OFF(every 3secs exchange the status) |
