Tachometer
FEATURES:
The Rugged and versatile Pocket Laser Tech is ideally suited for non contact, contact and linear speed measurement

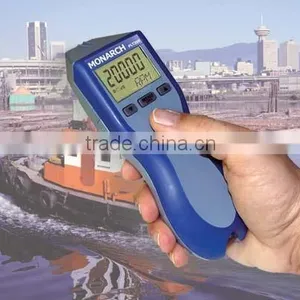

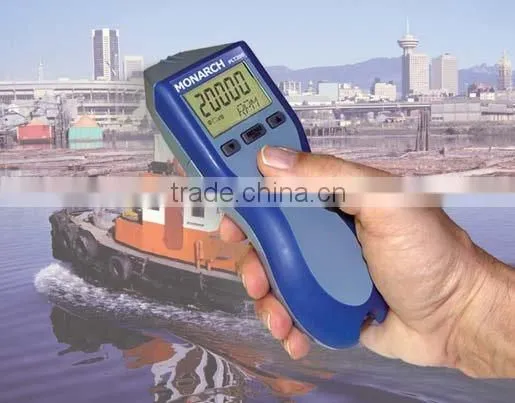

Pocket Laser Tech 200 PLT 200 is a digital, battery Powered Portable optical tachometer, which operates up to 25 feet from a reflective target using a class 2 laser light source. The ergonomic design allows safe, direct line of sight viewing of both the target and the display at the same time, while providing a non slip rubber surface for single hand operation.
Multi function for Pro Active Maintenance : its a 32 function tachometer / Rate meter, Totalizer/Counter and Timer (Stop Watch), which is Programmable in both imperial and metric rates, two Phono plug connectors for our optional Remote Contact Assembly (RCA) or Remote Sensors. The PLT 200 Also has a TTL compatible pulse output to trigger devices like Vibration data collectors or stroboscopes. The KIT is supplied complete with a remote contact assembly including concave and convex tips and a 10 cm linear speed wheel all in a latching carrying case.
TECHNICAL SPECIFICATIONS: | ||
Display |
5 Digits, 5 Alphanumeric LCD |
|
Range |
Optical: 5 ~ 200,000 RPM Contact:0.5 ~ 20,000 RPM |
|
|
||
Rates |
10cm Contact Wheel |
12 inch circumference Contact Wheel |
Inch/min |
1.969 to 78,740 IPM |
6.000 to 144,000 IPM |
Feet/min |
0.164 to 6,561.7 FT/M |
0.500 to 12,000 FT/M |
Yard/min |
0.055 to 2,187.2 YPM |
0.167 to 4,000.0 YPM |
Cm/min |
5.000 to 200,000 cm/M |
15.240 to 365,760 cm/M |
M/min |
0.050 to 2,000.0 M/M |
0.153 to 3,657.6 M/M |
Totalizer |
1-999,990 (events or length) |
|
Timer |
99:59.9 Min, sec, tenths |
|
Accuracy |
Optical:±0.01% of reading Contact:±0.05% of reading (rpm) |
|
Resolution |
0.001 to 10 RPM (range dependent) |
|
Operating Range |
2 to 25 (5cm to 7.62m), ±70° from perpendicular |
|
Memory |
Maximum, Minimum and Last |
|
Power |
(2) 1.5 VDC batteries (30 hours) |
|
Environmental |
5° to 40°C (40° to 105°F) 80% RH up to 31°C (88°F) |
|
Dimensions |
6.92 H x 2.4W x 1.6"D (17.58 x 6.10 x 4.06cm) |
|
Weight |
7 oz. (210 g) |
|
