Double-Wall Corrugated (Waving) Pipes Extrusion Line:
1) Application:

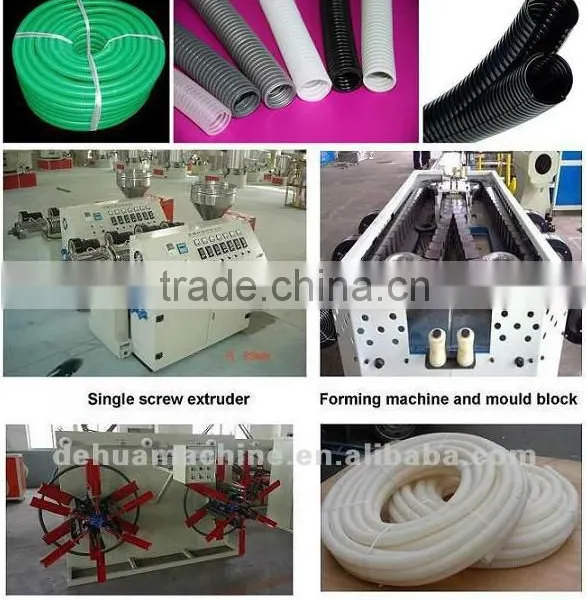

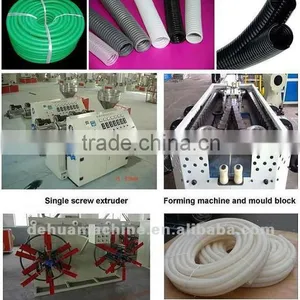

a) This machine consists of shaker, high speed mixer, cooling mixer, plastic
powder machine, conic double screw extruder, double wall corrugated pipe
shaping machine, plastic pipe enlarged machine, prilling machine, cooling
machine and air compressed machine
b) It is mainly used to produce PVC and PE double (single) wall corrugated pipes
2) Technology parameter:
a) Pipe diameter (mm): 90 - 500
b) Producing speed (m/min): 2 - 6
c) Central height of barrel (mm): 1,000
d) Mold quantity (pair): 60
e) Water pressure (MPa): 0.4 - 0.6
f) Cooling water temperature (oC): less than 12
g) Air pressure (MPa): 0.4 - 0.5
Wooden pedestal or wooden trunk
pipe extrusion line
corrugated pipe extrusion line
corrugated pipe production line
