Help CenterProfessional PVC Pipe Production Line
Related Products
Specifications
Professional PVC pipe production line1. Diameter: 50-200mm
2. Output: 150-200kg/h
3. Power: 80kw
4. Max speed: 5m/min
Professional PVC pipe production line
1. Diameter: 50-200mm
2. Output: 150-200kg/h
3. Power: 80kw
4. Max speed: 5m/min
Application:

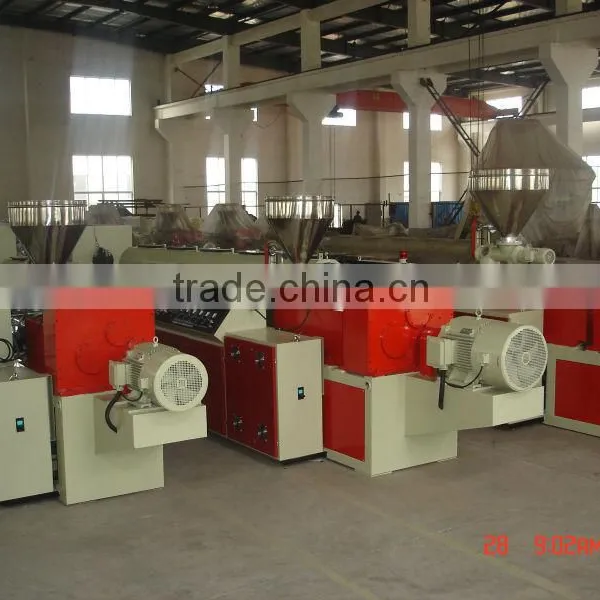

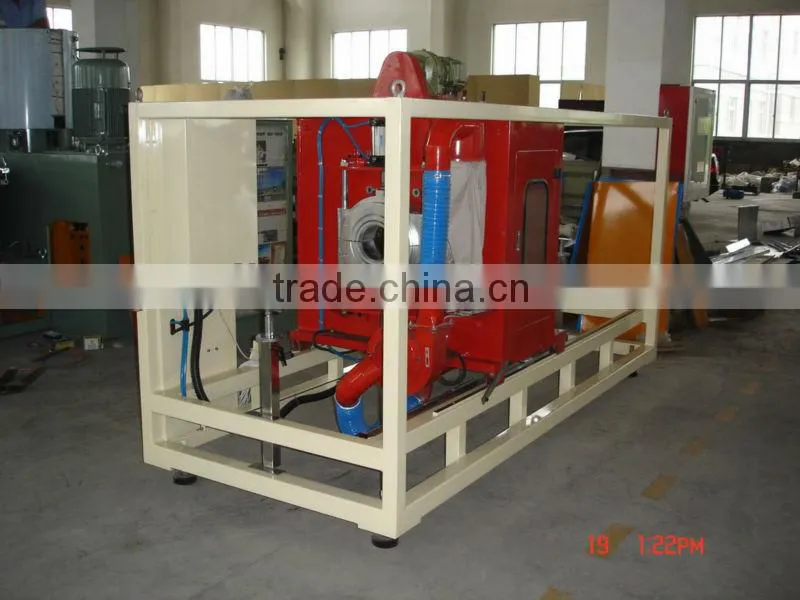

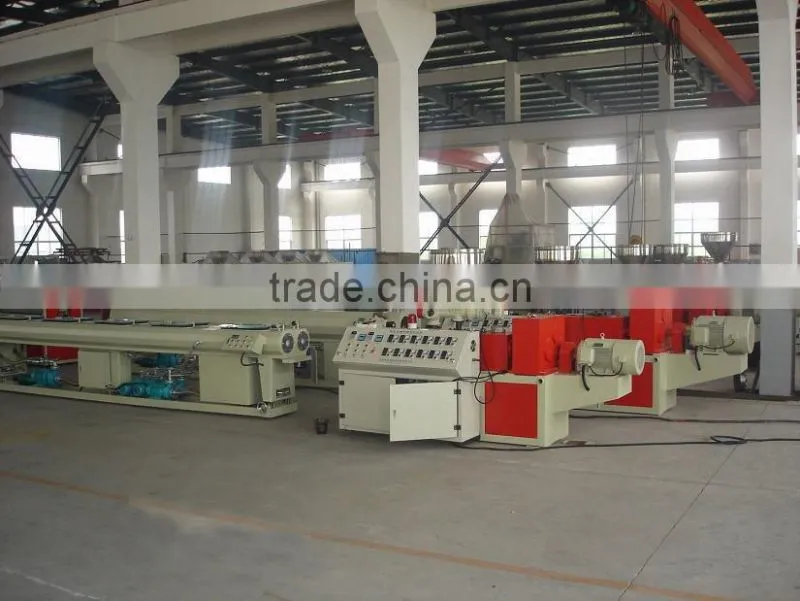

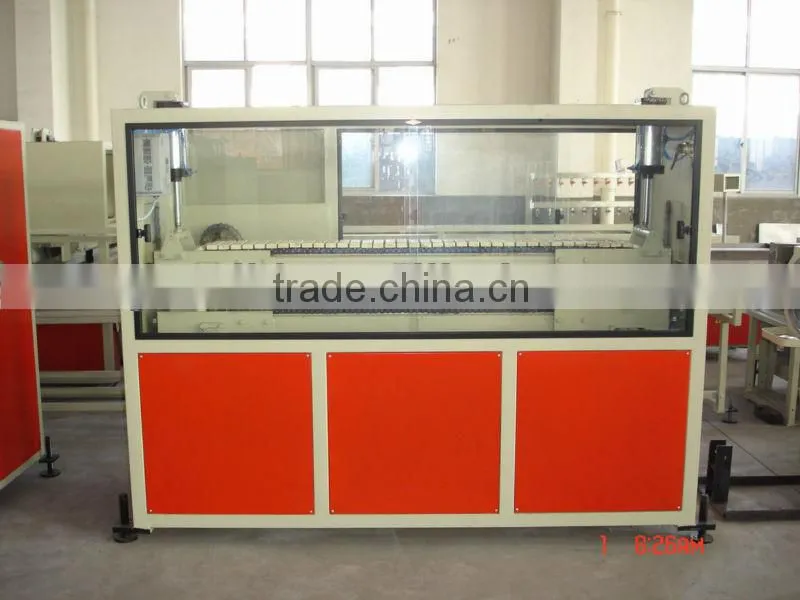

Diameter 16mm-620mm series PVC pipe production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional pl3mbing, cable laying etc, it also named PVC Pipe Production Line, PVC Pipe making machine. This PVC Pipe Extrusion Line is composed conical twin-screw extruder, vacuum calibration tank, haul off, cutter and stake etc. The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products. The haul off methods are two-claw, three -claw, four-claw, and six-claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency. Our company can also manufacture special pipe production lines. Spiral silencing pipe and core foaming pipe according to your requirements.
Technical parameters:
| Pipe Range | 16-63mm (single) | 16-63mm(double) | 75-160mm | 110-315mm | 315-630mm |
| Extruder type | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
| Motor power | 18.5KW | 37KW | 37KW | 55KW | 110KW |
| Capacity | 120kg/hour | 250kg/hour | 250kg/hour | 360kg/hour | 800kg/hour |
| Lineal speed | 12m/min | 10m/min | 6m/min | 3m/min | 1.2m/min |
