Specifications
1.For PVC, PE, LDPE, LLDPE, ABS, EVA, PS, PET,2.Cyclone seperator
3.Electrical control cabinet
Summarize of this Waste Plastic grinding machine :
The factory absorbed advanced foreign technology and developed series high-speed eddy-current multipurpose powder mill. The machine is an equipment of grinding micro-fine powder in plastic, mine, chemical, metallurgical and other industries, especially is used in grinding retrieved plastic-grain of thermoplastics PVC, PE. The practice and experience of plastic product factories shows that the chemical and physics functions of the products can keep all parameters of new raw material if adding 20%-30%retrieved plastic powder, so it is the best equipment for reducing cost, saving expense and solve plastic.
Technical Specifications of this Waste Plastic PVC/PE grinding machine :
Items |
Parameter |
Crushing chamber inside diameter |
Φ483mm |
ROTOR number |
3 |
Principal axis rotary speed |
2950rpm |
E1electrical machinery power |
37kw |
Crushing capacity |
180-280kg/h |
Figure dimension |
5900×1450×2900(MACHINE BODY) |
Weight |
1280kg |
Performance characteristics:
- The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double the ordinary.
- The use of newly designed professional bearings, and reached a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
- Installation and maintenance easily, open the door to cover clean-up.
- Milling process of the whole seal, without dust leakage.
- Full automated, automatic feeding, the materials and sorting.
- Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-80 mesh)
- The host used the water and wind double cooling system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, ground, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.

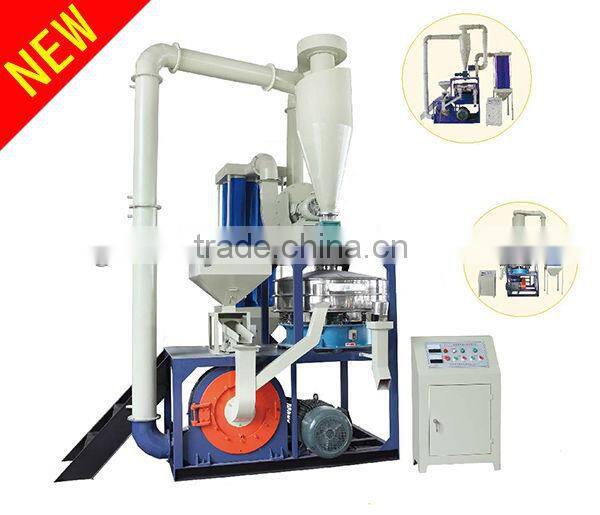

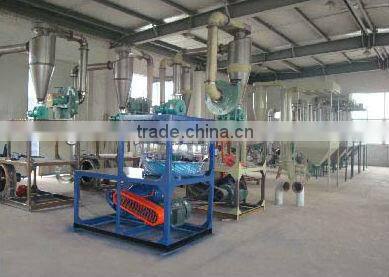

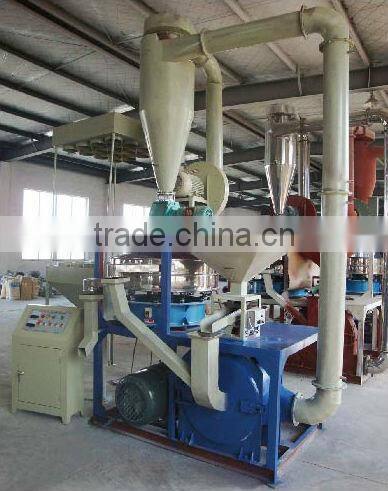

Belowed the some photo of this Waste Plastic PVC/PE grinding machine :
And the finsihed power which milled by the plastic grinding machine:
