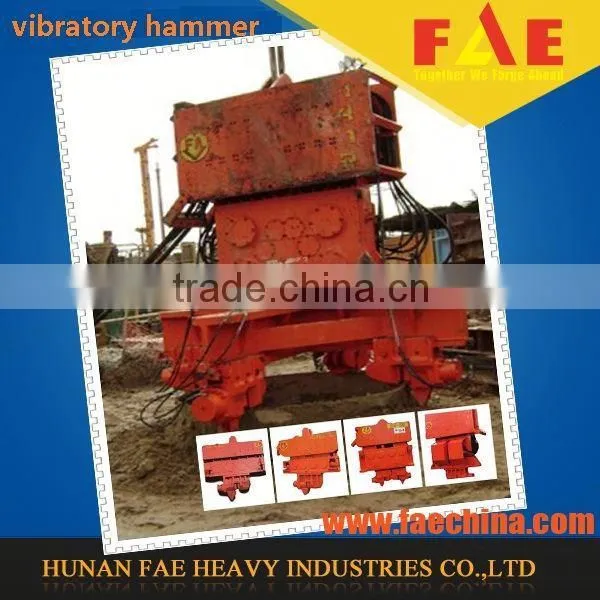

FAE VIBRATORY PILE HAMMER
What FAE Vibratory hammer could offer?
Hydraulic Vibratory Hammers is coupled with our FAV Hydraulic Powerpacks that are produced with innovations and improvements in mind for the benefit of end users.
These features are model dependant and subject to continuous improvement.
• Rexroth Hydraulic Pumps and Solenoids
All powerpacks are fitted with Rexroth Hydraulic Pumps and Solenoids as standard production.
• Parts commonality
All parts including hydraulic pumps and motors are easily available in the market.
• “Self-cool” Feature
Self-cooling feature upon activating the “Self-Cool” button.
• Digital Pressure Reading at Remote Control Pendant
Digital Pressure reading at remote control pendant for easy observation during operation.
• Oversized coolers
To cater for hot climatic and difficult working conditions.
• Environmental Friendly
Noise reduction structural frames and panels for sound proofing effects.
• Stackable Frame
Concealed exhaust silencer and container blocks at 8 corners enable stacking of powerpacks.
Container blocks also double up as lifting eyes.
• Hydraulic Tank with internal Sediment Tank
Segregated internal sediments tank for filtering of foreign particles in the hydraulic tank.
• External Fuel Tank and Hydraulic Tank Inspection Allocations
External inspections allocations are incorporated at fuel and hydraulic tank for ease of maintenance.
• Stainless steel latches and hinges
Stainless less steel panels latches and hinges for long lasting and weather resistant.

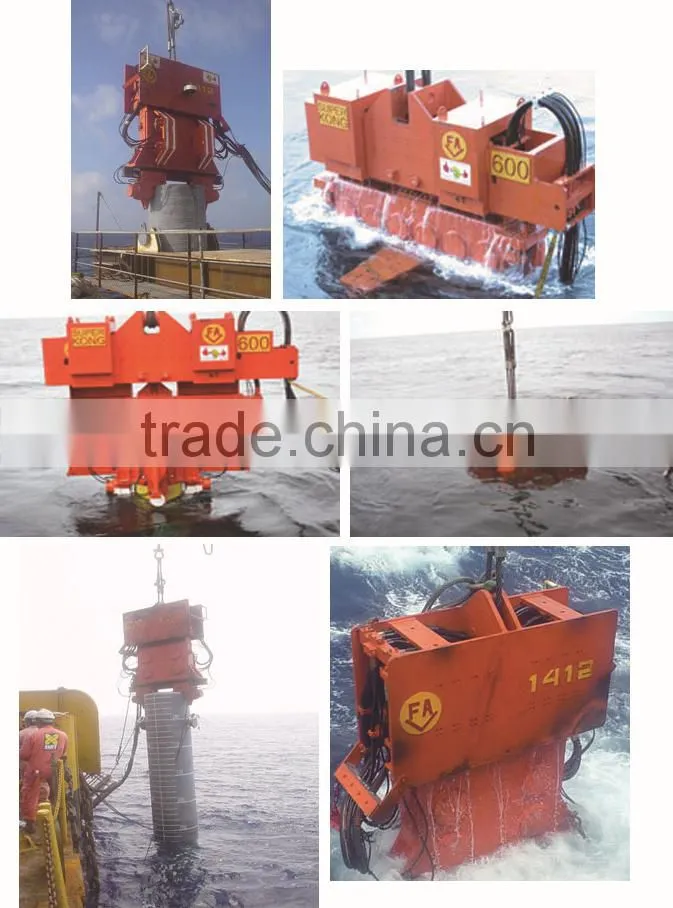

OFFSHORE UNDERWATER PILE INSTALLATION
FAV Offshore Equipment
provides hydraulic Vibratory hammers for underwater piles installation. The hydraulic vibratory hammers are speciallyprepared for submerged operations together with other necessary back-up spare parts and tools. It has a group of experienced professionals whom are familiar with offshore underwater piles installations using hydraulic vibratoryhammers. In addition, FAE also provides services for refurbishment and overhaul of marine winches, fabrication of specialized steel structures for offshore platform etc.

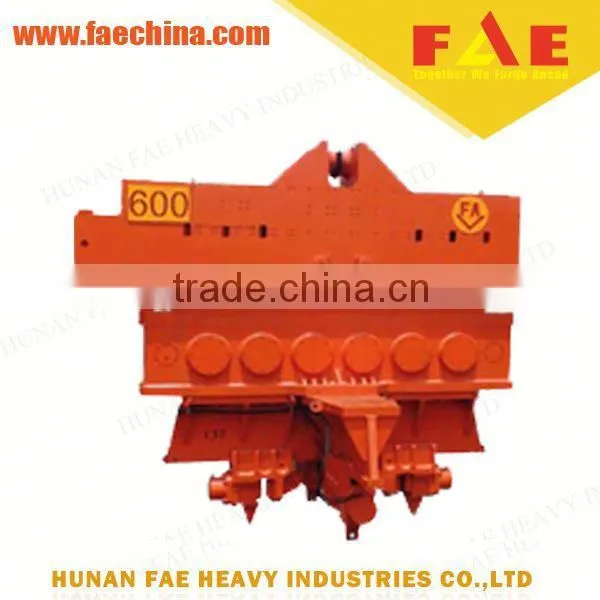

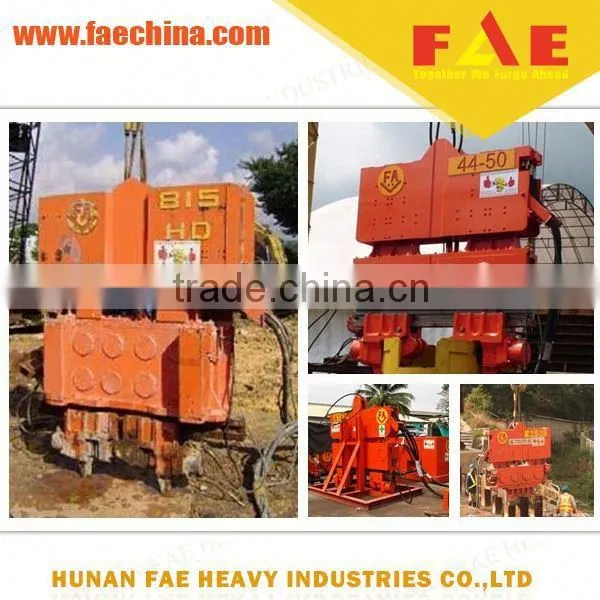

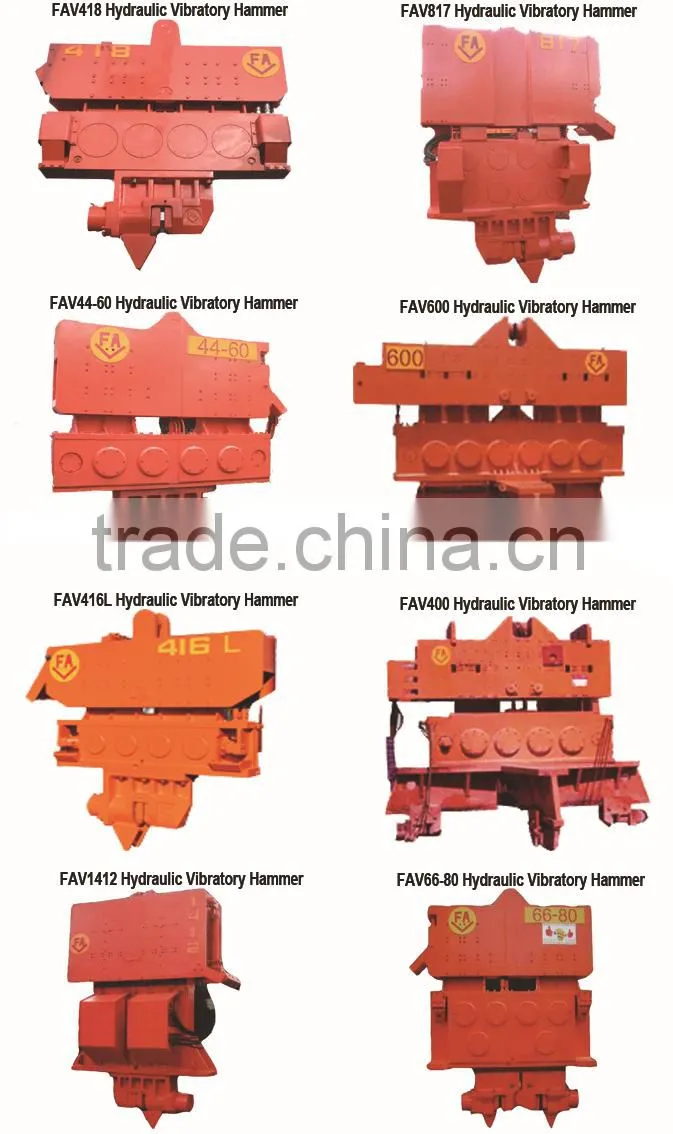

What are FAE vibratory hammr models?
| Technical Data | FAV416L | FAV418 | FAV44-60 | FAV66-80 | FAV817 | FAV1412 | FAV400 | FAV600 | |
| Eccentric moment | kgm | 26 | 27 | 51 | 77 | 51 | 116 | 150 | 231 |
| Frequency | vpm | 1600 | 1800 | 1800 | 1600 | 1700 | 1400 | 1400 | 1400 |
| Centrifugal force | kn | 972 | 1040 | 1818 | 2168 | 1621 | 2501 | 3203 | 4830 |
| Amplitude(dual clamps) | mm | 25 | 19 | 30 | 30 | 30 | 30 | 40 | 42 |
| Max line pull for extracting | kn | 355 | 588 | 710 | 710 | 454 | 1335 | 2224 | 2224 |
| Weight(no clamp no hoses) | kg | 3360 | 4300 | 5215 | 6920 | 6015 | 11700 | 16500 | 22500 |
| Non vibrating weight | kg | 1315 | 1534 | 1815 | 2065 | 1815 | 4720 | 900 | 11500 |
| Height(without clamp ) | mm | 11820 | 2010 | 2130 | 2540 | 2560 | 3810 | 2650 | 2650 |
| Length(inclu.hose chute) | mm | 2830 | 2550 | 2680 | 2650 | 2680 | 2415 | 3050 | 4600 |
| Width | mm | 430 | 330 | 560 | 560 | 560 | 1040 | 660 | 900 |
| Throat width | mm | 355 | 320 | 360 | 360 | 310 | 815 | 660 | 900 |
| Hydraulic hose length | m | 30 | 30 | 45 | 45 | 45 | 45 | 45 | 45 |
| Hydraulic hose weight(w/o oil) | kg | 385 | 385 | 770 | 770 | 770 | 1020 | 1020 | 1020 |

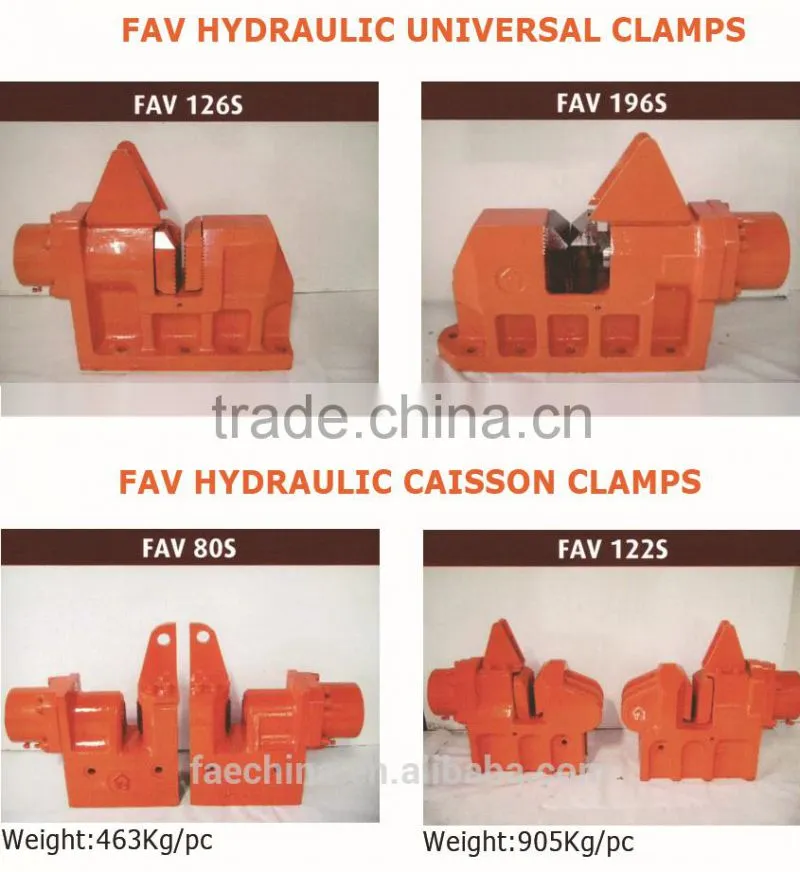

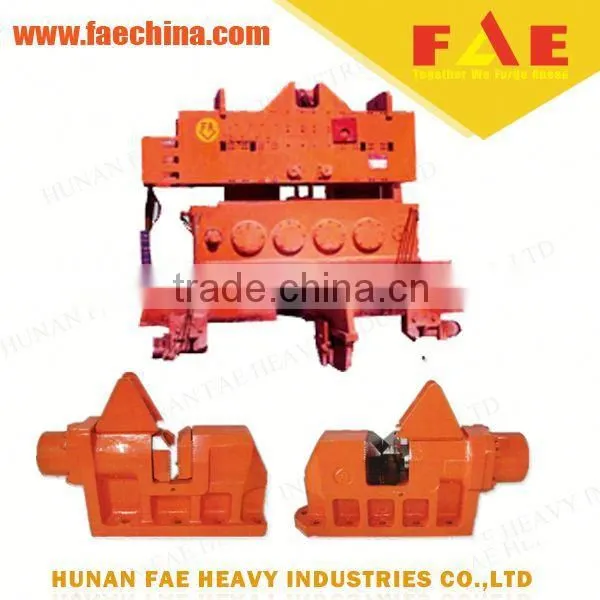

What are FAE vibratory hammer clamps?

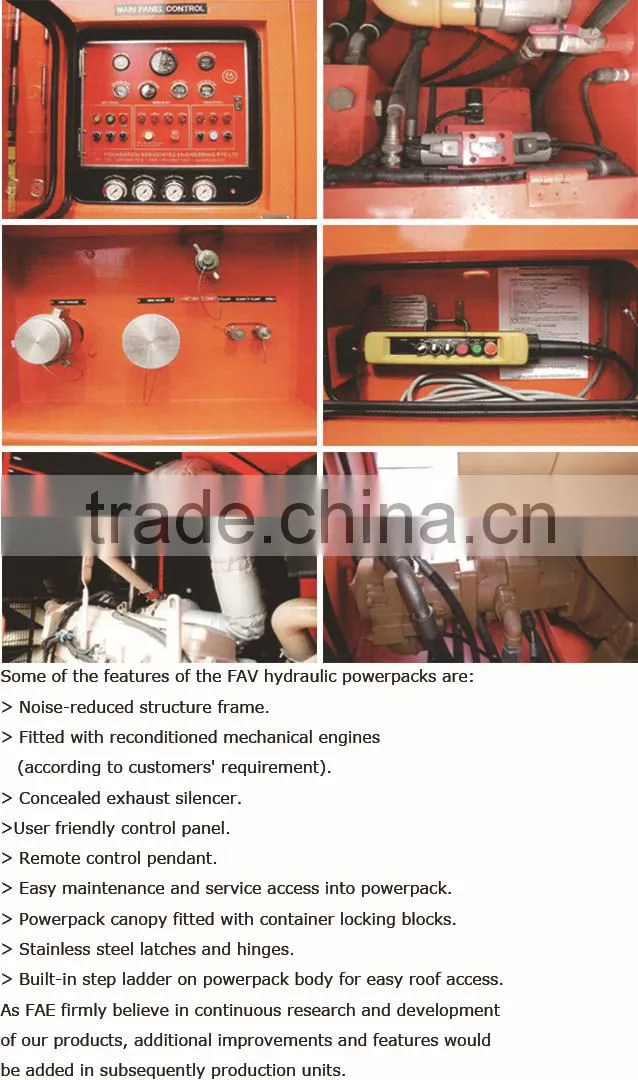

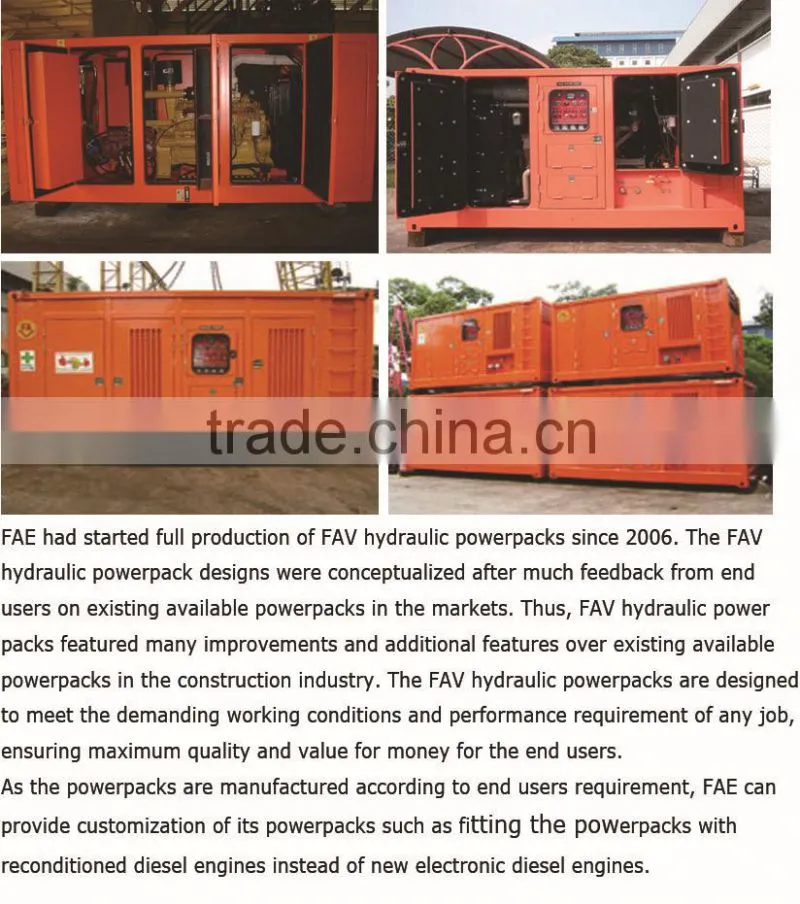

What are FAE vibratory hammer its powerpack ?
| FAV375 | FAV400 | FAV600 | FAV900 | FAV1200 | |
| kgm | John Deere 6135 | John Deere 6135 | John Deere 6135 | Caterpillar C18 ACERT | Caterpillar C27 ACERT |
| litres/min | 390 | 435 | 630 | 900 | 128 |
| bar | 340 | 340 | 340 | 340 | 340 |
| HP | 375 | 400 | 600 | 765 | 1050 |
| rpm | 2100 | 2100 | 2100 | 2100 | 2000 |
| rpm | 2100 | 2100 | 2100 | 2100 | 2000 |
| mm | 3600(L)×1500(B)×1800(H) |
3770(L)×1650(B) ×2200(H) |
3800(L)×1650(B) ×1900(H) |
7800(L)×2150(B) ×2540(H) |
4470(L)×2230(B) ×2560(H) |
| TON | 5 | 5 | 7 | 10 | 12.8 |
| Conceal exhaust silencer and 4 lifting eyes | |||||
| Noise reduction panels | |||||
| External fuel & hydraulic tank inspection allocations | |||||
CUSTOMIZED HYDRAULIC POWER PACK

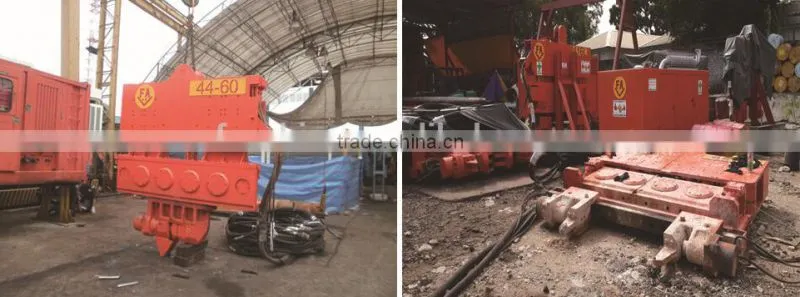

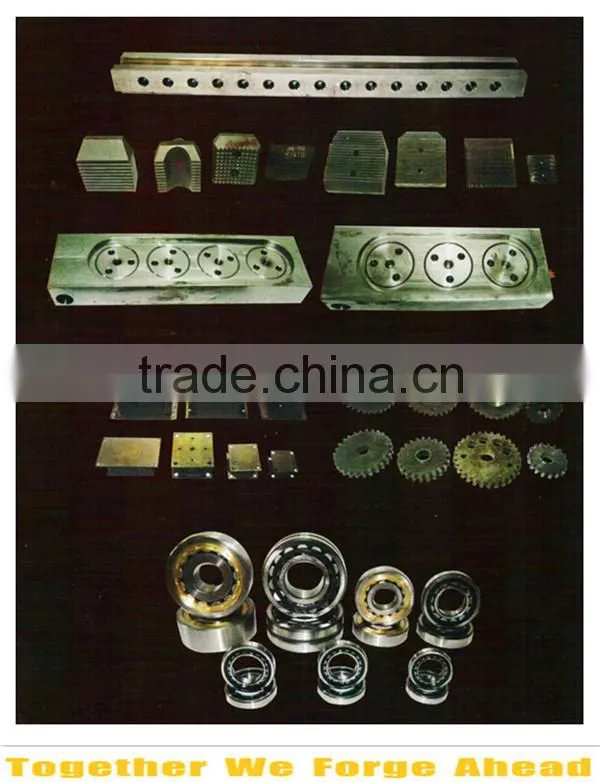

What are FAE vibratory hammer components?

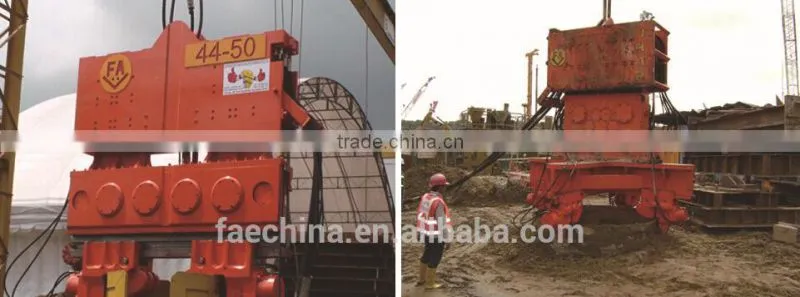

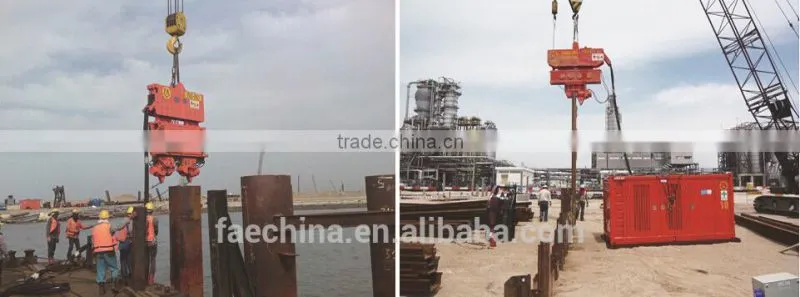

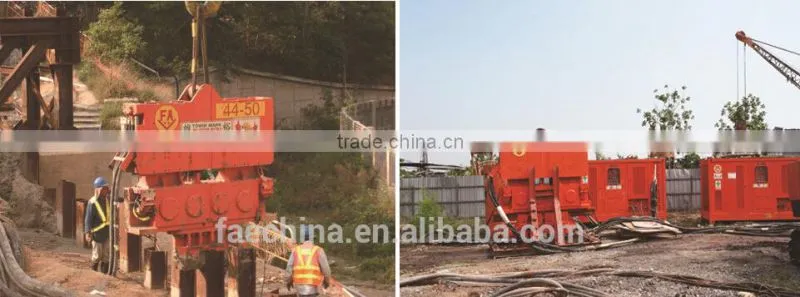

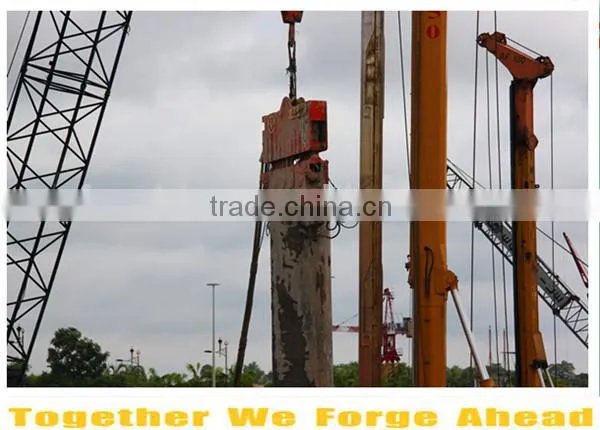

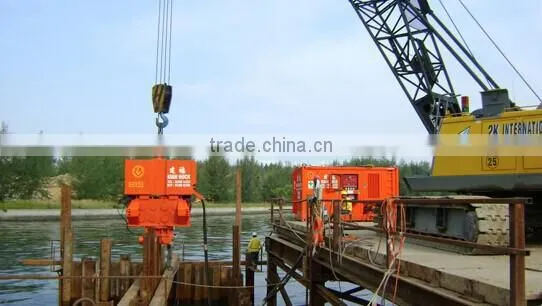

What are FAE vibrotary hammer job site?
What are FAE vibratory hammer fair show and business cooperation?
What are FAE vibratory hammer delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE vibratory hammer website for your further information:
WWW.FAECHINA.COM
