Help CenterHDPE Pipe Equipment/manufacturing Machine
Related Products
Specifications
HDPE pipe equipment/manufacturing machine1. Diameter: 16-800mm,
2. Output: 150-850kg/h,
3. Extrusion speed: 0.1-15m/min,
HDPE pipe equipment/manufacturing machine
1. Diameter: 16-800mm,
2. Output: 150-850kg/h,
3. Extrusion speed: 0.1-15m/min,
4. Installed power: 85-600kw
Process

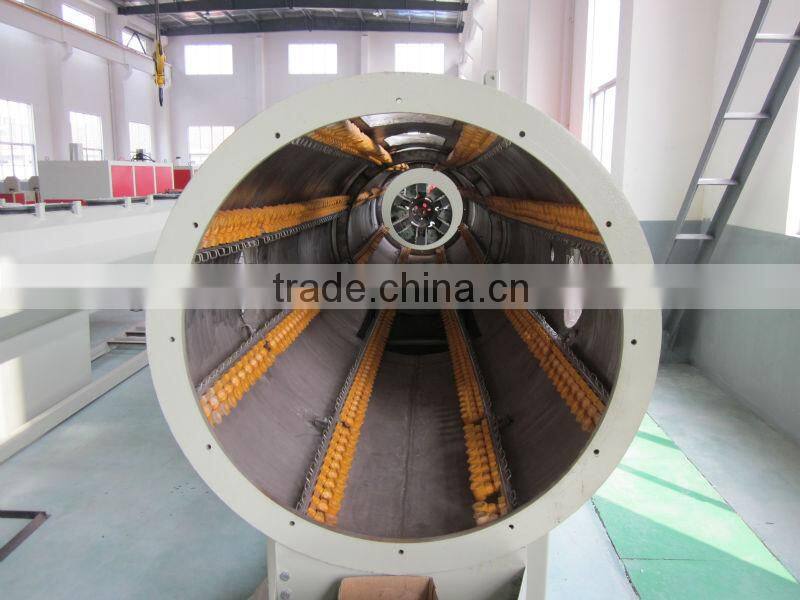

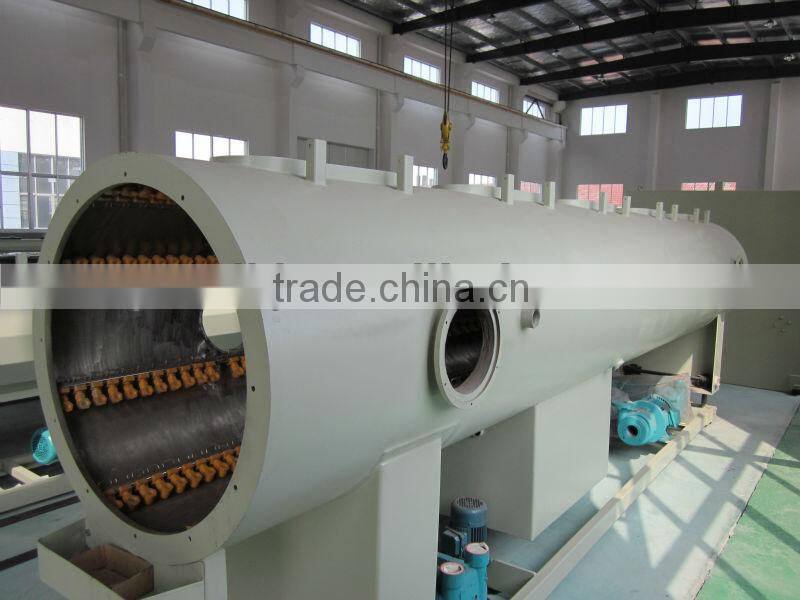

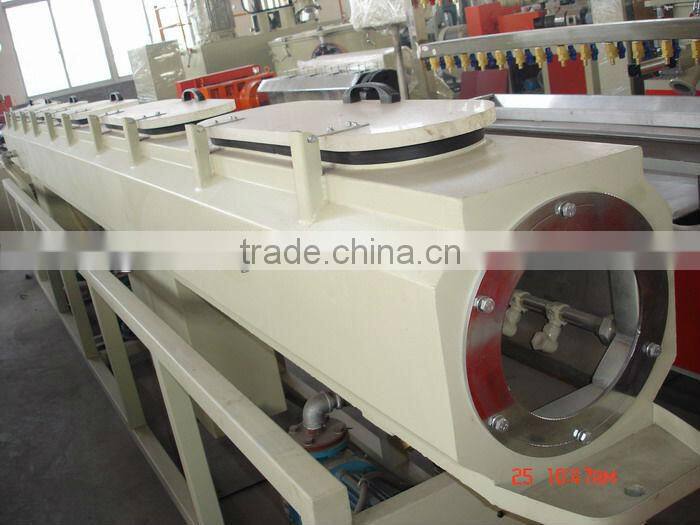

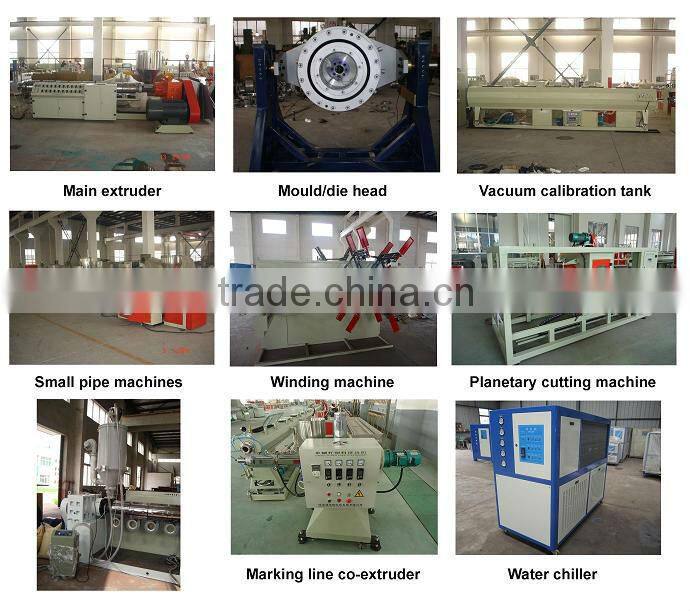

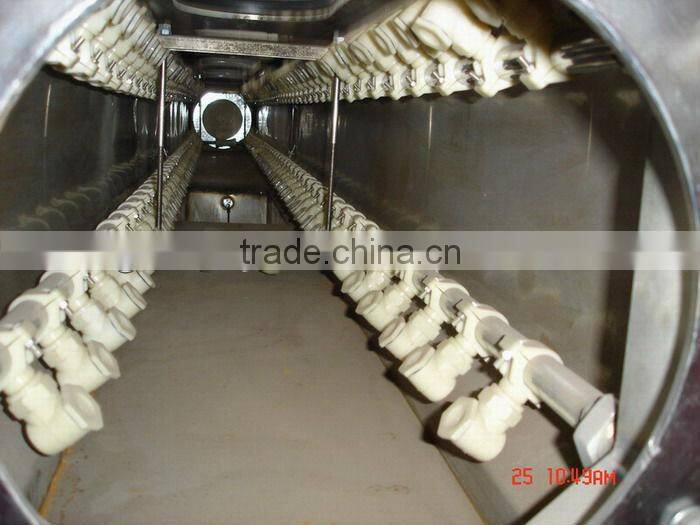

material Hopper Dryer and Auto charger → PE pipe extruder → marking line extruder → mould → calibrator → vacuum calibration tank → spray cooling water tank → printer → haul-off → cutter → pipe discharging rack
Description

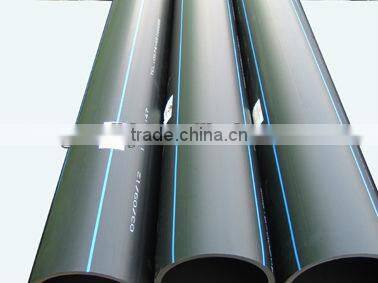

HDPE pipe equipment/manufacturing machine can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Main technical parameter
Model | HDPE-16/63 | HDPE-20/110 | HDPE-50/160 | HDPE-75/250 | HDPE-110/315 | HDPE-200/450 | HDPE-315/630 | HDPE-400/800 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 400-800mm |
Max output | 150kg/h | 200kg/h | 300kg/h | 350kg/h | 400kg/h | 500kg/h | 850kg/h | 850kg/h |
Extrusion speed | 1-15m/min | 1.2-12m/min | 0.6-8m/min | 0.5-4m/min | 0.4-3.7m/min | 0.3-3m/min | 0.2-2m/min | 0.1-1 m/min |
Extruder model | SJ-65/30 | SJ-65/33 | SJ-75/33 | SJ-75/33 | SJ-75/33 | SJ-90/33 | SJ-120/33 | SJ-120/33 |
Installed power | 85kw | 110kw | 125kw | 180kw | 260kw | 325kw | 480kw | 600kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1300mm |
Line length | 35m | 38m | 38m | 40m | 42m | 52 m | 60m | 68m |
PE pipe production line:
