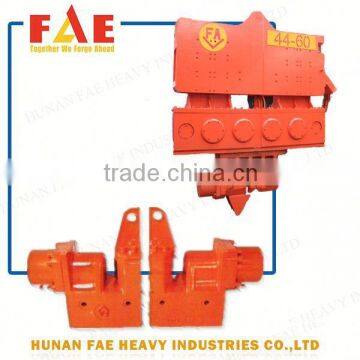

FAV hydraulic powerpacks vibratory hammer
OFFSHORE UNDERWATER PILE INSTALLATION
FAV Offshore Equipment provides hydraulic vibratory hammers for underwater piles installation. The hydraulic vibratory hammers are speciallyprepared for submerged operations together with other necessary back-up spare parts and tools. It has a group of experienced professionals whom are familiar with offshore underwater piles installations using hydraulic vibratory hammers. In addition, FAE also provides services for refurbishment and overhaul of marine winches, fabrication of specialized steel structures for offshore platform etc.

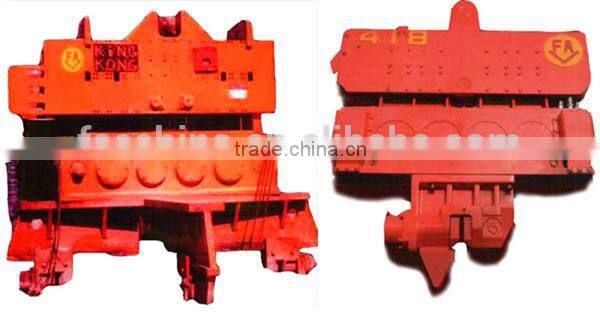

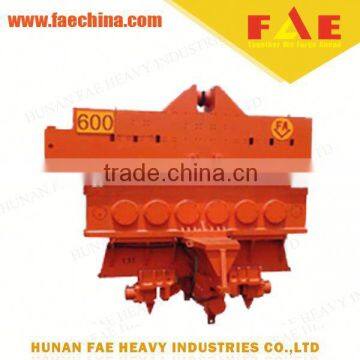

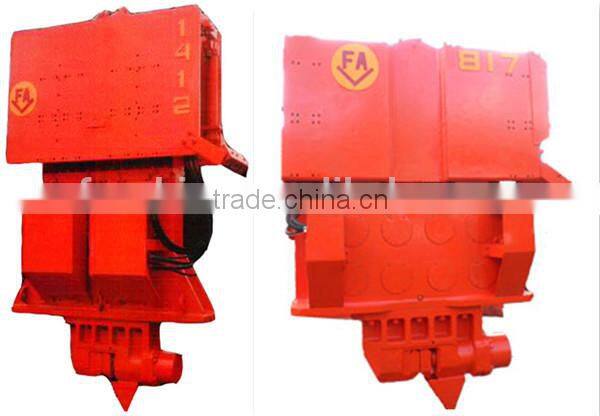

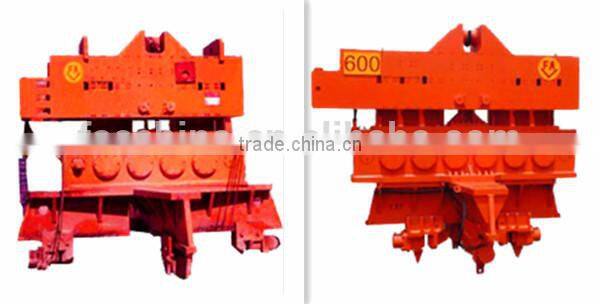

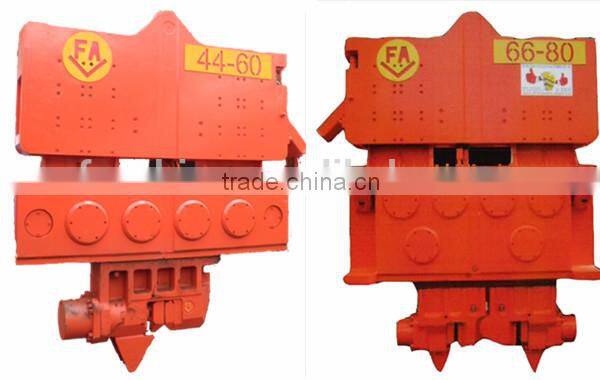

What are FAE vibratory hammer models?
| Technical Data | FAV416L | FAV418 | FAV44-60 | FAV66-80 | FAV817 | FAV1412 | FAV400 | FAV600 | |
| Eccentric moment | kgm | 26 | 27 | 51 | 77 | 51 | 116 | 150 | 231 |
| Frequency | vpm | 1600 | 1800 | 1800 | 1600 | 1700 | 1400 | 1400 | 1400 |
| Centrifugal force | kn | 972 | 1040 | 1818 | 2168 | 1621 | 2501 | 3203 | 4830 |
| Amplitude(dual clamps) | mm | 25 | 19 | 30 | 30 | 30 | 30 | 40 | 42 |
| Max line pull for extracting | kn | 355 | 588 | 710 | 710 | 454 | 1335 | 2224 | 2224 |
| Weight(no clamp no hoses) | kg | 3360 | 4300 | 5215 | 6920 | 6015 | 11700 | 16500 | 22500 |
| Non vibrating weight | kg | 1315 | 1534 | 1815 | 2065 | 1815 | 4720 | 900 | 11500 |
| Height(without clamp ) | mm | 11820 | 2010 | 2130 | 2540 | 2560 | 3810 | 2650 | 2650 |
| Length(inclu.hose chute) | mm | 2830 | 2550 | 2680 | 2650 | 2680 | 2415 | 3050 | 4600 |
| Width | mm | 430 | 330 | 560 | 560 | 560 | 1040 | 660 | 900 |
| Throat width | mm | 355 | 320 | 360 | 360 | 310 | 815 | 660 | 900 |
| Hydraulic hose length | m | 30 | 30 | 45 | 45 | 45 | 45 | 45 | 45 |
| Hydraulic hose weight(w/o oil) | kg | 385 | 385 | 770 | 770 | 770 | 1020 | 1020 | 1020 |

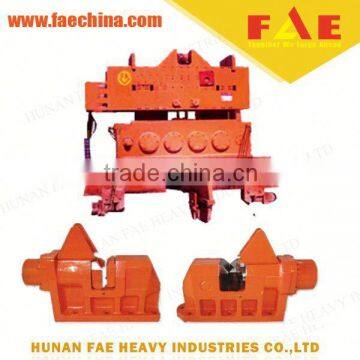

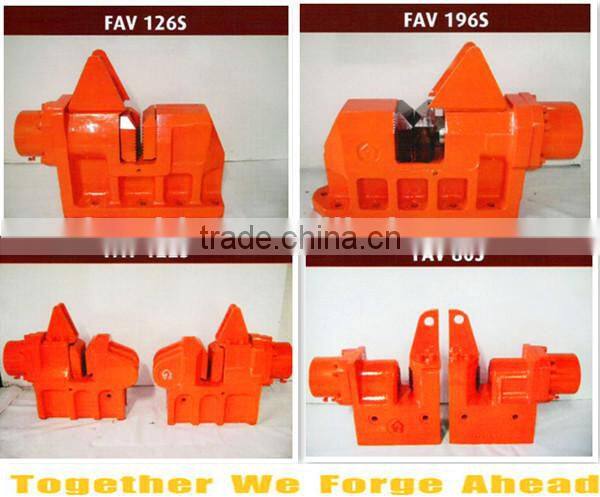

What are vibratory hammer clamps?
FAV HYDRAULIC UNIVERSAL CLAMPS

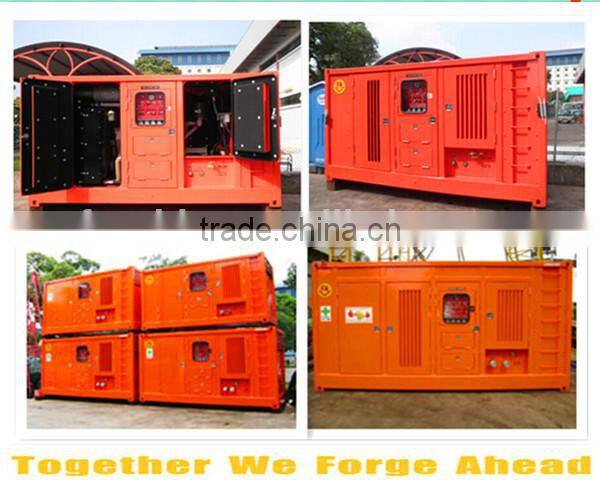

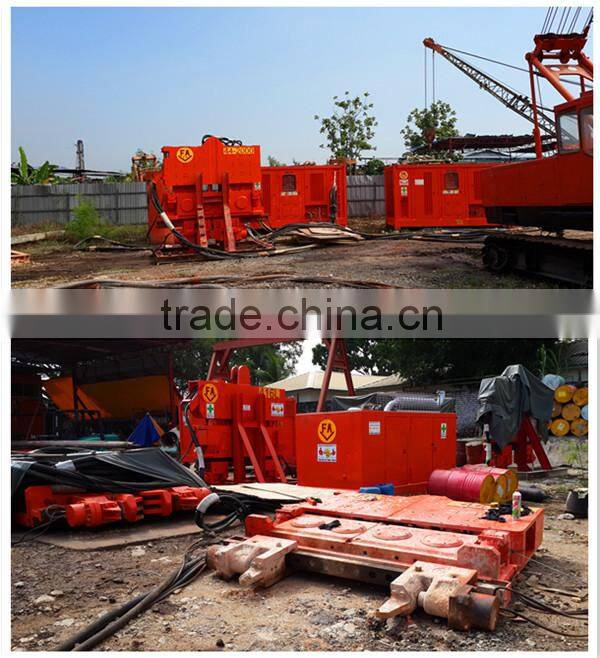

What are vibratory hammer powerpack ?
| FAV375 | FAV400 | FAV600 | FAV900 | FAV1200 | |
| kgm | John Deere 6135 | John Deere 6135 | John Deere 6135 | Caterpillar C18 ACERT | Caterpillar C27 ACERT |
| litres/min | 390 | 435 | 630 | 900 | 128 |
| bar | 340 | 340 | 340 | 340 | 340 |
| HP | 375 | 400 | 600 | 765 | 1050 |
| rpm | 2100 | 2100 | 2100 | 2100 | 2000 |
| rpm | 2100 | 2100 | 2100 | 2100 | 2000 |
| mm | 3600(L)×1500(B)×1800(H) | 3770(L)×1650(B) ×2200(H) | 3800(L)×1650(B) ×1900(H) | 7800(L)×2150(B) ×2540(H) | 4470(L)×2230(B) ×2560(H) |
| TON | 5 | 5 | 7 | 10 | 12.8 |
| Conceal exhaust silencer and 4 lifting eyes | |||||
| Noise reduction panels | |||||
| External fuel & hydraulic tank inspection allocations | |||||

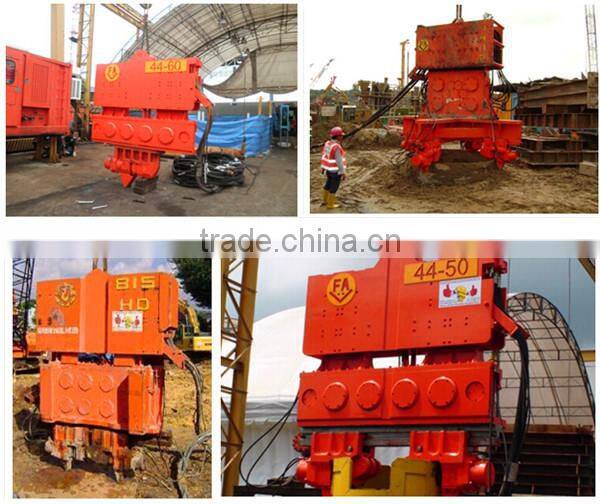

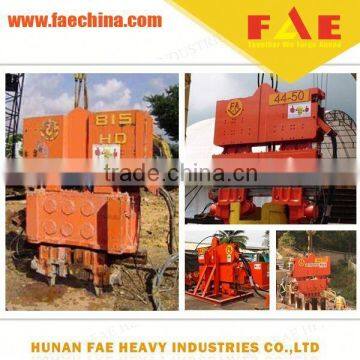

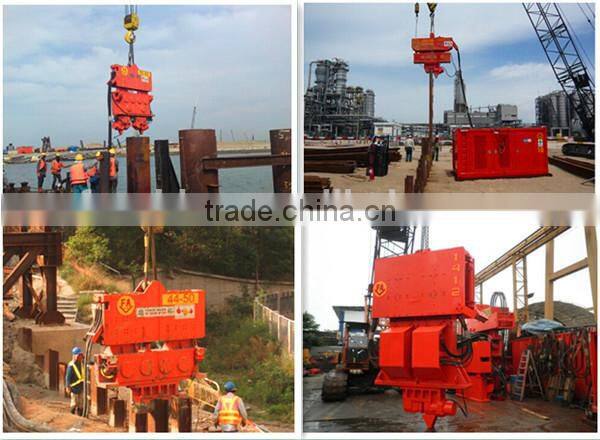

What are vibratory hammer job site?
Why Choose us?
Company View
Our Certifications
What are FAE business cooperation?
FAQ
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
