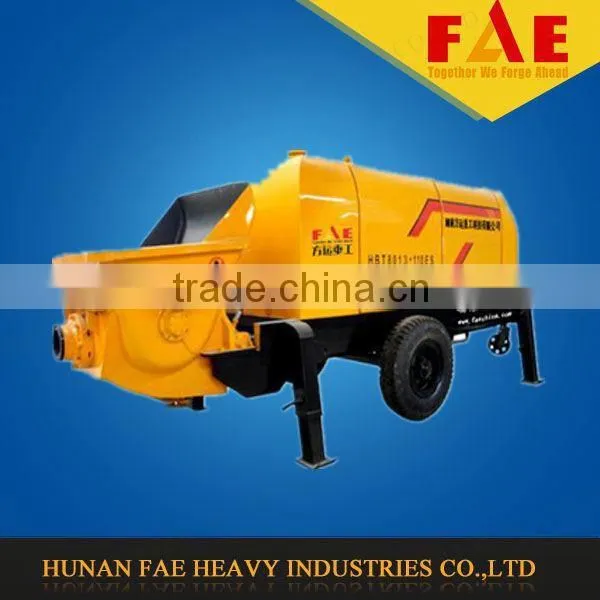

FAE trailer-mounted concrete pumps
What FAE could offer?
1 .Stability:
• Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven bytwo independent pumps that allow a more stable oil flow rate to the pumping unit.
• Intelligent control system: advanced technology, easy operation and
high reliability electrical system.
2.High efficiency:
• Hopper:High Suction Capacity due to Large Angle Fluent Hopper
Design with less feed accumulation area.
• Svalve: well designed S valve ensures the smooth flow of concrete.
• Rapid concrete piston substitution: the pistons can be changed easily
by a single operator without any special tools in 15minutes. The
hydraulic cylinder has anextra stroke to allow the piston to extend from the
concrete cylinder.
3.Energy saving:
• Low running costs.
• Hydraulic oil treatment: equipped with multistage fine filtration and
water separation devices, to extend hydraulic components lifetime and
reduce oil changes.
• Super wear~resistant component: special steel alloy made spectacles
wear plate andcutting ring plus high wear~resistant cast steel material
made mixing blade,ensuring a longer lifetime of weary spare parts.
• Hydraulic Low / High Pressure Mode Shifting: high/low pressure
working mode is easily selected at the press of a button for variable
heights of pumping.
What are FAE specification?
| Motor Trailer-Mounted Concrete Pumps | ||||
| Technical Data | Model | HBT60.13.90S | HBT80.13.110S | HBT80.16.110S |
| Max.Concrete Output | m3/h | 60 | 80 | 80 |
| Max.Concrete Pressure | Mpa | 13 | 13 | 16 |
| Drive power | kw | 90 | 110 | 110 |
| Concrete Cylinder(diam× stroke) | mm | ¢200/1650 | ¢200/1650 | ¢200/1800 |
| Hopper Capacity | m3 | 0.65 | 0.65 | 0.65 |
| Feeding height | mm | 1400 | 1400 | 1400 |
| Dimension | mm | 6000×2000×2200 | 6000×2000×2200 | 6300×2000×2200 |
| Weight | kg | 6000 | 6100 | 6300 |
| Diesel Trailer-Mounted Concrete Pumps | ||||
| Technical Data | Model | HBT 60.13.130RS | HBT80.16.145RS | HBT90.16.176RS |
| Max.Concrete Output | m3/h | 60 | 80 | 90 |
| Max.Concrete Pressure | Mpa | 13 | 16 | 16 |
| Drive power | kw | 130 | 145 | 176 |
| Concrete Cylinder(diam× stroke) | mm | ¢200/1650 | ¢200/1800 | ¢200/1800 |
| Hopper Capacity | m3 | 0.65 | 0.65 | 0.65 |
| Feeding height | mm | 1400 | 1400 | 1400 |
| Dimension | mm | 6000×2000×2200 | 6300×2000×2200 | 6300×2000×2200 |
| Weight | kg | 6500 | 6800 | 7300 |
What are FAE trailer-mounted concrete pump?
Kawasaki configuration
Rexroth configuration
Truck mounted concrete pump
Standard configuration
What are FAE production details?
What are FAE job site of concrete pump?
What are FAE delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
