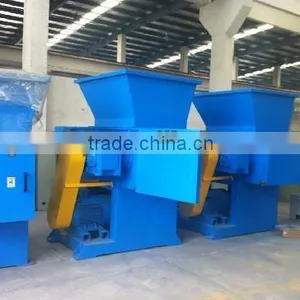

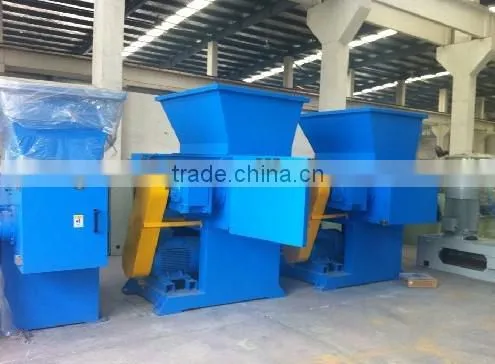

Help CenterPlastic Single Shaft Shredder for Pipe
Related Products
Specifications
plastic single shaft shredder for pipe1. SKD-11 (D2) -aterial blade
2. Motor power: 18.5-75kw
3. Final size: 20-80mm

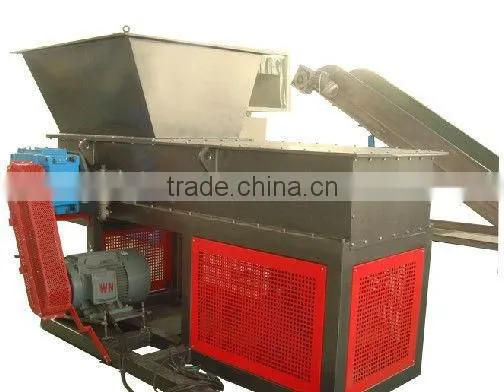

plastic single shaft shredder for pipe
1. SKD-11 (D2) -aterial blade
2. Motor power: 18.5-75kw
3. Final size: 20-80mm
Description
Single shaft plastic shredder character:
A. This Plastic Shredder is suitable to treat the big size of plastic product ,such as big diameter plastic pipe ,pressing plastic film and others
B. The blade base and blade on the rotary roller can be disassembly .it is easy to clean and maintenance.
C. The rotary blade adopt the V design, It can decrease the noise and decrease energy consumption.
D. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continues use.
E. Each fixed blade with 2 cutting knife edge, when the fixed blade is wear, it can be rotated to 180 degree, then the blade can continues use.
F. The main axis is drive by gearbox, its running very stably, low noise and strong power.
G. the material push feeding system is hydraulic ways , ,its running very stably
the machine is control by PLC system ,.the blade can rotated in opposite direction ,and also can close automatic if something unexpected happen , with very high safety service
Application :
This type of shredder is mainly used to grind , crush and recycle the waste plastics .Material suitable to be processed are : Big solid block /lumps of plastic, film rollers , blocks of wood , packed paper and packed fiber ...etc .
|
Model Item |
2260 |
4060 |
4080 |
40100 |
40120 |
40150 |
48150 |
Shaft width(mm) |
600 |
600 |
800 |
1000 |
1200 |
1500 |
1500 |
Hydraulic Jounery(mm) |
500 |
700 |
850 |
850 |
950 |
950 |
950 |
Shaft Dia(mm) |
φ220 |
φ400 |
φ400 |
φ400 |
φ400 |
φ400 |
φ400 |
Knife Qty(PCS) |
30 |
34 |
46 |
58 |
70 |
88 |
132 |
Main motor(KW) |
18.5 |
30 |
37 |
45 |
55 |
75 |
90 |
Hydraulic(KW) |
2.2 |
3.75 |
3.75 |
3.75 |
5.5 |
5.5 |
5.5 |
Weight(KG) |
1550 |
3000 |
3600 |
4000 |
5000 |
6200 |
8000 |
