desander for mud purifying
- 50 Unit / Units per Month
- China port/Shanghai/Shenzhen
- T/T Credit Card
- Caterpillar 439-5037 4395037 Fuel Water Separator Filter CAT EC200D EC170C/D Excavator
- SHANTUI JANEOO Sand making building ZSG120-5T
- Main technical parameters of 30m concrete pump truck
- 207 Engine Hydraulic Filter HF6710 AT58368 86542664
- 1 Ton Garden Excavator For Sale
- XY-2 Water Well Drilling Rig for Exploration and Core Drilling
Product Details
Place of Origin: | Hunan, China | Brand Name: | FAE | Model Number: | FA-100;FA-250;, ZX-100/250 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

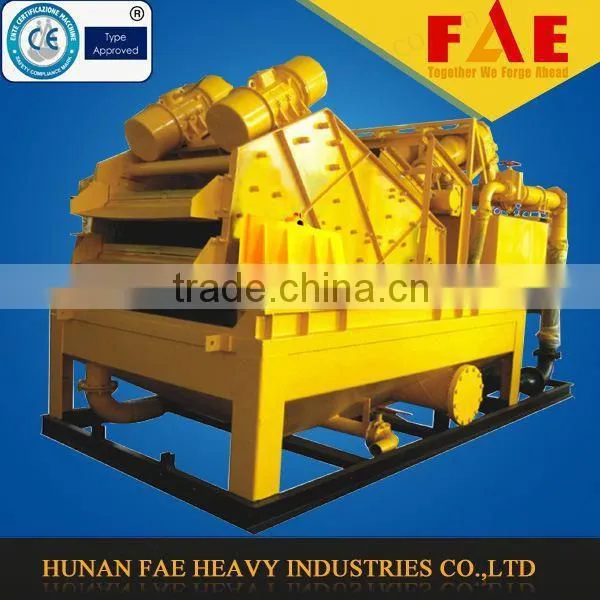

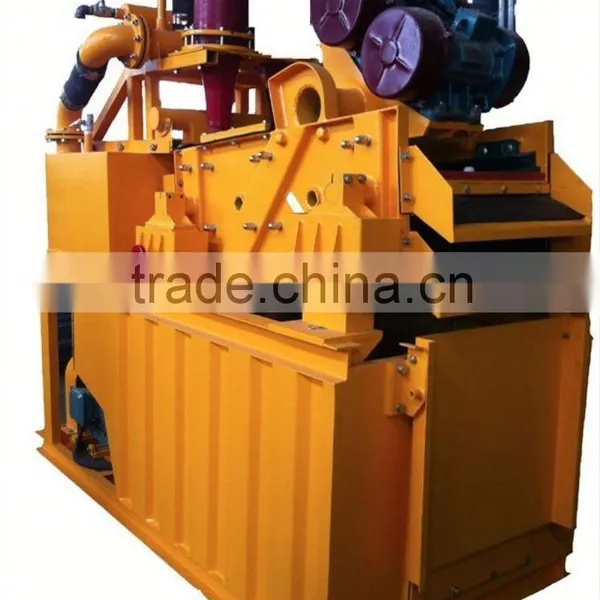

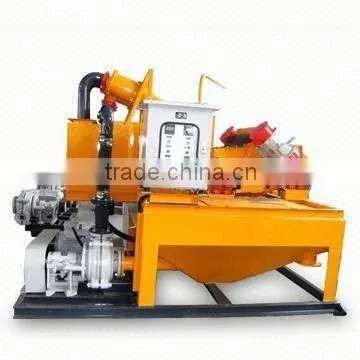

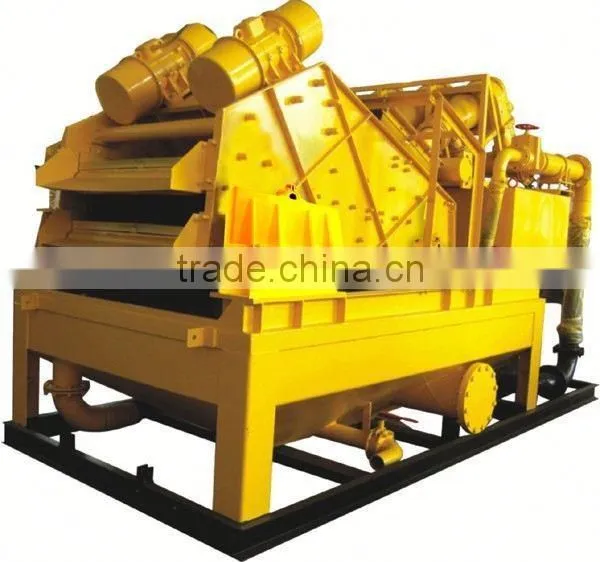

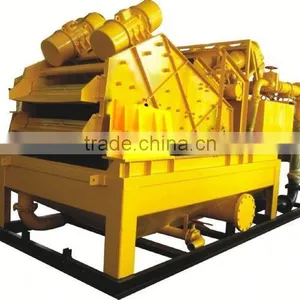

desander for mud purifying
What FAE could offer?
FAEdesanding plant is widely used in the purification and recycling of slurry for the construction of hydropower,continuous concrete wall, slurry shield tunnel, etc. the equipment is increasingly becoming a necessity of civilized construction since it not only can cut down construction cost, but also can reduce the pollution of the environment. It can provide you with main advantages as following.
Specifications | FA-100/30 | FA-250/30 | FA-250/45 | FA-250/60 |
Cut point d50(um) | 30 | 30 | 45 | 60-20 |
Soild feed capcaity(t/h) | 25-50 | 25-80 | 25-80 | 25-80 |
Total capacity(kw) | 24.2 | 58-60.8 | 58-60.8 | 58-60.8 |
Dismension(m) | 30*1.9*2.3 | 3.54-4.63*2.25*2.64-3.4 | 3.54-4.63*2.25*2.83-3.4 | 3.54-4.63*2.25*2.83-3.4 |
Slurry feed capacity(m3/h) | 100 | 250 | 250 | 250 |
Weight(kg) | 2700 | 4900-7600 | 4900-7600 | 4900-7600 |
Type | FA-100B |
Slurry feed capacity(m3/h) | 100 |
Cut point d50(um) | 30 |
Solids feed capacity(t/h) | 25-50 |
Total capacity(kw) | 24.2 |
Dimension(m) | 2.9*1.9*2.25 |
Total weight(kg) | 1200 |
Payment term | T/T or L/C |
Delivery time | 20-40days after order confirmed |
Type | FA-250E |
slurry feed capacity(m3/h) | 250 |
cut point d50(um) | 30 |
solid feed capacity(t/h) | 25-80 |
total capacity(kw) | 60.8 |
dimension(m) | 4.62*2.12*3.4 |
total weight(kg) | 7600 |
payment term | T/T L/C |
delivery time | 20-40days after order confirmed |
Main Applications
1- By fully purifying slurry, it is favorable to control slurry index, reduce drill stucking phenomena, and improve drilling quality.
2- By thoroughly separating the slag and soil, it is favorable to enhance drilling efficiency.
3- By realizing the repetition use of slurry, it can save slurry making materials and thus reduce the construction cost.
4- By adopting the technique of closecycle purification and low water content of removed slag, it is favorable to reduce environmental pollution.
Features:
1- High mud handling capacity, sand can be removed efficiently.
2- The oscillating screen has many advantages such as easy operation, low trouble rate, convenient installation and maintenance
3- Slag charge screened by advanced straight-line oscillating system is effectively dewatered
4- The adjustable vibrating force, angle and mesh size of the oscillating screen enable the equipment possess a high screening efficiency in all kind of strata.
5- The high screening efficiency of the machine can excellently support drillers raise bore and advance in different strata.
6- Energy saving efficiency is significant since the power consumption of the oscillating motor is low.
7- Low operation noise of oscillating screen is favorable to improve the working condition.
8- The abrasion and corrosion resisting slurry pump has many advantages such as advanced centrifugal designing, optimal structure, stable operation and convenient maintenance.
9- The thick, abrasionresisting parts and special designed bracket enable the pump to convey corrosive and abrasive slurry with high density.
10- The hydraulic cyclone with advanced structural technology can efficiently separate sand from slurry. Moreover, it features in light weight, corrosion and abrasion resisting material, so it can work stably in the worst condition without maintenance.
11- The special designed automatic liquid-level balancing device not only can keep the liquid-level of the slurry reservoir stable, but also realized the reprocessing of mud, so the purification quality can be further enhanced.
12- The unique recoiling device can prevent slurry reservoir from silting and flooding in order to ensure the machine work smoothly without maintenance for a long time.
What are FAE desanders?
What are FAE desander production?
What are FAE desander certificates?
What are FAE desander job site?
What are FAE delivery?
What are FAE business cooperation ?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
