Sinocastel Co.,Ltd has 15 years R&D,manufacturing experience in LBS,AVL fields and 5 years in Car OBD telematics, providing Car OBD GPS Tracker, OBD Bluetooth Scanner, Anti-theft Vehicle GPS Tracker, Iridium GSM GPS Tracker and Fleet Management & GPS Tracking Solutions.

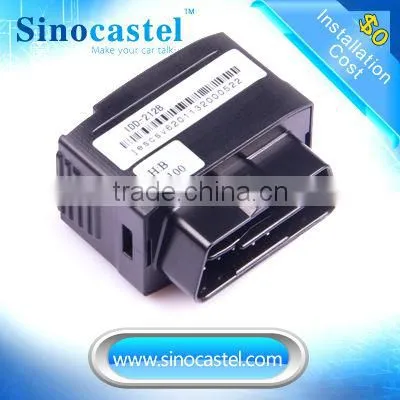

[ 16MB memory Car Bluetooth OBD Dongle for the UBI field ]
IDD-212B is our best designed Mini Size Bluetooth 4.0 OBD Car Diagnostic Tool for all OBD II/EOBD standard cars. It could read car engine data and diagnostic Error codes (DTCs) and tranmitted data to Android/IOS app for analyzing driving behavior, mileage, fuel consumption etc through Bluetooth.
With G-sensor and 16Mb flash built-in, it's the best low cost solution for Eco-driving & Eco-enviorment.
Support universal cars and vehicles with EOBD/OBD II Protocols
- 16MB data storage, no data lost if bluetooth disconnection
Bluetooth 4.0 support both iPhone & Android.
Scann for Stored DTCs & Pending DTCs
Erase pending DTCs
Car Engine reading: speed, RPM, ECT,MAP etc.
Fuel Consumption and Mileage
Vehicle battery monitor
Driver driving behavior alarms including speeding, high ECT/RPM, hard braking, idle engine etc.
-
Mechanical
Size

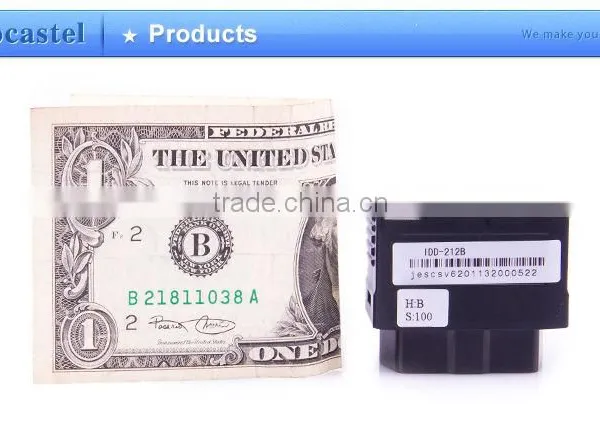

46mm (L) x 43mm (W) x 26mm (H)
Weight
35g
Interface
OBD interface
RS-232 interface
Data transmission
Bluetooth
Storage
16MB FLASH,store up to 300 hours trip data
OBD protocol
SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO 14230-4
ISO 15765-4
Power
Working Voltage
9-16VDC
Working Current
Average: <50mA 13.8VDC
Sleep mode: <20mA 12VDC
Bluetooth
Specification: V3.0/4.0+EDR,Class II
Frequency: 2.4-2.48GHz
Range: 10m (Max. no shield)
Sensitivity: -90dBm GFSK
-90dBm@∏/4DQPSK
-83dBm@8DPSK
-92dBm@BLE
Antenna: built in
3 axis Accelerometer
+/-2g, +/-8g, driving behavior detection
LED Indication
Bluetooth/OBD/Power indication
Buzzer
System status/Alarm indication
Environment
Working Temperature
-30°C ~ +70°C
Storage Temperature
-40 °C ~ 85°C
Humidity
5%~95%(no frog)
1)One-to-one service with efficient ;
2)OEM&ODM:All customized products can produce;
3)Protection of your design and all your private informations;
4)We could supply unique items;
5)Quality stability, can to provide certification of products( such as CE, FCC, ISO9001:2000);
6)Convenient payment methods: Paypal, bank-in, T/T and Western Union;
7)Speedy shipment: We could arrange the shipment within 5business days.
