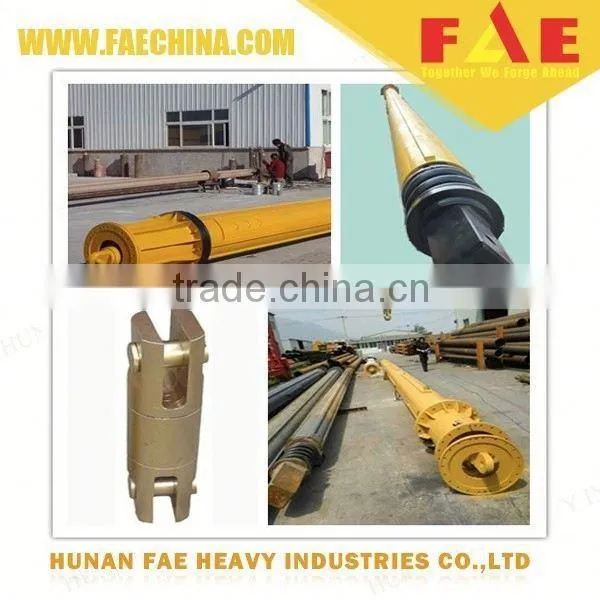

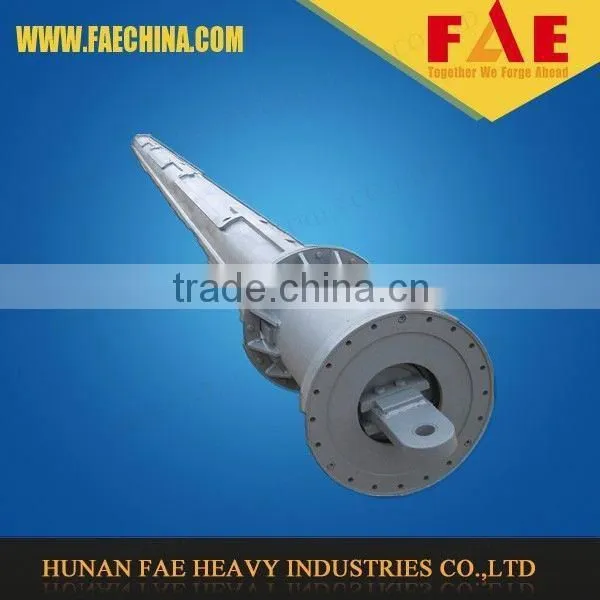

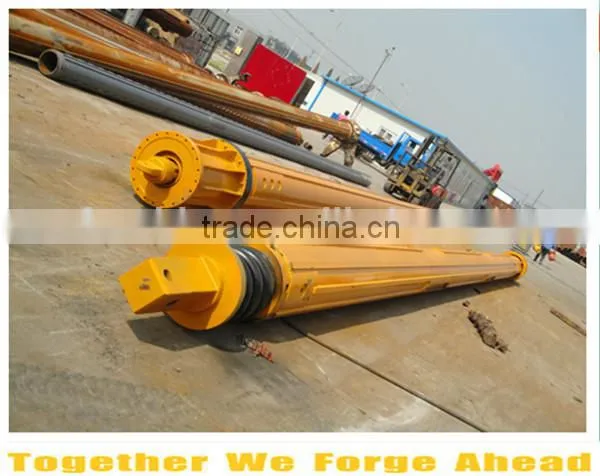

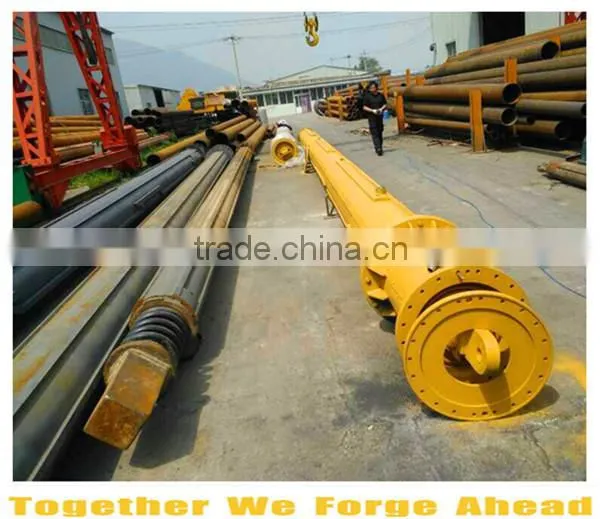

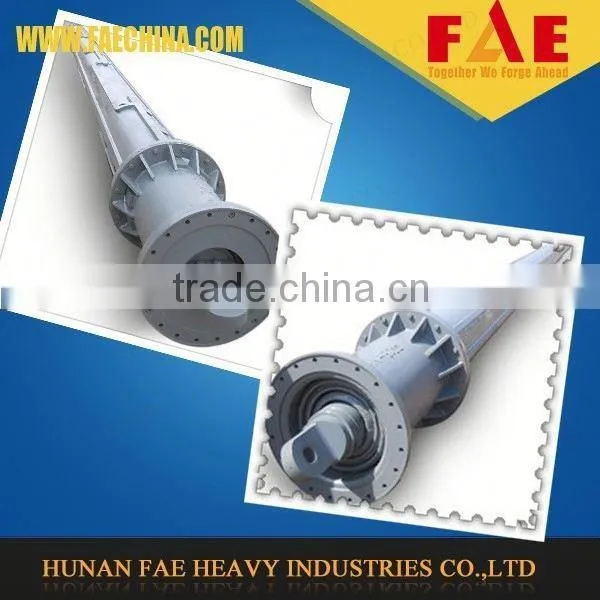

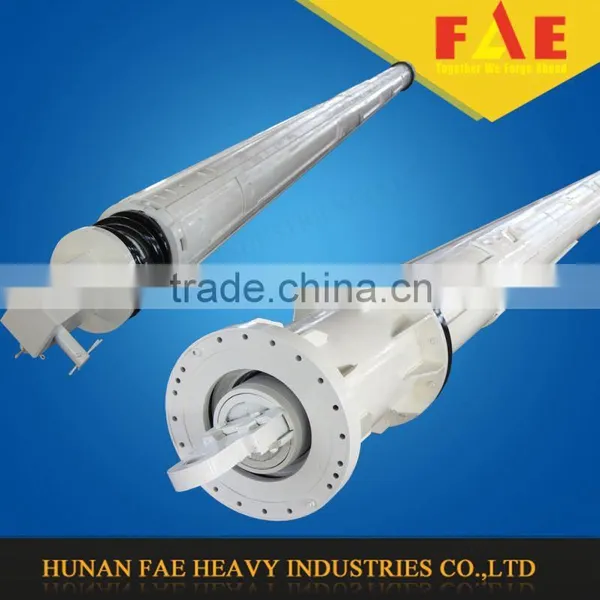

FAE Kelly Bar for drilling rig
What FAE could offer?
Kelly Bar is the key part of a drilling machine , and its quality directly affects the whole machine based on the rich maunfacturing experience and by absorbing the advanced technology both at home and board, we can produce first-class kelly bars which can be matched with drilling rigs of Bouer, Sany, Soilmec,MAT,IMT,Casagrande,etc
The Features of FAE kelly bar are as follows:
1.Adopt the advanced technology of 6-key design in the world and standard modulor design
2.Equipped with advanced processing facilities . processing technic and manufacturing equipments,DZ kelly bar enjoys a low weight,high strength,high straightness of single bar,thinner tube,smaller inter-tube distance and good resistance.
3.The raw materials are either imported from Germany like the high abrasion resistance materials ,or from chinese top manufacturer such as the seamless steel tube with alloy.Material details as below:
First section :16MN(Q345B)
Second section:16MN (Q345B)
Third section:27 SiMn
Forth section:35 CRMO
There are mainly two types of kelly bars:
1.Interlocking Kelly Bar
2.Frction Kelly Bar

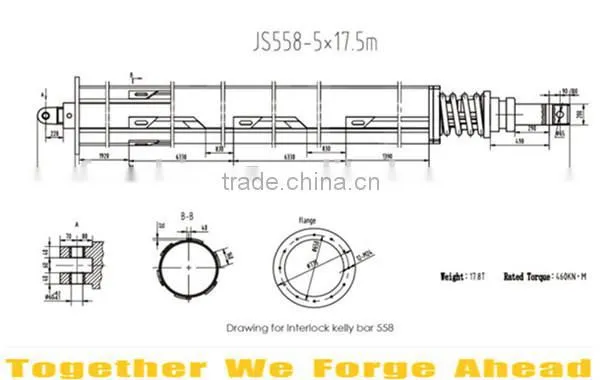

1) interlocking Kelly Bar
Interlocking kelly bars are used with pilling rigs for drilling in dense sand,gravel and weak to strong rock . The interlocking kelly bars can be
fully locked by mechanical locking system on each sectiong. Kelly bars can be equipped with specially designed springs or pressure plates for shock absorbing purpose.
Please check details as below:
| Name of product |
EXternal dimeter (mm) |
Pith No |
Length section (m) |
Rated tarquel (KN*M) |
Depth (m) |
| Interlocking kelly bar | 355 | 3 | 10-13 | 180 | 27-36 |
| 377 | 3,4 | 10-12.5 | 220 | 27-44 | |
| 406 | 3,4 | 10-15 | 230 | 27-57 | |
| 419 | 3,4 | 10-15 | 250 | 27-57 | |
| 440 | 3,4 | 10-15 | 250 | 27-57 | |
| 470 | 3,4 | 10-17 | 280 | 27-65 | |
| 508 | 3,4 | 10-17 | 320 | 27-65 | |
| 530 | 3,4 | 10-20 | 380 | 27-76 | |
| 575 | 3,4 | 10-21 | 420 | 27-80 | |
| 630 | 3,4 | 10-21 | 450 | 27-80 |
2) Friction Kelly bar
Friction Kelly bar is another type kelly of bar ,which the external key is composed of 3 or 6 wear -resistant strip without pressunrizing point .This kelly bar can form pressure force when the kelly bar is rotary.can produce peripheral force and the rotary passing down the pressure force,can produce the friction force.This kelly bar has the advantage of opeerating sample .drilling deep ,but with less pressure transmission.So this kelly bar is suitable for the soft and silt layer.
| Name of product |
EXternal dimeter (mm) |
Pitch No |
Length section (m) |
Rated tarquel (KN*M) |
Depth (m) |
| Friction kelly bar | 355 | 4,5 | 10-13 | 180 | 36-60 |
| 377 | 4,5 | 10-14 | 200 | 36-65 | |
| 406 | 4,5 | 10-15 | 210 | 36-70 | |
| 419 | 4,5 | 10-15 | 250 | 36-70 | |
| 440 | 4,5 | 10-15 | 250 | 36-70 | |
| 470 | 4,5,6 | 10-17 | 280 | 36-95 | |
| 508 | 4,5,6 | 10-18.5 | 320 | 36-103 | |
| 530 | 4,5,6 | 10-19 | 380 | 36-106 | |
| 575 | 4,5,6 | 10-21 | 420 | 36-120 | |
| 630 | 4,5,6 | 10-21 | 450 | 36-120 |

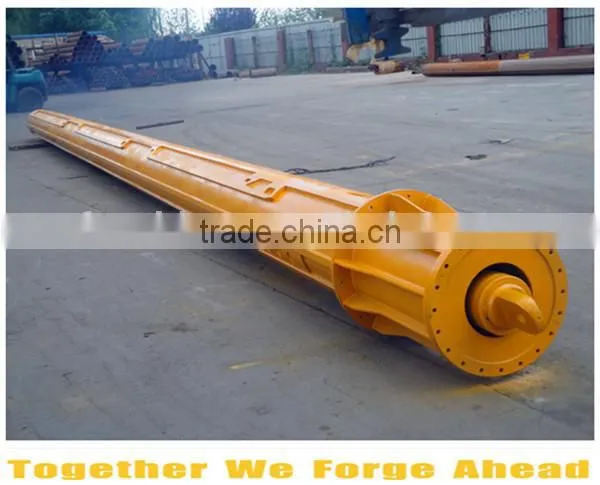

What is FAE kelly bar?

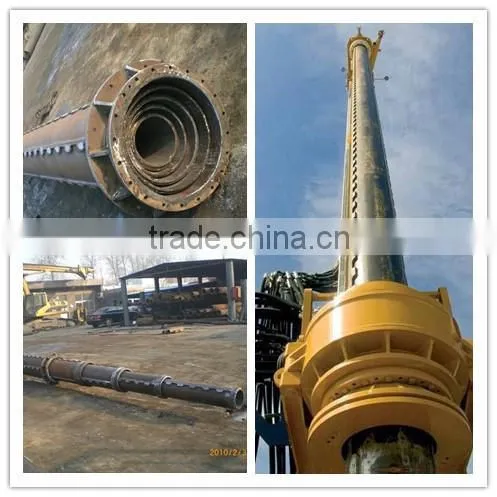

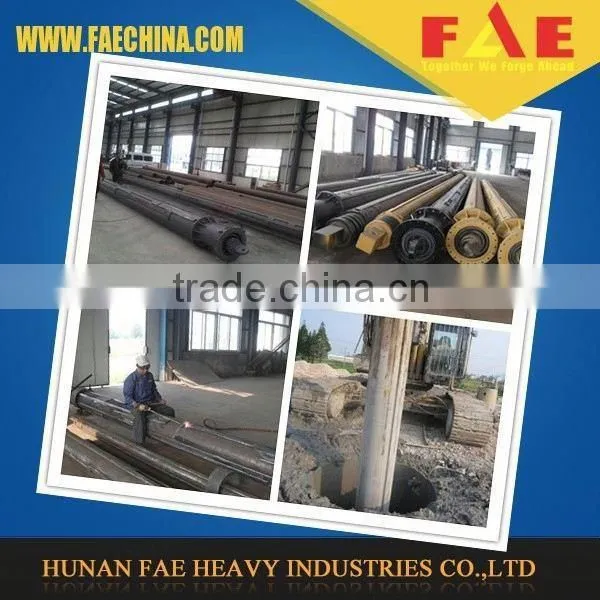

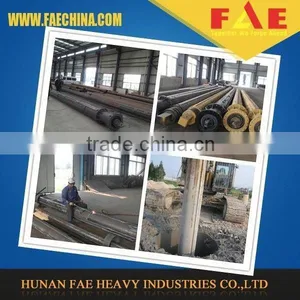

What are FAE kelly bar production?
What are FAE accessories of kelly bar?
What are FAE Accessories for drilling rig ?
What are FAE Kelly Bar delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
