Specifications
Auto smart start system1.Car sercurity;keyless entry
2.Engine start stop
3.Auto windows roll-up
4.Exclusive for 4S Stores
2015 auto smart star system
1.Main engine parameters:
A.Working voltage: 9V~16V
B.Working temperature: -40°C~+85°C
C.Quiescent Current:<35mA
D.Dynamic current:ACC:<30A ON:<60A Speaker:<3A(Car speaker)
2.RFID inductive parameters:
A. RFID working frequency:125KHz
B. RFID inductive distance:<5cm
3. Components of smart start:
Components: | |||||
CAN BUS button start main engine |
1 |
2*6PIN OBD connect auto smart star system wires |
1 |
Manual
|
1 |
|
Start button
|
1 |
Pallet (according to car models) |
1 |
Installation diagram
|
1 |
|

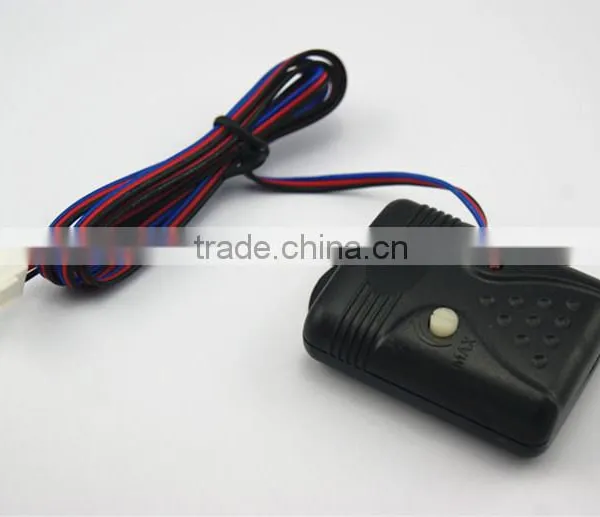

Vibration sensor
|
1 |
Lock cover (according to car models) |
1 |
Warranty card
|
1 |
|
Code device
|
1 |
Speaker (according to car model) |
1 |
Ribbon
|
1 |
|
RFID antenna
|
1 |
3M glue
|
1 |
Exclusive use big 6PIN wire
|
1 |
|
Safe card
|
1 |
lock cylinder
|
1 |
|
|
4. Safe Smart Control, Quick Smart Start
1. Wireless installation, Exclusive use, connect car OBD interface
2.Don’t destroy car electric wires, no affection of car insurance and annual inspection
3. Upgrade remote central locking system to car alarm system
4. CAN-BUS car alarm system
5. Remote engine start by car remote control
5. Pgrade OBD Smart Start System Exclusive for 4S Stores
1. Exclusive Use |
2. No trimming |
3. Anti-hijacking |
4. Oil control |
5. Alarm |
6. Brake to lock |
7. Button start |
8. Pre-start |
9. CAN BUS extension |
10. Urgency unlock |
11. Auto/Manual |
|
6.Technology innovations of upgrade Skwon OBD smart start system:
1. Upgrade smart start system is compatiable with the functions of original car alarm system and don’t destroy car electric wires.
2. Upgrade CAN BUS alarm system, match with original central locking system, eliminate the incompatibility between alarm system and car electric wire.
3. Don’t need to cut wires, easy to install
4. Remote engine start (cool/warm the car)
5. Upgrade remote button start system is based on original car alarm system, its start is indicated by signal of car’s remote control. When the engine of car starts in arming by others, car will alarm by voice and light. The difference between SKWON and other suppliers is: other smart start system in markets sometimes remove original car alarm system or make the original car alarm system in disarming after install button start system.
7.Start procedures:
1. Press unlock button on remote control for2 times, door unlocked, disarming.
2. After CAN BUS smart start system detects the disarming signals of car, the indicator light will bright.
2015 auto smart star system
Warranty:
1. Warranty: 18 months after purchased date or installation date
2. During warranty, factory fixes the problems for free which are not caused by people
3. Customers need to write complete details on the warranty card with wholesale’s stamp
4. When replacement, customer need to show out the warranty card and related bills
5. If customer do not fill in or alter the warranty card, or the warranty is not correct, factory will not replace.
6. Please send back the warranty card to our factory within 1 month to fill in your warranty information.
