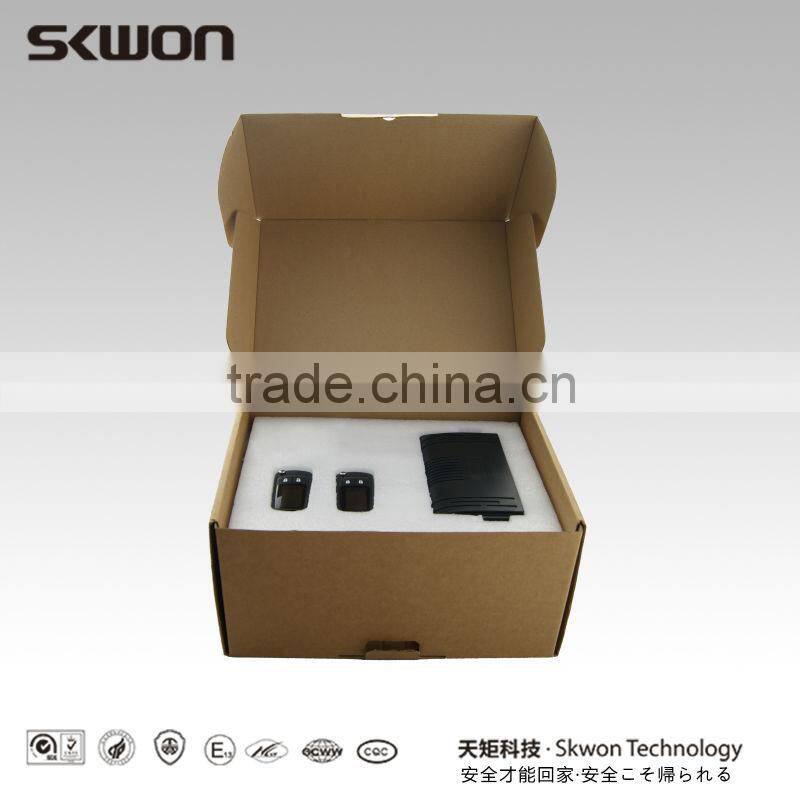

Help CenterSuper Smart Start System for Cars Hot Selling Two Way
Related Products
-
2015 New! Auto Engine Smart Start System Smart Key Remote Engine StartUS$ 150 - 250MOQ: 50 Sets -
2015 New!make in China Auto Smart Start System Car Keyless Entry System Smart KeyUS$ 150 - 250MOQ: 50 Sets
-
Remote Engine Start System Keyless Auto Smart Start System With Smart KeyUS$ 120 - 220MOQ: 50 Sets
-
2015 Remote Engine Start With PKE Auto Smart Start System Smart KeyUS$ 120 - 220MOQ: 50 Sets
-
2015 Two-Way Smart Start Remote Engine Start Smart KeyUS$ 150 - 250MOQ: 50 Sets
Specifications
1.Exclusive for 4S Stores2.Safe Smart Control, Quick Smart Start,Remote Engine Start
3.OBD Damage-Free Install.
2015 OBD Two-Way Smart Key System For Bulck
1.Main engine parameters:
1. Working voltage: DC12V
2. Working temperature: -40°C~+85°C
3. Quiescent current:<35mA
4. Dynamic current:ACC:<30A ON:<60A Speaker:<3A(Car speaker)
2. Smart key parameters:
1. Nominal voltage: DC3.3V
2. Working temperature: -40°C~+85°C
3. Quiescent current: <50uA
4. Working frequency: 433.3MHz
3. Components of smart start:
OBD Two-Way Smart Key System Components | |||||
|
Main engine
|
1 |
6PIN ignition wires |
1 |
lock cylinder
|
1 |
|
Start button
|
1 |
2*6PIN OBD connect wires |
1 |
Ribbon
|
4 |
|
Code device
|
1 |
Function expand wires (ascar model) |
1 |
Installation diagram
|
1 |
|
RFID antenna
|
1 |
Pallet (as car model) |
1 |
Warranty card |
1 |
|
PKE antenna
|
3 |
Lock cover (as car model) |
1 |
3M glue
|
1 |
Vibration sensor |
1 |
Speaker (as car model) |
1 |
Smart Key
|
2 |
4. Safe Smart Control, Quick Smart Start
1. Wireless installation, Exclusive use, connect car OBD interface
2. Don’t destroy car electric wires, no affection of car insurance and annual inspectio
3. Upgrade remote central locking system to car alarm system
4. CAN-BUS car alarm system
5.Remote engine start by car remote control(available function) Smart PKE door unlock
5. Smart Key LCD signals instruction
Smart Key LCD signals instruction | ||||
|
Arming
|
Trunk
|
Alarm sign
|
Charge interface
|
ON/OFF
|
|
PKE pattern
|
Key Battery electric quantity |
Right front door
|
Unlock
|
Remote start
|
|
Car collision
|
Voice & Light Alarm |
Right rear door
|
Lock
|
Temperature
|
|
Left front door
|
Disarming
|
Car battery electric quantity |
Trunk open
|
Car engine start |
|
Right rear door
|
|
|
|
|
6. Technology innovations of SKWON OBD Two-Way smart key system:
1. Upgrade smart start system is compatiable to the functions of original car alarm system and don’t destroy car electric wires.
2. Upgrade CAN BUS alarm system, match with original central locking system, eliminate the incompatibility between alarm system and car electric wire.
3.Don’t need to cut wires, easy to install
7. Start procedures:
1. Press unlock button on smart key for once, door unlocked, disarming.
2. After the control system of smart key detects the disarming signals of car, the indicator light of start button will bright.
3. Right now allow below operations:
A. Open ACC/ON
B. Smart engine start
C. Engine off
D. Patterns change once press the button
E. Push the brake
2015 OBD Two-Way Smart Key System
Warranty:
1. Warranty: 24 months after purchased date or installation date
2. During warranty, factory fixes the problems for free which are not caused by people
3. Customers need to write complete details on the warranty card with wholesale’s stamp
4. When replacement, customer need to show out the warranty card and related bills
5. If customer do not fill in or alter the warranty card, or the warranty is not correct, factory will not replace.
6. Please send back the warranty card to our factory within 1 month to fill in your warranty information.
