Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > Ready Trailer Concrete Pump

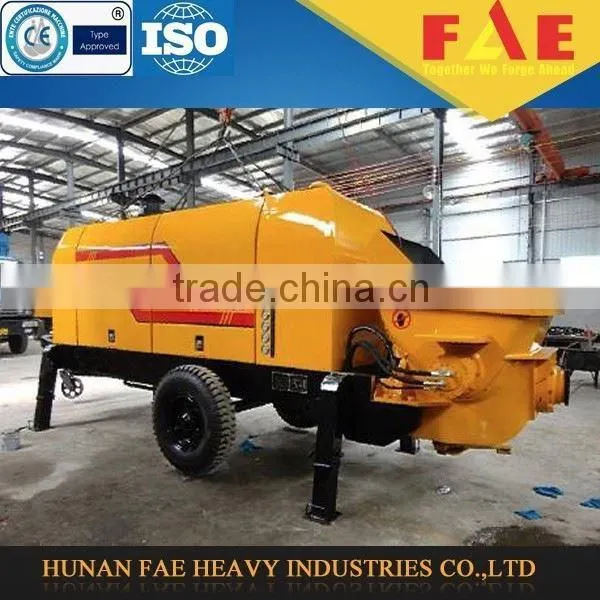

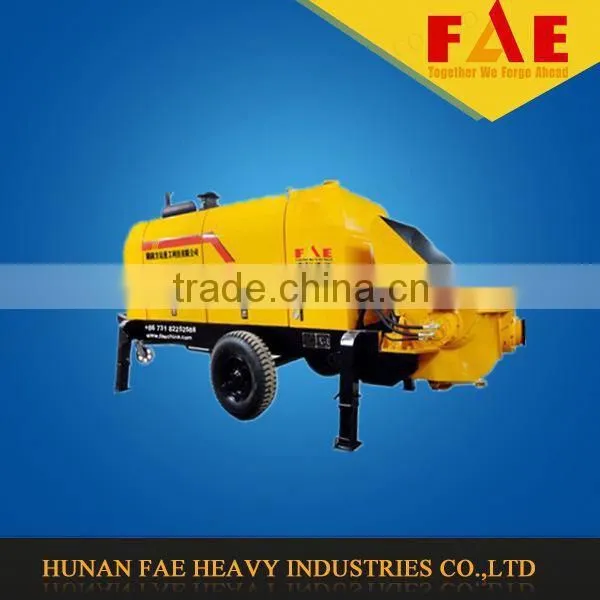

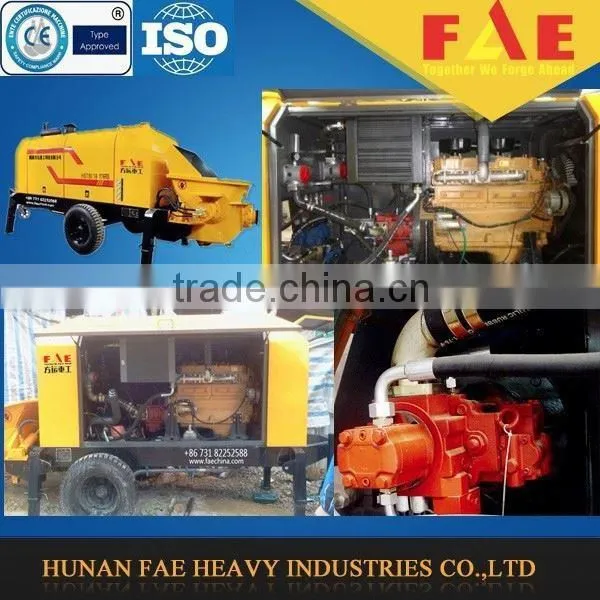

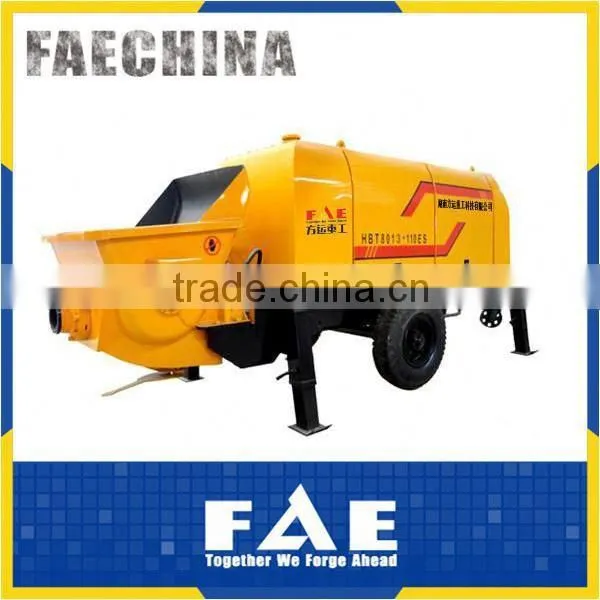

Ready Trailer Concrete Pump

US$ 1 - 30,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Power Type:

Other, motor or diesel, Diesel or motor

Place of Origin:

Hunan, China

Contact Supplier Request Quote Chat Now

Hunan Fae Heavy Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port/Shanghai/Shenzehn

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Power Type Other, motor or diesel, Diesel or motor

Place of Origin Hunan, China

Brand Name FAE

Model Number HBT SERIES

After-sales Service Provided Overseas third-party support available

Power(W) 130kw

Weight 6100kg

Dimension(L*W*H) 6400*2200*2610

Certification ISO BV Certificate

Warranty 12Months

FAE trailer-mounted concrete pumps

What FAE could offer?

1 .Stability:
• Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven bytwo independent pumps that allow a more stable oil flow rate to the pumping unit.

• Intelligent control system: advanced technology, easy operation and

high reliability electrical system.

2.High efficiency:
• Hopper:High Suction Capacity due to Large Angle Fluent Hopper

Design with less feed accumulation area.
• Svalve: well designed S valve ensures the smooth flow of concrete.
• Rapid concrete piston substitution: the pistons can be changed easily

by a single operator without any special tools in 15minutes. The

hydraulic cylinder has anextra stroke to allow the piston to extend from the

concrete cylinder.

3.Energy saving:
• Low running costs.
• Hydraulic oil treatment: equipped with multistage fine filtration and

water separation devices, to extend hydraulic components lifetime and

reduce oil changes.
• Super wear~resistant component: special steel alloy made spectacles

wear plate andcutting ring plus high wear~resistant cast steel material

made mixing blade,ensuring a longer lifetime of weary spare parts.
• Hydraulic Low / High Pressure Mode Shifting: high/low pressure

working mode is easily selected at the press of a button for variable

heights of pumping.

What are FAE specification?

Motor Trailer-Mounted Concrete Pumps
Technical Data	Model	HBT60.13.90S	HBT80.13.110S	HBT80.16.110S
Max.Concrete Output	m3/h	60	80	80
Max.Concrete Pressure	Mpa	13	13	16
Drive power	kw	90	110	110
Concrete Cylinder(diam× stroke)	mm	¢200/1650	¢200/1650	¢200/1800
Hopper Capacity	m3	0.65	0.65	0.65
Feeding height	mm	1400	1400	1400
Dimension	mm	6000×2000×2200	6000×2000×2200	6300×2000×2200
Weight	kg	6000	6100	6300

Diesel Trailer-Mounted Concrete Pumps
Technical Data	Model	HBT 60.13.130RS	HBT80.16.145RS	HBT90.16.176RS
Max.Concrete Output	m3/h	60	80	90
Max.Concrete Pressure	Mpa	13	16	16
Drive power	kw	130	145	176
Concrete Cylinder(diam× stroke)	mm	¢200/1650	¢200/1800	¢200/1800
Hopper Capacity	m3	0.65	0.65	0.65
Feeding height	mm	1400	1400	1400
Dimension	mm	6000×2000×2200	6300×2000×2200	6300×2000×2200
Weight	kg	6500	6800	7300

What are FAE trailer-mounted concrete pump?

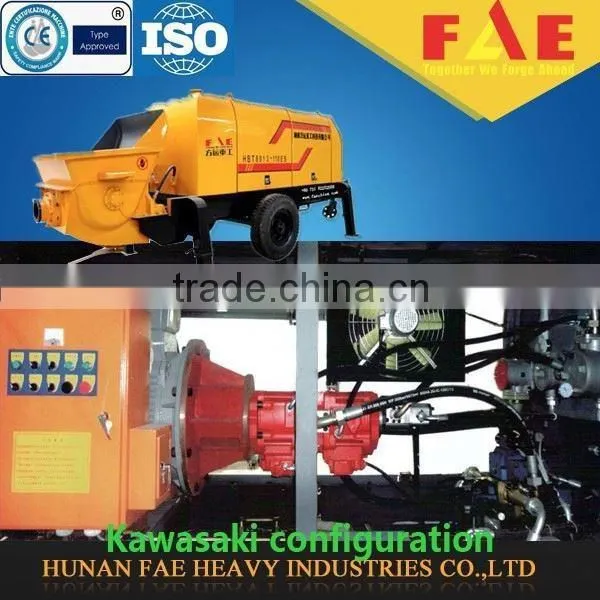

Kawasaki configuration

Kawasaki main pump/ Germany BESEN hydraulic valve/ China brand Motor

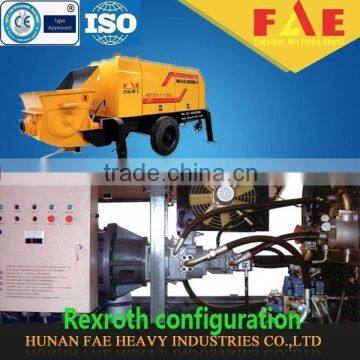

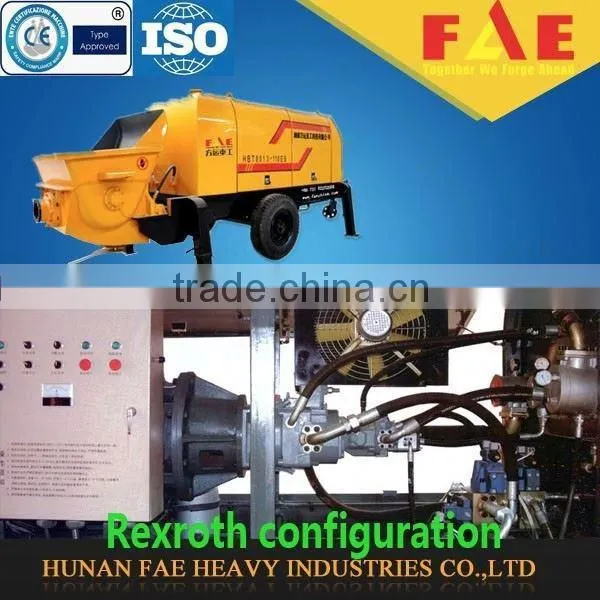

Rexroth configuration

Rexroth main oil pump/ rexroth hydraulic valve/ China brand Motor

Truck mounted concrete pump

Technical Data	Model	HBC80.11.110S	HBT90.14.161RS
Max.Concrete Output	m³/h	80	90
Max.Concrete Pressure	Mpa	11	14
Drive power	kw	110	161
Concrete Cylinder(diam× stroke)	mm	¢230/1650	¢230/1650
Hopper Capacity	m³	0.8	0.8
Feeding height	mm	1400	1400
Dimension	mm	8715×2490×3020	8715×2490×3020
Weight	kg	11000	11000
