Rmote Area Gps Tracker Iridium Sbd Tracking Unit

Specifications

[     Rmote area gps tracker iridium sbd tracking unit     ]

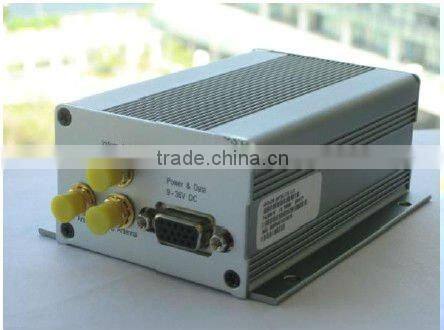

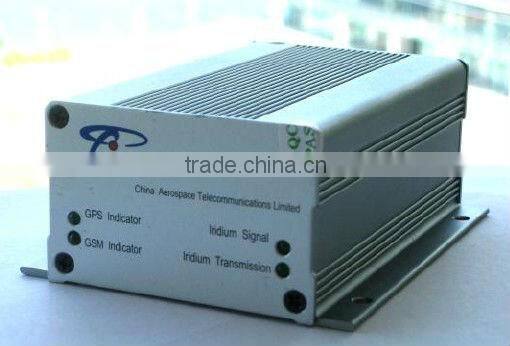

Iridium & GSM/GPRS Tracking System SAT802 includes following components: SAT802 host, power supply & data cable group, Iridium antenna, GSM antenna, GPS antenna, installation parts (contains fuse with base, mounting screw, Velcro), user manual (Including warranty card).

-----------------------------------------------------------   Features   -----------------------------------------------------

· Dual mode communication: iridium SBD and GPRS

· Communication channel selection: auto choosing communication channel, GPRS is top priority

· Supports transparent two-way data transmission

· Full coverage in global, no blind area

· Very high reliability and relatively low in communication cost

----------------------------------------------------------  Parameters  ------------------------------------------------------

· Working power: 9 to 33V DC

· Power consumption: 1W

· Transmitting power: <1.75W

· Communication interface: RS232, 9600bps baud rate 8N1 (customizable)

· Uplink data: maximum of 340 characters

· Downlink data: maximum of 270 characters

· Transmission delay: 10 to 60 seconds

· Dimensions (L x H x W): 109 x 46 x 68mm

----------------------------------------------------------  Applications  ----------------------------------------------------

District:

Oceans, mountains, deserts, isolated islands, glaciers, polar, and other remote area without communication network.

Application:

Oil exploration, industrial control, geological surveying, engineering surveying, scientific exploration, marine/terrestrial environmental monitoring, disaster monitoring and forecasting, marine emergency rescue, marine safety alarm system/Ship Security Alert System (SSAS), vehicle /vessels positioning and tracking, rescue and disaster relief, emergencies handling/communications/rescue command , etc
