Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth

Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth thumbnail-1
Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth thumbnail-2
Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth thumbnail-3
Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth thumbnail-4
Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth thumbnail-5
Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth thumbnail-6
Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth photo-1

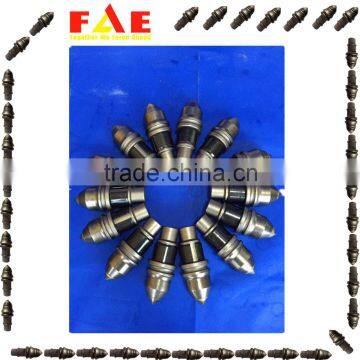

Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth photo-2

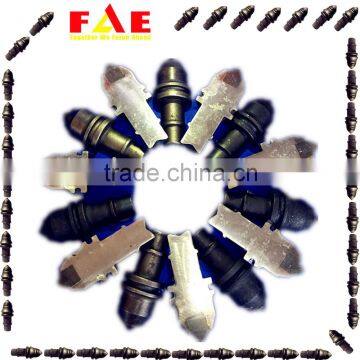

Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth photo-3
Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth photo-4

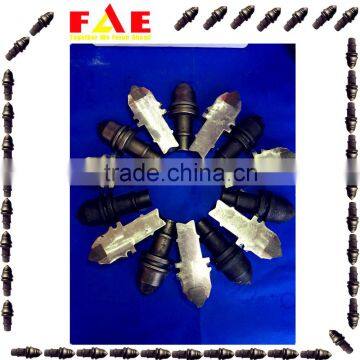

Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth photo-5
Round Shank Rock Chisel Drill Bit Pile Drilling Rig B47K Bullet Teeth photo-6
US$ 3 - 30 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
FAE, FAE
Model Number:
B47K bullet
Contact Supplier Request Quote Chat Now
Hunan Fae Heavy Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name FAE, FAE
Model Number B47K bullet

round shank rock chisel drill bit pile drilling rig B47K bullet teeth

Product Description



round shank rock chisel drill bit pile drilling rig B47K bullet teeth



Rock drilling tool



Alloy steel Body, made by material ASTM4142 or 42CrMo,heat treatment with 40-44HRC hardness, has high toughness and wearable character.Tip with above 50 HRC hardness is made from Low press Sintered,and Suitable Grade Selected according to the Target Projects,Which are to make sure the good performance during working.



The products adapt to the machine with all the performance features such as a high feed rate,a long service life and short tool changing times.Together with the parts supply assurance,a high daily production volume,and above-average economy is guaranteed.



The complete tools apply for foundation creation,solid wall,water well  drilling,trenching,mining,tunnelling.



drill bit b47k22h

Soil Drill Bit Parameters:

Part No. Description Unit Weight (Kg)
25T Soil Tooth 2.3
25VIP Chisel Soil Tooth 2.8
25HD Heavy Duty Soil Tooth 2.6
855-25 Holder 3.3
25PN/LK Pin/Lock 0.3
16R55 Soil Tooth 0.8
C355 Holder 3.2
35S Soil Tooth 4.5
3803-35 Holder 7.3
35PN/LK Pin/Lock 0.5
4K34 Soil Tooth 2.5
P18 Holder  3.4
4K34PN/LK Pin/Lock 0.3
18TL Soil Tooth 1.2
18HD Heavy Duty Soil Tooth 1.3
833-18 Holder 1.8
18PN/LK Pin/Lock 0.2



Rock Drill Bit Parameters:



Part No. Description Unit Weight (Kg)
B47K17.5H Rock Drilling Bit 1.2
B47K19.5H Rock Drilling Bit 1.2
B47K22H Rock Drilling Bit 1.2
B47K17.5C/60 Rock Drilling Bit 1.5
B43H Holder 2.2
B85 Holder 2.2
B85/2 Holder with Carbide tips 2.4
C31HD Rock Drilling Bit 0.5
C30 Holder 1.2







 Together We Forge Ahead





round shank rock chisel drill bit pile drilling rig B47K bullet teeth

What FAE bullet teeth could offer?

We can supply all kinds of:

-coal mining bits;

-welding bar;

-round shank bits with holders;

-flat cutter teeth with sleeves and holders;

-etc use for drill auger;



which have:

-high strength;

-long life features;

-high wear resistance;





Steel body is made by:

-material 42CrMo;

-heat treatment with 40-44HRC hardness;

-high toughness and wearable character;



Tip is made by:

-material tungsten carbide;

-Suitable Grade Selected;

-tip via forging, welding, heat treatment;





Widely using on foundation drilling tools, excavation machines,shearers, continuous mines etc.



Could manufacture according to your drawing or samples.



What are FAE bullet teeth?

round shank rock chisel drill bit pile drilling rig B47K bullet teethround shank rock chisel drill bit pile drilling rig B47K bullet teethround shank rock chisel drill bit pile drilling rig B47K bullet teethround shank rock chisel drill bit pile drilling rig B47K bullet teeth

round shank rock chisel drill bit pile drilling rig B47K bullet teeth

What are FAE clay drill cutting teeth?

round shank rock chisel drill bit pile drilling rig B47K bullet teeth





Packaging & Shipping



What is FAE packing and delivery of bullet teeth?

round shank rock chisel drill bit pile drilling rig B47K bullet teeth



 round shank rock chisel drill bit pile drilling rig B47K bullet teeth

Our Services

Why Choose us?

  round shank rock chisel drill bit pile drilling rig B47K bullet teeth

Company Information

Company View

round shank rock chisel drill bit pile drilling rig B47K bullet teeth

Our Certifications

round shank rock chisel drill bit pile drilling rig B47K bullet teeth

What are FAE  business cooperation?

 round shank rock chisel drill bit pile drilling rig B47K bullet teeth

FAQ

FAQ

round shank rock chisel drill bit pile drilling rig B47K bullet teeth

How to Contact Us?

Send your Inquiry Details in the Below, Click "Send" Now!!



Awaiting for your inquiry,we will response you at the first time!



Please contact us from this page or find our contacts from the Index page of our site.





FAE website for your further information:



WWW.FAECHINA.COM
