API oilfield fishing tools drilling junk sub/die tap&die collar

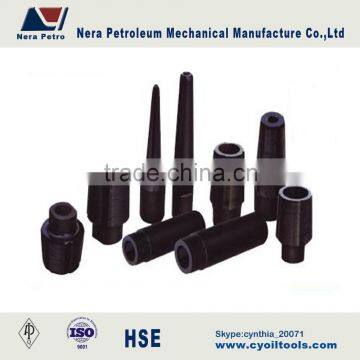

Die Tap
Description :
The Taper Tap is an internal catch fishing tool designed to retrieve tubular members from the well bore. It is the most economical tool of its kind for freeing fish.The Taper Tap is manufactured from high grade alloy and specially heat treated.The basic Taper Tap is a single piece construction. The hardened cutting teeth (wickers) are carbo-nitrided and machined on a shallow taper (approximately 3/4 inch per foot) to provide an excellent grip for light duty pick-up jobs. Plain watertight wickers are furnished as standard equipment. Fluted wickers are also available on request.
Main Models:
Type |
Connection |
Overall Length |
Fishing I.D.Range |
GZ-NC31-LH-1 |
NC31 LH |
1607.5(63-9/32) |
39~53(1-17/32~2-3/32) |
GZ-NC31-2 |
NC31 |
557(22-23/32) |
56~60(2-13/64~2-23/64) |
GZ-NC38-7 |
NC38 |
860(33-55/64) |
84~106(3-5/16~4-11/64) |
GZ-NC38-8 |
NC38 |
860(33-55/64) |
119~141(4-11/16~5-35/64) |
GZ-NC38-9 |
NC38 |
950(37-13/32) |
97~125(3-13/16~4-59/64) |
GZ-NC38-10 |
NC38 |
710(27-61/64) |
87~100(3-27/64~3-15/16) |
GZ-NC50-11 |
NC50 |
1130(44-31/64) |
82.5~121(3-1/4~4-49/64) |
GZ-NC50-12 |
NC50 |
930(36-5/8) |
69.9~95.3(2-3/4~3-3/4) |
Die collar
Description :
The die collar is an external catch fishing tool designed to retrieved bubular members from the well bore. It is the most economical tool of its kind for freeing fish. The die collar is manufactured from high alloy steel and special heat treated. The hardened cutting teeth(wickers) are carbo-nitrided and machined on a shallow taper to provide an excellent grip for light duty pick-up jobs. Plain watertight wickers are furnished as standard equipment. Fluted wickers are also available on request.
When the hole size is considerably larger than the diameter of the fish, a guide can be assemble to the bottom of the die collar.
Main Models:
Type |
Connection |
Catch Size (mm) |
MZ-NC26 |
NC26 |
41~52 |
MZ-NC26 |
NC26 |
50~68 |
MZ-NC26 |
NC26 |
62~80 |
MZ-NC31 |
NC31 |
69~73 |
MZ-NC31 |
NC31 |
71~82 |
MZ-NC31 |
NC31 |
76~95 |
MZ-NC38 |
NC38 |
86~108 |
MZ-NC38 |
NC38 |
95~118 |
MZ-NC50 |
NC50 |
110~135 |
MZ-4 1/2FH |
4 1/2FH |
114 |
MZ-5 1/2FH |
5 1/2FH |
141 |
MZ-6 5/8REG |
6 5/8REG |
168 |
