Help CenterHPLD-98-HPLD-280 Hydraulic Pressure Damping Load, API Standard
Related Products
-
HOT SALES! Casing Milling Tool, API StandardUS$ 500 - 2,000MOQ: 1 Piece -
HOT SALES! Integral Spiral Blade Stabilizer, API StandardUS$ 1,000 - 5,000MOQ: 1 Piece
-
MWD/LWD Non-magnetic Short Crust, API StandardUS$ 1 - 10,000MOQ: 1 Piece
-
Crossover Sub for Well Drilling, API StandardUS$ 100 - 1,000MOQ: 1 Piece
-
Non-magnetic Sub, API StandardUS$ 1 - 10,000MOQ: 1 Piece
Nara Petroleum Mechanical Manufacture Co. Ltd, estabished in 2007 and located in the industrial park of Chinese second largest oil field in Dongying City-Shengli Oil Field, is a high-tech private limited liability company which takes the lead in developing, manufacturing and selling oil machinery.
Well-structured and practical, the product has won the National Utility Model Patent Certificate, and the patent number is:ZL2008 2 0226259.8.

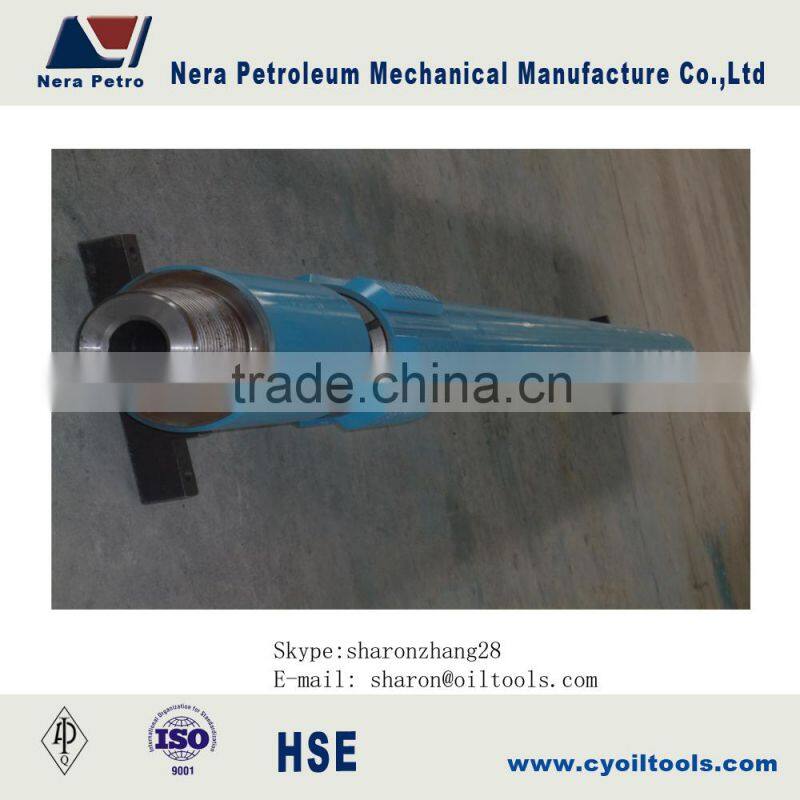

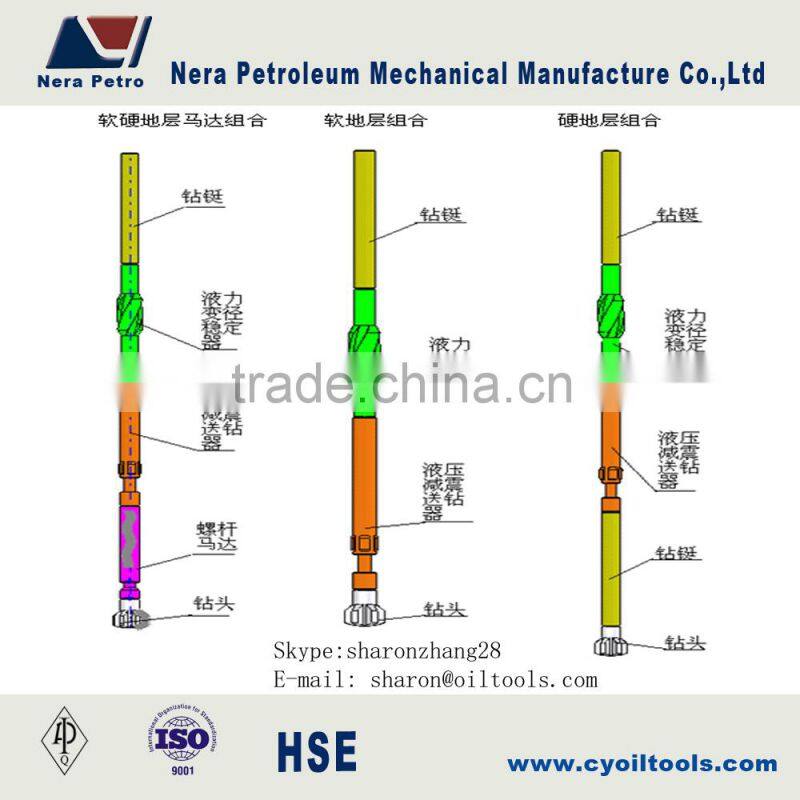

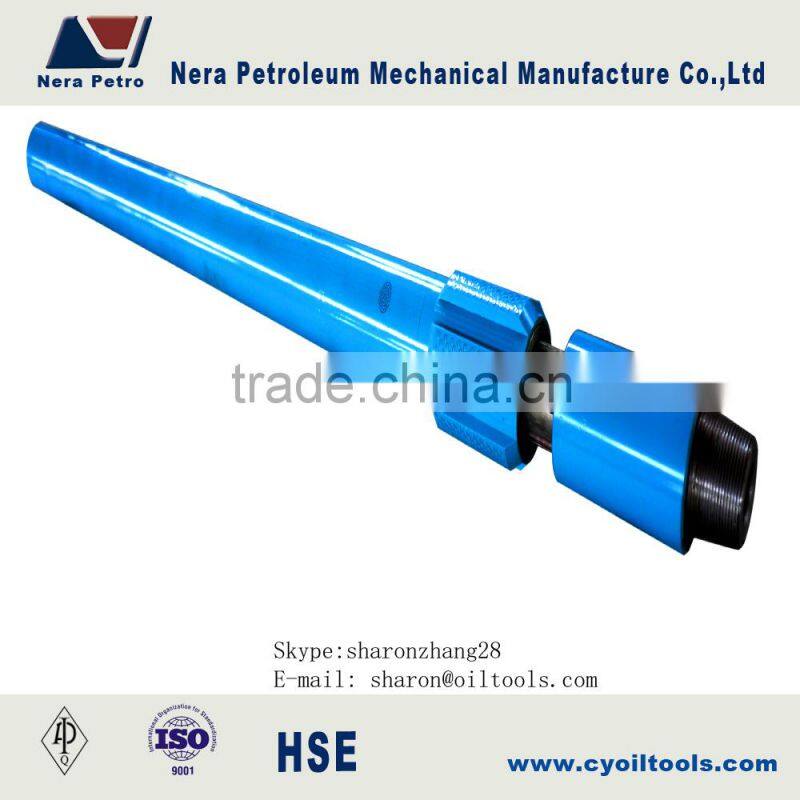

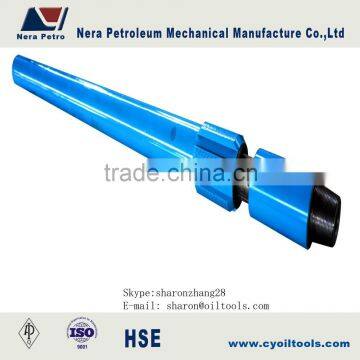

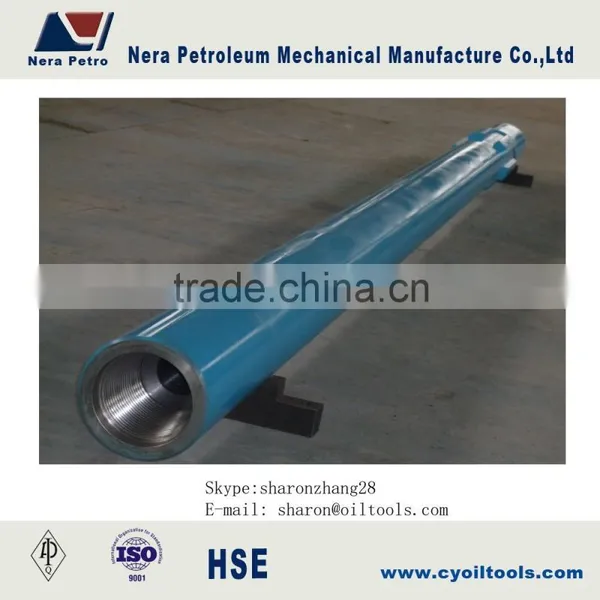

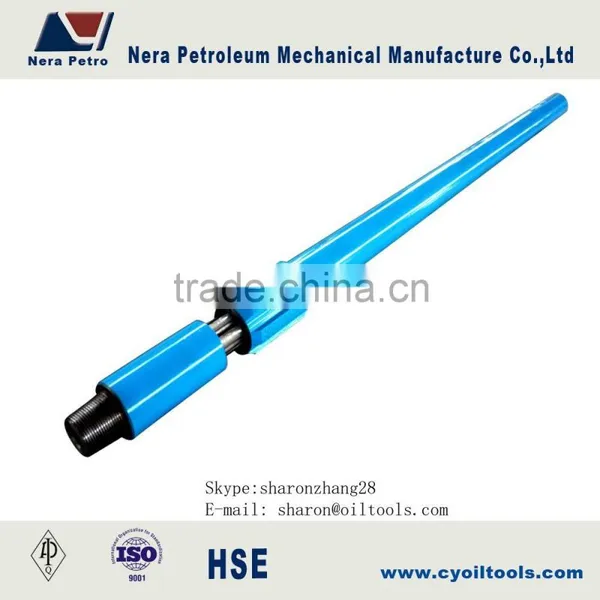

It is a downhole tool for petroleum and gas drilling, and it is also a downhole tool that circulating drill liquid pressure works on drill bit. It has the functions of damping, bit feeding automatically and deviation preventing, as well as speeding up drilling, reducing labor intensity, protection of drill bit and drill tools. It can recruit the pressure loss in slide drilling and overcome the difficult in adding pressure so that it is quite suitable for difficulty solution to adding pressure and straight well anti-deviation and drilling fast in extended reach well,horizontal well, directional well and post hole, as well as suitable for and absorbing shocking in drilling. It can also recruit the pressure and absorb shock in common straight well to realize the purpose of straight well anti-deviation and drilling fast.
Technical specifications and parameters (adjust to your demands)
| Type | Diameter (mm) | Internal Diameter (mm) | Centering Device Diameter (mm) | Maximum Length (mm) | Length (mm) |
| HPLD-98 | 98±2.0 | 78±2.0 | 116±2.0 | 450±10 | 3200-9600 |
| HPLD-121 | 121±2.0 | 97±2.0 | 150±2.0 | 450±10 | 3200-9600 |
| HPLD-178 | 177.8 ±2.0 | 110 ±2.0 | 214 ±2.0 | 450±10 | 3200-9600 |
| HPLD-203 | 203.2 ±2.0 | 163 ±2.0 | 238 ±2.0 | 500±10 | 3200-9600 |
| HPLD-280 | 280 ±2.0 | 203 ±2.0 | 438 ±2.0 | 500 ±10 | 3200-9600 |

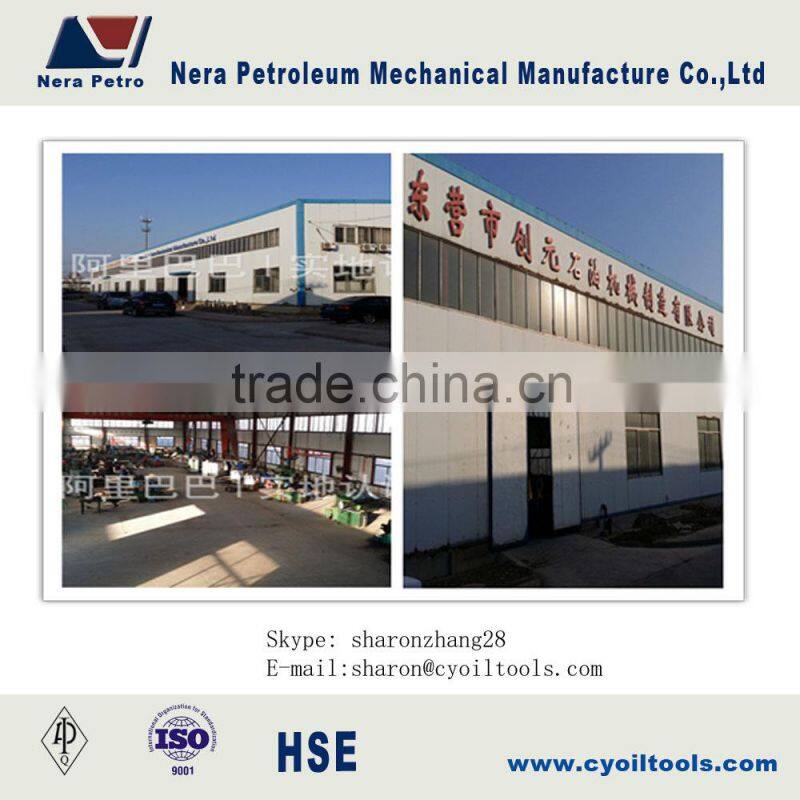

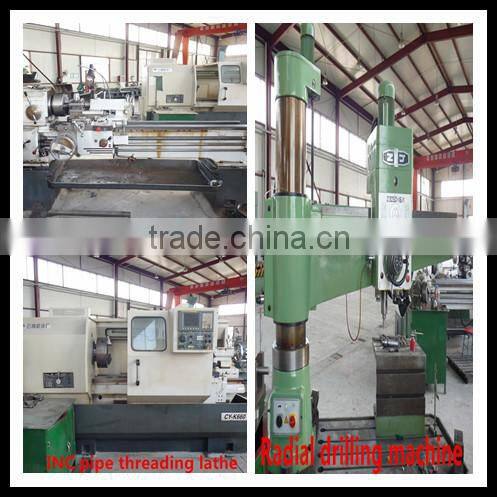

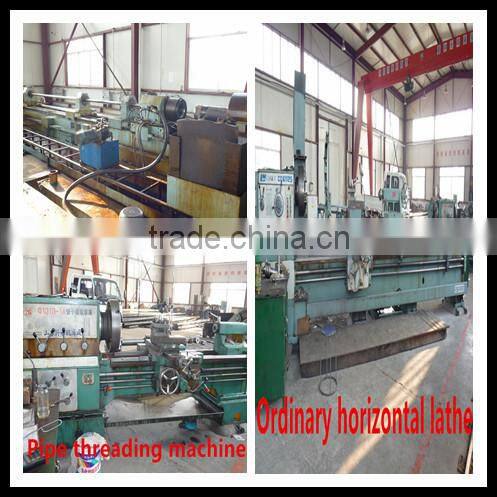

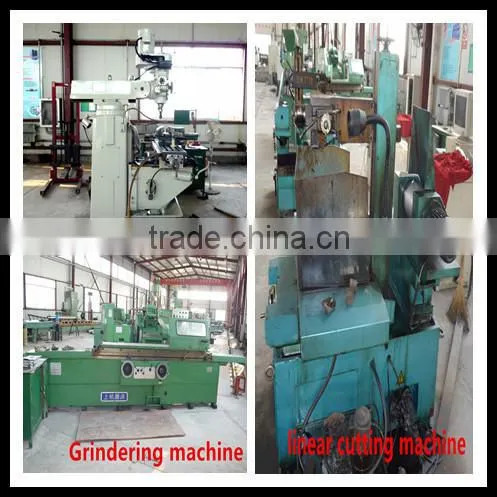

We have adcanced production equipment, which ensures our high-quality products.
We have our own patented products and has passed the attestation of ISO9000:2000 quality system and API, obtained the certificate to enter the net of PetroChina and Sinopec and Class B qualification of PetroChina well control net, and had the honor to win Prizes of Technique Innovation and S&T of Dongying City in 2009.

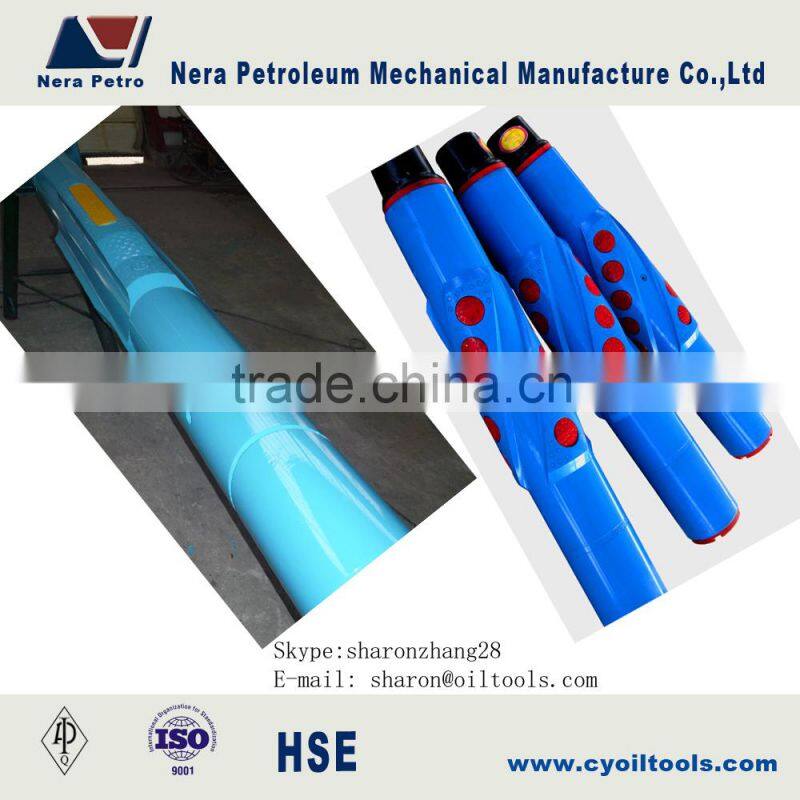

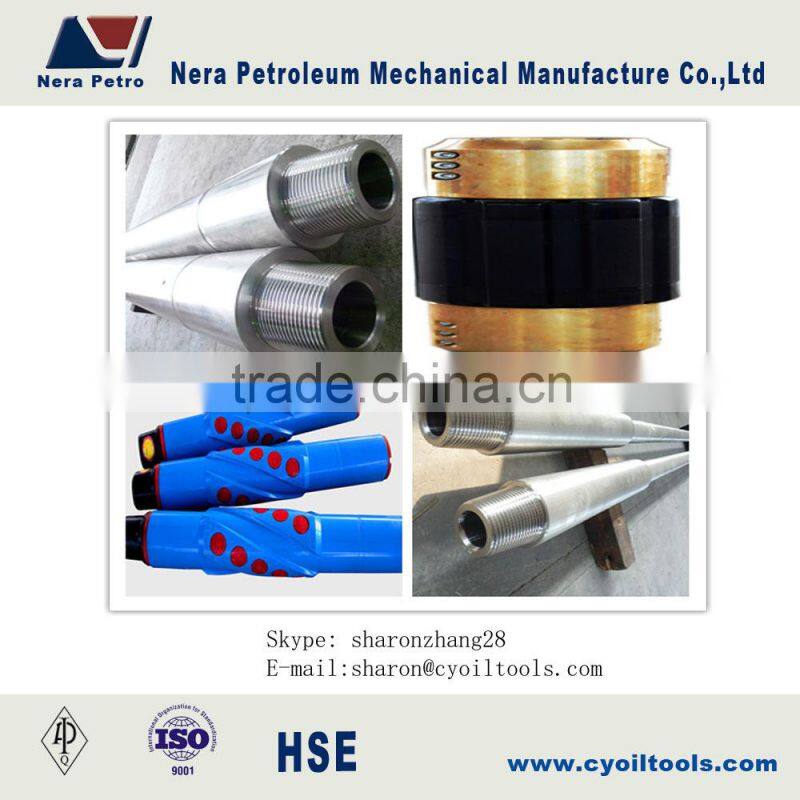

Our main business includes design and manufacture of downhole drilling tools and wired MWD equipment, manufacture and sales of oil pipe and screw drilling tools, and main products include hydraulic pressure damping load, oil pressure tapered stabilizer, adjustable tapered stabilizer, IBOP, flapper type float valve, arrow check valve,casing protector,casing milling tool, adjustable tapered stabilizer, oil pressure tapered stabilizer, nonmagnetic drill collar and so on, totally over 30 series and 10 categories.
We will package and ship products according to your requirements.
Service contributes to quality and quality contributes to confidence, which is our enterpress slogan and mission. We have developed a complete, transplantable enterprise management and operation mode of design, production and after-sale service, with the spirit of "unity, progressive, innovative and efficient," and design tools of three-dimensional solid, finite element analysis, motion simulation and so on.
We will try our best to provide you best service! Looking forward to cooperate with you!
Sharon
Nera Petroleum Mechanical Manufacture Co., Ltd
Add:No. 2 Juzhou Road, Dongying Developing Zone, Dongying, Shandong, China (Mainland)
Mobile NO.: 15066013625
Tel: 86-0546-8175080
Fax: 86-0546-8175070
Skype: sharonzhang28
