Help CenterBleaching Earth Filter Press-FAFP SERIES
Related Products
-
Filter Press for Palm Oil Filtering-FAFP SERIESUS$ 30,000 - 60,000MOQ: 1 Set -
Filtro Prensa-FAFP SERIESUS$ 30,000 - 60,000MOQ: 1 Set
-
Filter Press Equipment/membrane Filter Press in Oil Industry-FAFP SERIESUS$ 30,000 - 60,000MOQ: 1 Set
-
Membrane Filter Press Manufacturer in China-FAFP SERIESUS$ 30,000 - 60,000MOQ: 1 Set
-
FAFP Series--beverage Industry Filter PressUS$ 30,000 - 60,000MOQ: 1 Set

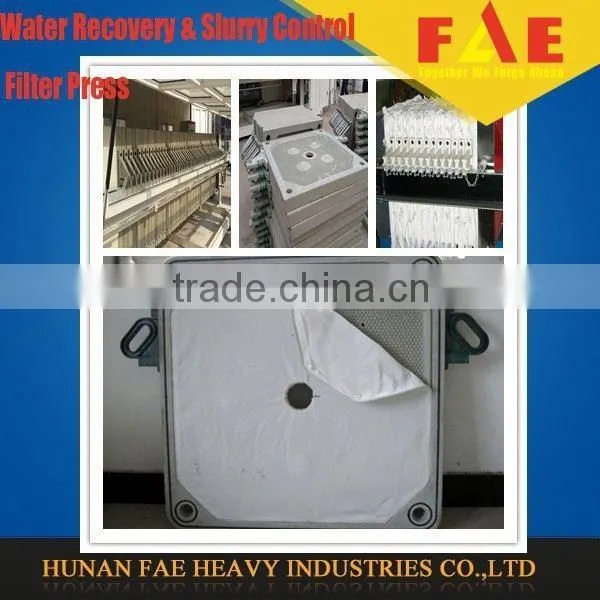

FAE Water Recovery & Slurry Control Filter Press
FAFP 1500
FAFP 1000
What FAE could offer?
Working Theory
Filter press is used for solid~liquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and liquid are separated through filtrating media (filter cloth).
1~Filter presses generally work in a "batch" manner. The term "batch" refers to the fact the cycle must be stopped to discharge the collected "filter cake" prior to restarting a cycle. "Pressure" is created by the feed pump in the separation process.
2~The plates are clamped together, then a pump starts feeding the slurry into the filter press to complete a filtering cycle and produce a batch of solid filtered material, called the filter cake. The stack of plates is opened, solid is removed, and the stack of plates is re-clamped and the filtering cycle is repeated.
Filtration Process
The process of one batch filtration is:
pressing -- feeding material – filtering -- discharging cake.

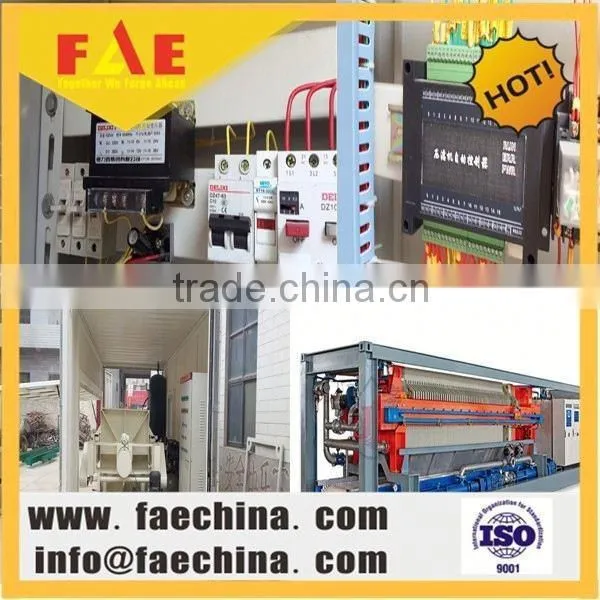

1~Closing of the filter plates: when start the press button on the PLC control cabinet,the moving head plates will be activated by the hydraulic clamping the plates.
2~Filling: The sludge (or slurry) will be pumped into the chamber one by one. When all chambers are full off filter cake, the filtration is finished.

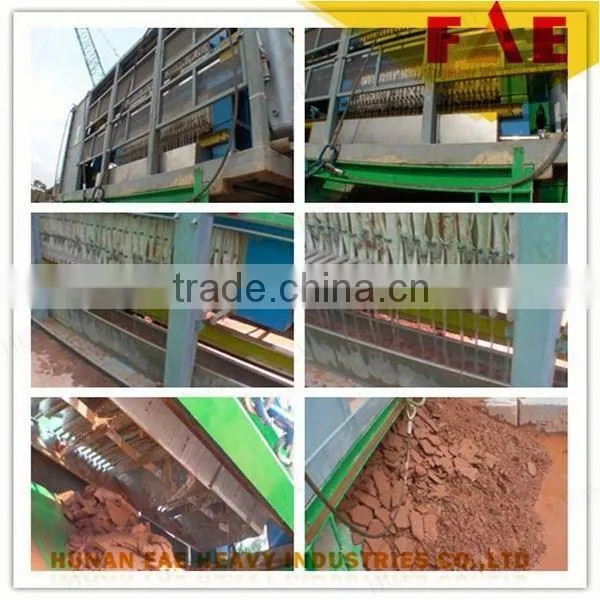

3~Filter opening: The moving head is drawn back to disengage the first filtration chamber. The cake falls will drop from the plates under gravity.
The auto pulling system pulls out the plates one by one.
What are FAE filter press models?
| NAME & MODE AND DESCRIPTION | QUANTITY |
| Filter press main machine | 1 set |
| Cake Chute | optional |
| Air Compressor | 1 unit |
| Centrifugal slurry feeding pump | 1 unit |
| Valves on the pipings and external SS pipings on the filter press | 1 set |
| Filter cloth | 1 set |
FAFP1000
| NAME | SPECIFICATION AND MODEL |
| External Dimension of Filter Press | 5700mm(L)×2450mm(W)×2900(H) |
| Weight | 16000KG |
| Supply | 415v |
| Amperage | Delat 103A |
| Flow | 900 liters / min |
| Filter Press Style | Side bars in solid rectangular steel section |
| Plate Size | 1000mm×1000mm |
| No.Of Chamber Filter Plates | 25pcs |
| No.Of Chambers | 24pcs |
| Cake Thickness | 32mm |
| Designed Chamber Volume | 1.46 cubi meter |
| Max Designed Temperature | 60 centi degree |
| Max DEsigned Feeding Pressure | 10 bar |
| Max Hydraulic Pressing Pressure | 25 Mpa |
| Max HYdraulic Protecting Pressure | 29 Mpa |
| Hydraulic Cylinder Type | Single Cylinder Double acting |
| Plate Shifting Driving Method |
Multiple plate shifting design /single plate shifting one by one |
| Feeding Port Inlet Positiong | center |
| Materials | Parts in contact with product : PP |
| Other parts:stainless steel or CS | |
| Surface Protection | 1 rust removing by sandbalsting , 1 ply prime coat |
| 1 ply top epoxy coat 1 top coat |
FAFP1500
| NAME | SPECIFICATION AND MODEL |
| External Dimension of Filter Press | 7300mm(L)×2450mm(W)×2900(H) |
| Weight | 17000KG |
| Supply | 415v |
| Amperage | Delat 103A |
| Flow | 900 liters / min |
| Filter Press Style | Side bars in solid rectangular steel section |
| Plate Size | 1500mm×1500mm |
| No.Of Chamber Filter Plates | 35pcs |
| No.Of Chambers | 34pcs |
| Cake Thickness | 35mm |
| Designed Chamber Volume | 2.125 cubi meter |
| Max Designed Temperature | 60 centi degree |
| Max DEsigned Feeding Pressure | 10 bar |
| Max Hydraulic Pressing Pressure | 25 Mpa |
| Max HYdraulic Protecting Pressure | 29 Mpa |
| Hydraulic Cylinder Type | Double acting |
| Plate Shifting Driving Method |
Multiple plate shifting design /single plate shifting one by one |
| Feeding Port Inlet Positiong | center |
| Materials | Parts in contact with product : PP |
| Other parts:stainless steel or CS | |
| Surface Protection | 1 rust removing by sandbalsting , 1 ply prime coat |
| 1 ply top epoxy coat 1 top coat |
What are FAE filter press?
What are its production details?

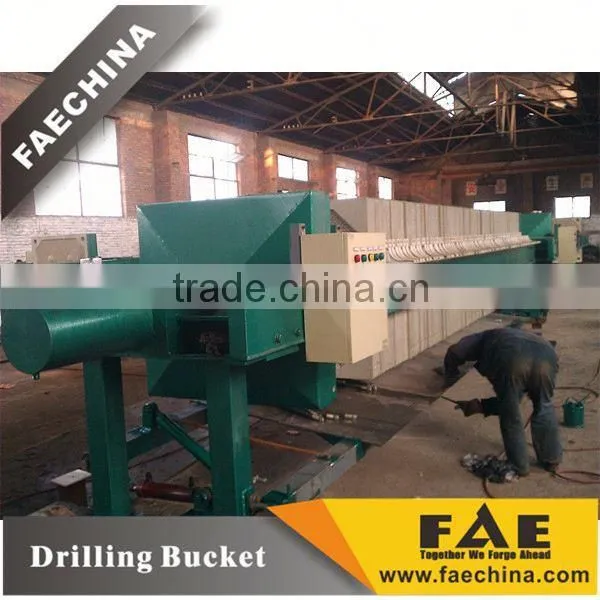

What are its construction?
What are FAE delivery?
What are FAE Exhibition Show?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
