API mud pump spare parts air pulsation dampener
- 1000 Piece / Pieces per Month
- Qingdao Tianjin Shanghai etc
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | Nera | Model Number: | KB-75 |
Type: | Other, Spare parts | Machine Type: | Drilling Equipment | Certification: | Other, API&ISO |
Material: | Other, Alloy steel, etc | Processing Type: | Forging | Use: | Well Drilling |
Product Description

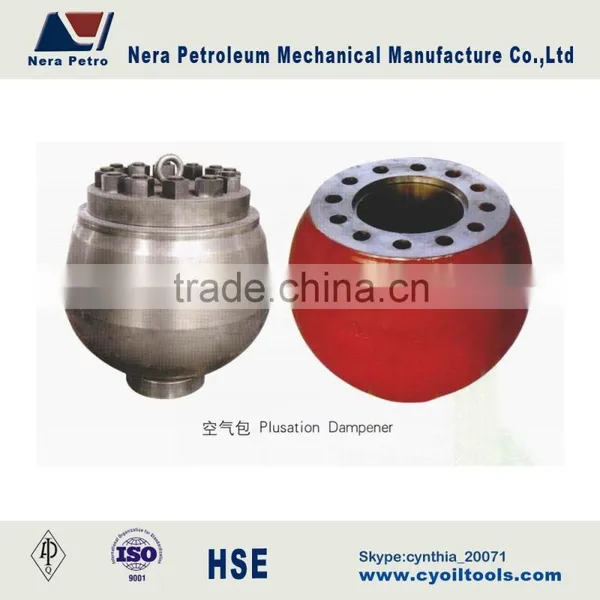

API mud pump spare parts air pulsation dampener
we can supply pulsation dampener used in drill mud pump .such as F-series, QZ3NB series , SL3NBseries , QZ-9 mud pump.
A discharge pulsation dampener consists of the case shell, air chamber and gas charing connection etc; the case shell is of integral forging steel. The air chamber shall be inflated with nitrogen gas or air. The gas charing pressure is 650psi, the unevenness of the pressure relief can be kept under 5%.
Technical Parameters:
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
Type | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting |
Rated Power | 373kw | 596kw | 735kw | 969kw | 1193kw |
500HP | 800HP | 1000HP | 1300HP | 1600HP | |
Rated Speed | 165 SPM | 150 SPM | 140 SPM | 120 SPM | 120 SPM |
Stroke(mm/inch) | 190/7 1/2 | 228.6/9 | 254/10 | 305/12 | 305/12 |
Max.Liner Dia. | 170/6 3/4 | 170/6 3/4 | 170/6 3/4 | 180/7 | 180/7 |
Gear Type | Herringbone | Herringbone | Herringbone | Herringbone | Herringbone |
Valve Pot | API-5 | API-6 | API-6 | API-7 | API-7 |
Gear Ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
Suction Inlet | 203/8 | 254/10 | 305/12 | 305/12 | 305/12 |
Discharge Inlet | 4Flange | 5Flange | 5Flange | 5Flange | 5Flange |
5000 psi | 5000 psi | 5000 psi | 5000 psi | 5000 psi | |
Lubrication | Forced& | Forced& | Forced& | Forced& | Forced& |
Splash | Splash | Splash | Splash | Splash | |
Max. Pressure | 27.2Mpa | 34.5Mpa | 34.5Mpa | 34.5Mpa | 35Mpa |
3945 psi | 5000 psi | 5000 psi | 5000 psi | 5080 psi | |
Overall Size(in) | 144*106*86 | 156*79*66 | 163*89*70 | 174*121*78 | 181*129*106 |
Weight(kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
