FAE Large Dia. DTH drilling rig
- 10 Unit / Units per Month
- China Port/Shanghai/shenzhen/Tianjin
- T/T Credit Card
- Internal gear 40cr 41A0076 for Liugong loader parts ,axle parts
- Liugong Wheel loader parts Liugong spare parts SP104817 Gland
- Liugong Spare parts Castle nut 03B0050 Standard parts for Liugong Wheel loader parts
- Conical roller bearing 23B0019 Standard parts for Liugong Wheel loader parts
- Liugong spare parts flasher relay 31B0005 fpr Liugong Wheel loader parts
- Air tank assembly ,pressure controller 13C0015 for Liugong Wheel loader parts
Product Details
Place of Origin: | Hunan, China | Brand Name: | FAE | Model Number: | Large Dia. DTH drilling rig |
Product Description
FAE Large Dia. DTH drilling rig
What FAE could offer?
A Down-The-Hole Drill is called DTH in most drilling terms.
The down~the~hole drill is basically a mini that screws on the bottom of a .
The fast hammer action breaks hard rock into small flakes and dust and is blown clear by the air exhaust from the DTH hammer.
The DTH hammer is one of the fastest ways to drill hard rock.
DTH is short for "down~the~hole".
Since the DTH method was originally developed to drill large~diameter holes downwards in surface~drilling applications, its name originated from the fact that the percussion mechanism followed the bit down into thehole.

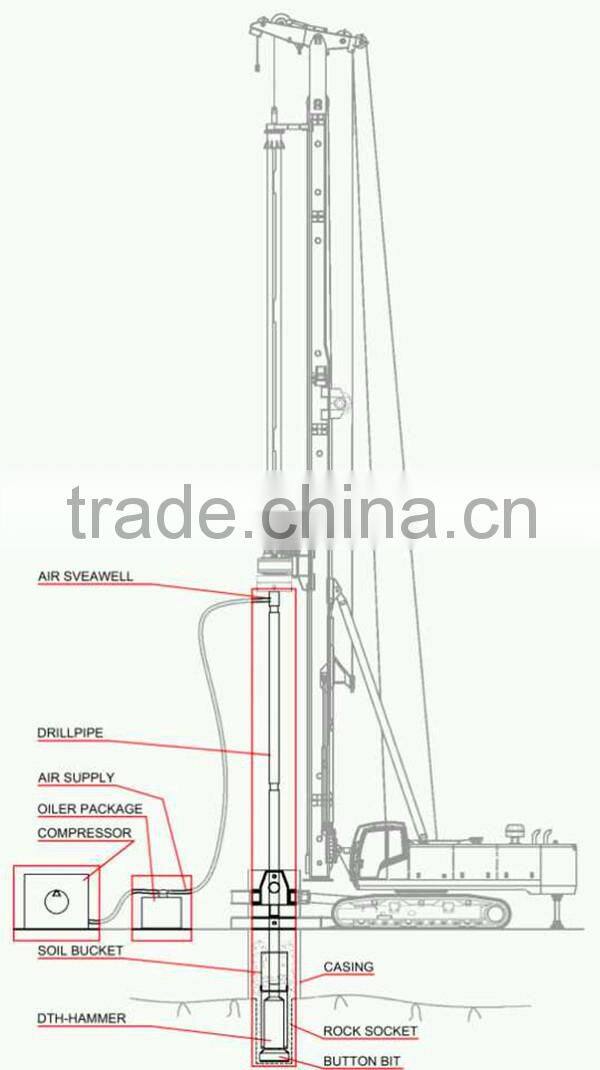

In DTH drilling, the percussion mechanism~commonly called the hammer - is located directly behind the drill bit.
The drill pipes transmit the necessary feed force and rotation to hammer and bit plus or fluids for the hammer and flushing of cuttings.
The drill pipes are added to the drill string successively behind the hammer as the hole gets deeper.
The piston strikes the impact surface of the bit directly, while the hammer casing gives straight and stable guidance of the drill bit.
This means that the impact energy does not have to pass through any joints at all. The impact energy therefore is not lost in joints allowing for much deeper percussion drilling.

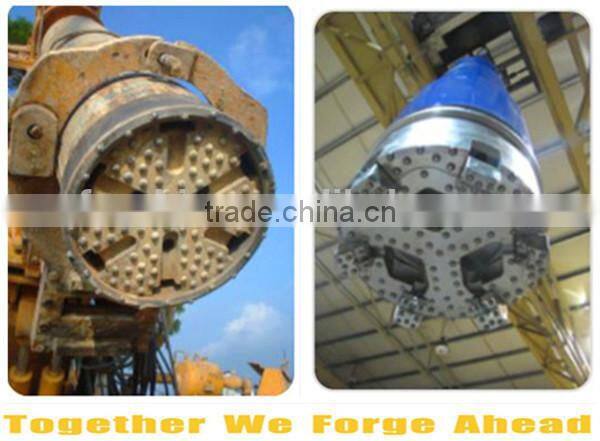

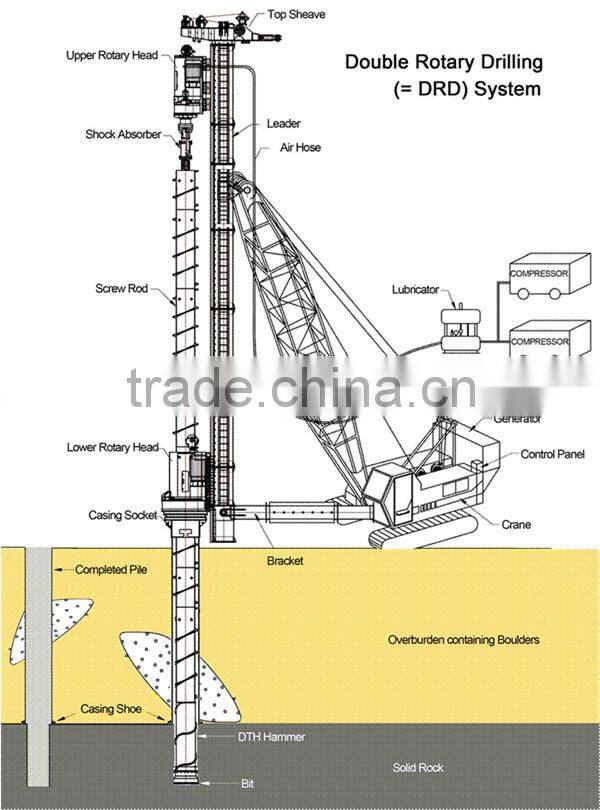

FAE product range includes application of large diameter Down The Hammers to be in stalled on high capacity rigs, with long mast stroke, dedicated rotary tables and clamping assembly, capable to guarantee great levels of productivity to drill large piles into rock formations.
FAE DTH application is designed to use DTH system to drill piles up 1200 mm diameter with a single stroke of the rotary up to 24 meters.

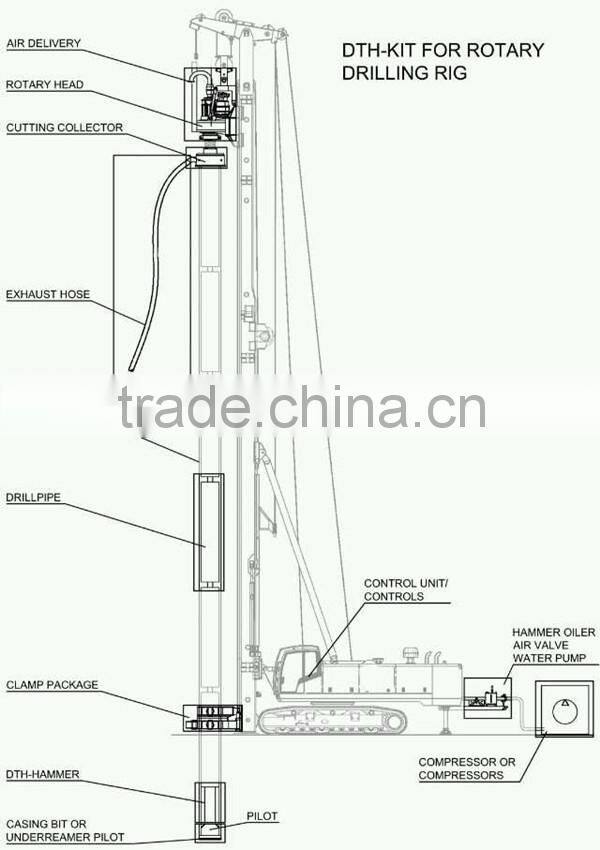

The units are equipped with crowd/extraction winch mounted on the mast, rotary head with gear box for drilling speed control, dust collector cap, lower clamps assembly composed of one section of blocking clamp and one section of joint breaking clamp.
The system is fully hydraulically integrated with the base rig with the option to provide a wireless remote control for the drilling operations.
Application field:
~Limestone,rock formations or harder strata with obstructions
~Possibility to socket into hard rock
~Secant piles possibility
~Existing concrete and steel reinforcement cutting
Features:
~Faster production in hard strata a rock formation
~Large diameter with single bit compared to standard micro piles
~Greater production and timing
~Collection of dust and pulverized materials
~Enhanced verticality control
~No fluids to sustain the pile are required
~Full control of piles verticality by means of electronic device
What are FAE Large Dia. DTH drilling rig models?

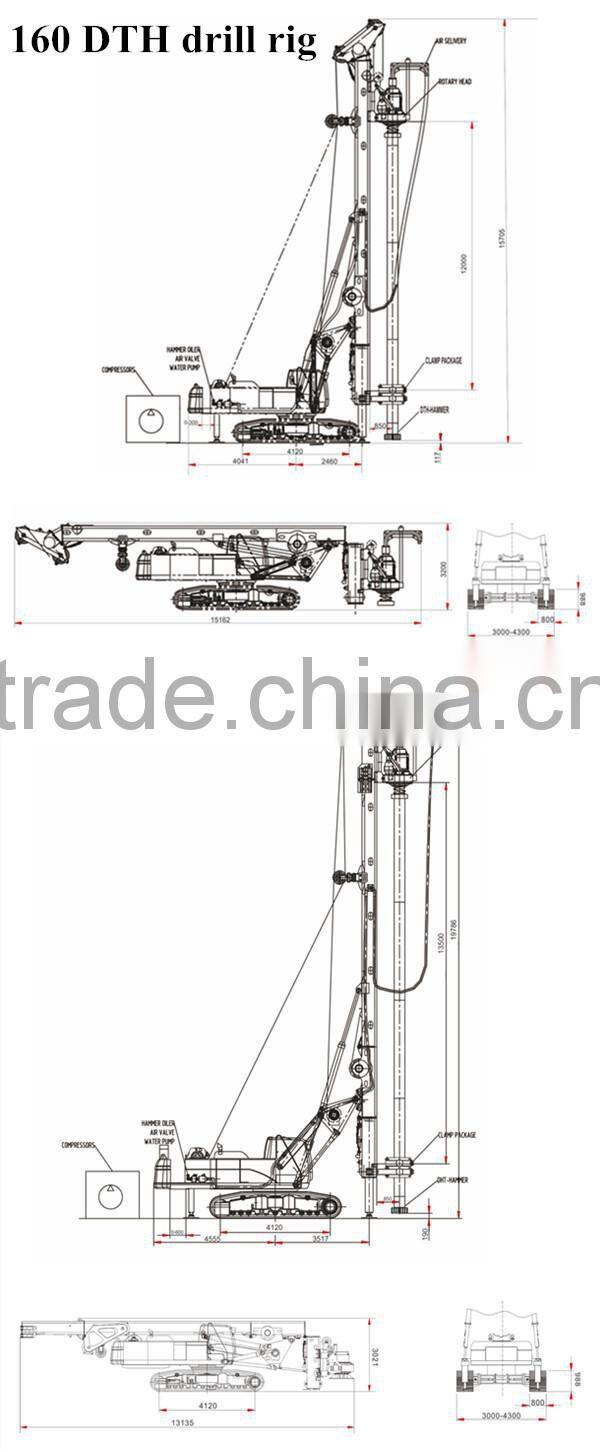

LARGE DIA.DTH FUNCTION Specification | FAR200MR | FAR160MR | ||
OPERATING WEIGHT | Weight in working condition | ton | 58 | 32 |
Diameter max | mm | 800 | 600 | |
Depth max | m | 12 | 12 | |
ALR OILER | Mode(Hydrauic control) | QIU T-118 | QIU T-118 | |
Oiler let in pipe Diameter | mm | 118 | 118 | |
Working Temperature | . | "-20 to 70" | "-20 to 70" | |
MAST | Front/Rear inclination | . | (+5°/-15) | (+5°/-15) |
Sider inclination | . | ±4° | ±4° | |
Overlength | mm | 19780 | 13560 | |
CROWD SYSTEM | Rotary stoke | mm | 13500 | 12000 |
Crowd force | KN | 180 | 120 | |
Extraction force | KN | 400 | 320 | |
ROTARY HEAD | Moder(Hydraulic gear pump recycling cooling system | FAR-DTH | FAR-DTH | |
Back head API REG | mm | 203.2 | 203.2 | |
Air swivel box API REG | MM | 177.8 | 177.8 | |
Max torgue | KNM | 150 | 150 | |
Max driling speed | RPM | 6-26 | 6-24 | |
UNDERCARRIAGE (CAT329D) | Crawlers Length | mm | 4120 | 4120 |
Crawlers Width | mm | 3000-4300 | 3000-4300 | |
DIESEL ENGINE | Model | type | CAT C7 | CAT C6.4 |
Rated power | kw(HP) | 187 | 110 | |
HYDRAULIC PUMPS | Main pumps | mpa | 35 | 35 |
Auxliary pumps | mpa | 4 | 4 | |
MAIN WINCH | 1st Layer norminal line pull | KN | 200 | 320 |
1st Layer norminal rope speed | m/min | 58 | 58 | |
Rope diameter | mm | 28 | 28 | |
SERVICE WINCH | 1st Layer norminal line pull | KN | 76 | 60 |
1st Layer norminal rope speed | m/min | 58 | 58 | |
Rope diameter | mm | 20 | 20 | |
DIMENSION & WEIGHT | Transport width | mm | 3000 | 3000 |
Transport height | mm | 3200 | 3121 | |
Transport length | mm | 15162 | 14457 | |
Weight | ton | 43 | 63 | |
Min working radius | mm | 4010 | 4060 | |
Remark: 1 Seprate powerpack is available 2 Korea DTH hammer is available and price negotiable |

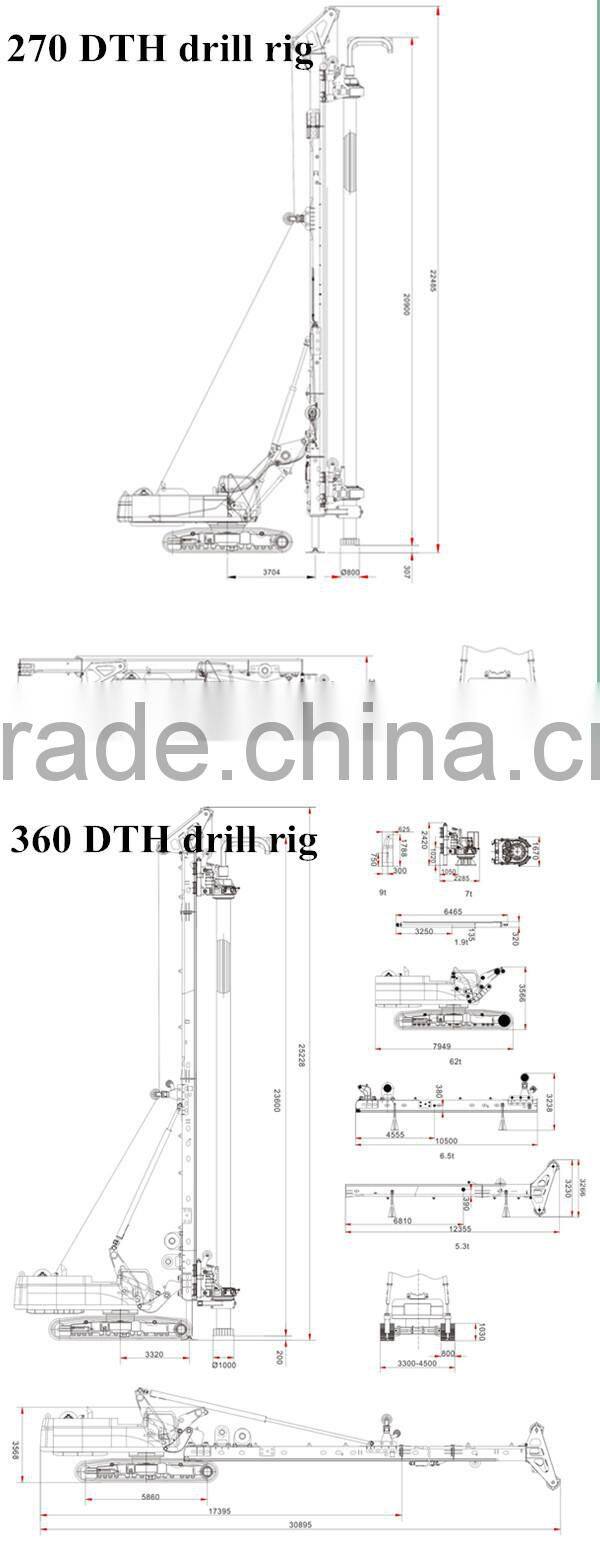

LARGE DIA.DTH FUNCTION Specification | FAR270MR | FAR350MR | ||
DOWN THE HOLE HAMMER | Troque max | kn.m | 15 | 15 |
Diameter max | mm | 1200 | 1400 | |
Depth max | m | 80 | 100 | |
Extraction force max | kn | 530 | 730 | |
ROTARY HEAD | Max driling speed | rpn | 15 | 15 |
MAST | Mast raking forward | . | 5 | 5 |
Mast side forward | . | ±5 | ±5 | |
Mast raking forward | . | 15 | 15 | |
UNDERCARRIAGE (CAT329D) | Crawlers Length | mm | 5190 | 5860 |
Crawlers Width | mm | 3000-4300 | 3000-4500 | |
DIESEL ENGINE | Model | type | CAT C9 | CAT C13 |
Rated power | kw(HP) | 261 | 305 | |
HYDRAULIC PUMPS | Main pumps | mpa | 35 | 35 |
Auxliary pumps | mpa | 4 | 4 | |
MAIN WINCH | 1st Layer norminal line pull | KN | 320 | 340 |
1st Layer norminal rope speed | m/min | 70 | 70 | |
Rope diameter | mm | 32 | 36 | |
SERVICE WINCH | 1st Layer norminal line pull | KN | 115 | 110 |
1st Layer norminal rope speed | m/min | 70 | 90 | |
Rope diameter | mm | 20 | 20 | |
WINCH CROWD | Crowd force(pull down /pull up) | kn | 200/260 | 320/320 |
Pull down stroke | mm | `13500 | 13500 | |
DIMENSION & WEIGHT | Transport width | mm | 3000 | 3300 |
Transport height | mm | 3347 | 3500 | |
Transport length | mm | 16050 | 18395 | |
Weight | ton | 70 | 105 | |
Min working radius | mm | 4060 | 4200 | |
Remark: 1 Seprate powerpack is available 2 Korea DTH hammer is available and price negotiable |

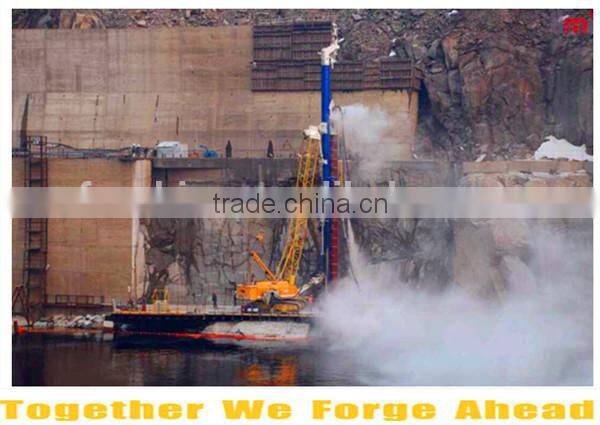

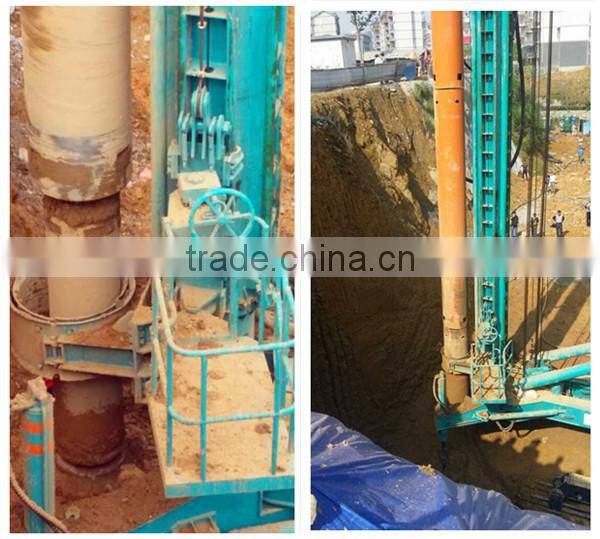

What are FAE job site?
What are FAE drilling rig ?
What are FAE production details?
What are FAE packing?
What are FAE delivery?
Awaiting for your inquiry,we will response you at the first time!
