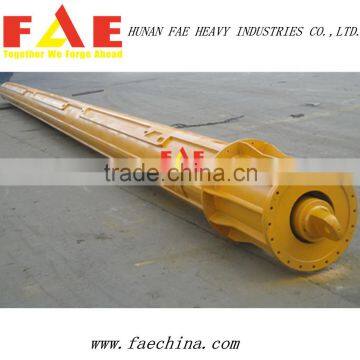

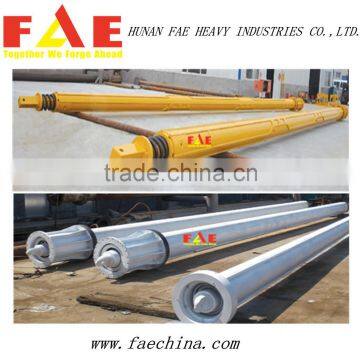

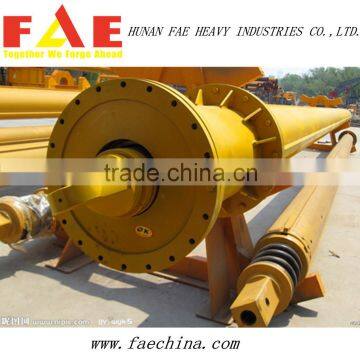

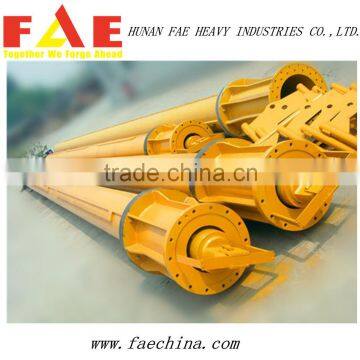

Bauer type New full interlocking kelly bar for piling rig
Specifications
Interlocking and Friction kelly bar:
1.Light weight
2.High strength
3.Good abrasion resistance
4.Cost-effective
What FAE Could offer?
Kelly Bar is the key part of a drilling machine , and its quality directly affects the whole machine based on the rich maunfacturing experience and by absorbing the advanced technology both at home and board, we can produce first-class kelly bars which can be matched with drilling rigs of Bouer, Sany, Soilmec,MAT,IMT,Casagrande,etc
The Features of FAE kelly bar are as follows:
1.Adopt the advanced technology of 6-key design in the world and standard modulor design
2.Equipped with advanced processing facilities . processing technic and manufacturing equipments,DZ kelly bar enjoys a low weight,high strength,high straightness of single bar,thinner tube,smaller inter-tube distance and good resistance.
3.The raw materials are either imported from Germany like the high abrasion resistance materials ,or from chinese top manufacturer such as the seamless steel tube with alloy.Material details as below:
First section :16MN(Q345B)
Second section:16MN (Q345B)
Third section:27 SiMn
Forth section:35 CRMO
There are mainly two types of kelly bars:
1.Interlocking Kelly Bar
2.Frction Kelly Bar
1) interlocking Kelly Bar
Interlocking kelly bars are used with pilling rigs for drilling in dense sand,gravel and weak to strong rock . The interlocking kelly bars can be
fully locked by mechanical locking system on each sectiong. Kelly bars can be equipped with specially designed springs or pressure plates for shock absorbing purpose.
What is the specifications of kelly bar?
Please check details as below:
| Name of product |
EXternal dimeter (mm) |
Pith No |
Length section (m) |
Rated tarquel (KN*M) |
Depth (m) |
| Interlocking kelly bar | 355 | 3 | 10-13 | 180 | 27-36 |
| 377 | 3,4 | 10-12.5 | 220 | 27-44 | |
| 406 | 3,4 | 10-15 | 230 | 27-57 | |
| 419 | 3,4 | 10-15 | 250 | 27-57 | |
| 440 | 3,4 | 10-15 | 250 | 27-57 | |
| 470 | 3,4 | 10-17 | 280 | 27-65 | |
| 508 | 3,4 | 10-17 | 320 | 27-65 | |
| 530 | 3,4 | 10-20 | 380 | 27-76 | |
| 575 | 3,4 | 10-21 | 420 | 27-80 | |
| 630 | 3,4 | 10-21 | 450 | 27-80 |
2) Friction Kelly bar
Friction Kelly bar is another type kelly of bar ,which the external key is composed of 3 or 6 wear -resistant strip without pressunrizing point .This kelly bar can form pressure force when the kelly bar is rotary.can produce peripheral force and the rotary passing down the pressure force,can produce the friction force.This kelly bar has the advantage of opeerating sample .drilling deep ,but with less pressure transmission.So this kelly bar is suitable for the soft and silt layer.
What is the specifications of kelly bar?
| Name of product |
EXternal dimeter (mm) |
Pitch No |
Length section (m) |
Rated tarquel (KN*M) |
Depth (m) |
| Friction kelly bar | 355 | 4,5 | 10-13 | 180 | 36-60 |
| 377 | 4,5 | 10-14 | 200 | 36-65 | |
| 406 | 4,5 | 10-15 | 210 | 36-70 | |
| 419 | 4,5 | 10-15 | 250 | 36-70 | |
| 440 | 4,5 | 10-15 | 250 | 36-70 | |
| 470 | 4,5,6 | 10-17 | 280 | 36-95 | |
| 508 | 4,5,6 | 10-18.5 | 320 | 36-103 | |
| 530 | 4,5,6 | 10-19 | 380 | 36-106 | |
| 575 | 4,5,6 | 10-21 | 420 | 36-120 | |
| 630 | 4,5,6 | 10-21 | 450 | 36-120 |
3) Combined Kelly bar
1.high efficiency
2.low price and best service
Main application: Used in the hard strata above, but soft blow deep pile hole construction.
What is the specification of kelly bar?
| Combined type kelly bar for drilling rig | ||||
| Type | O.Dia.(MM) | Section | Depth(m) | Torque(KN.M) |
| JT12 340-3x13 | 340 | 3 | 36 | 120 |
| JT12 356-3x13 | 356 | 3 | 36 | 120 |
| JT15 377-4x14 | 377 | 4 | 52 | 150 |
| JT20 406-4x14 | 406 | 4 | 52 | 200 |
| JT22 406-4x14 | 406 | 4 | 52 | 220 |
| JT25 445-4x15 | 445 | 4 | 56 | 250 |
| JT25 445-3x15 (Reinforced) | 445 | 3 | 42 | 250 |
| JT25 470-4x15 | 470 | 4 | 56 | 250 |
| JT25 508-4x15 | 508 | 4 | 56 | 250 |
| JT28 508-5x15 | 508 | 5 | 70 | 280 |
What is FAE kelly bar?
What are FAE kelly bar production?
What are FAE accessories of full interlocking kelly bar?
What is the packing and delivering of full interlocking kelly bar?
What are FAE delivery of kelly bar?
Why Choose us?
Company View
Our Certifications
What are FAE business cooperation?
FAQ
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send" Now!!
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
