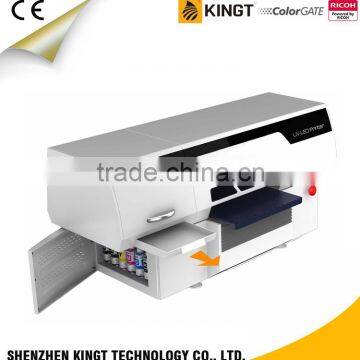

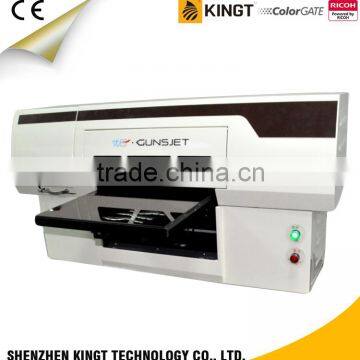

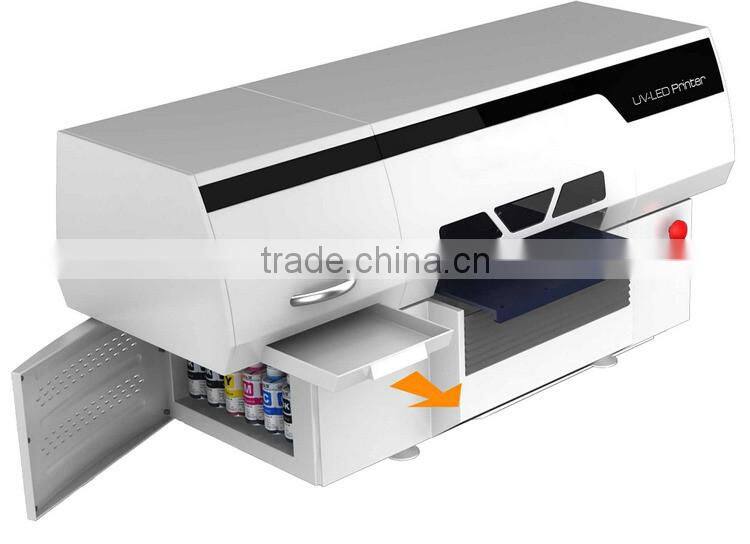

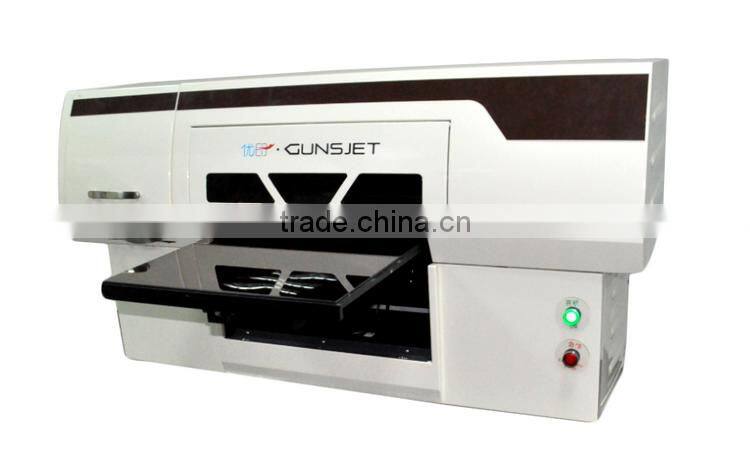

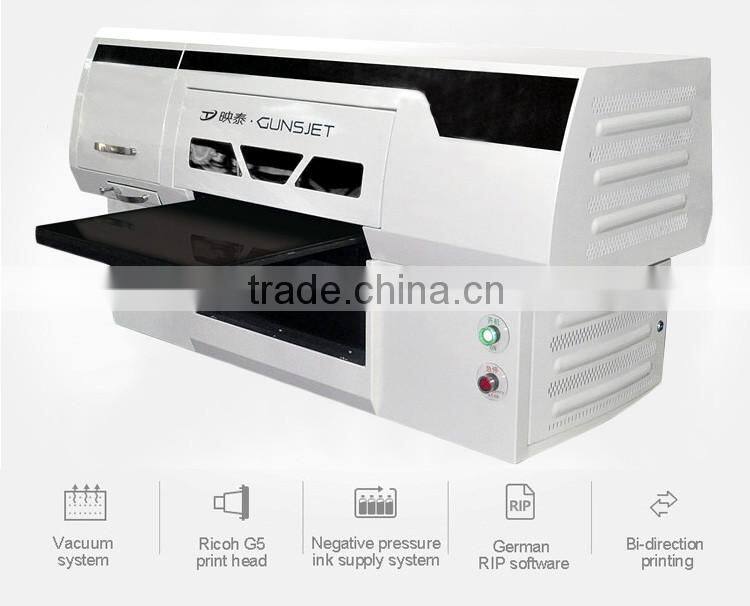

Kingt YG-4550C is a high-value small size UV flatbed inkjet printer of high configuration and less maintain trouble. This effectively fills the gap between light duty, troublesome inkjet printers and the high-end, expensive in-line machines.
It is equipped with industrial, high resolution, piezo-electric gray scale print heads-standard with 3 Ricoh GH2220 heads. Its rugged, industrial design allows continuous printing, 24 x 7, week after week.
Main Features:
| Technical specification | |||||
| Model:YG-4550C SERIES | |||||
| Printhead | 3×Ricoh GH2220 industrial printhead Up to 4×printhead (Optional) | ||||
| Structure | Industrial Structure Frame with Heavy Duty Y-Bar | ||||
| X&Y Motor | High Quality Servo Motors | ||||
| Maximum Print Size | 45cm(Width)×50cm(Length) | ||||
| Printing resolution | 720×600dpi,1200×900dpi | ||||
| Printing direction | Uni and Bi-direction | ||||
| Printing Technology | Variable Dot Printing(Grey Scale Printing) | ||||
| Media | Table.Size | 46cm(Width)×75cm(Length) | |||
| Max.Thickness | 15cm with infrared Sensor Protechtion | ||||
| Weight | 15kgs | ||||
| Ink type | UV LED Curable Inks | ||||
| Ink Color | C,M,Y,K White(Standard), Varnish (Optional) | ||||
| Ink Capacity | 500ml Bottle | ||||
| Ink Supply System | Negative Pressure System(NPS)with Automatic Ink Supply | ||||
| UV Technology | 1×6-8W UV LED Lamp | ||||
| RIP | PhotoPrint(Bundle Version)/ColorGate(Optional) | ||||
| Interface | USB2.0/3.0 | ||||
| Power requirements | 100-110Volt/220-240V,50/60Hz | ||||
| Assembled Dimensions | 890cmx1300cmx650cm | ||||
| Net Weight | 135kgs | ||||
| Printing Speed | |||
| Resolution | 1200 x 720 dpi | 1200 x 720 dpi | |
| Number of Pass | 8Pass | 12Pass | |
| Direction | One-Direction | One-Direction | |
| Speed | 1.5 sq.m / hr | 1 sq. m / hr | |
| Supplies | |||
| ITEM | TYPE | SIZE | PRODUC RANGE |
| KINGT YG Series | UV LED Curable Ink(Flexible/Rigid substrate) | 1L | CMYKLcLmWV |
| KINGT LE Series | UV LED Curable Ink(Rigid Substrate) | 1L | CMYKLcLmWV |
| KINGT YG Primer | / | 1L | / |
| KINGT YG Primer | / | 1L | / |

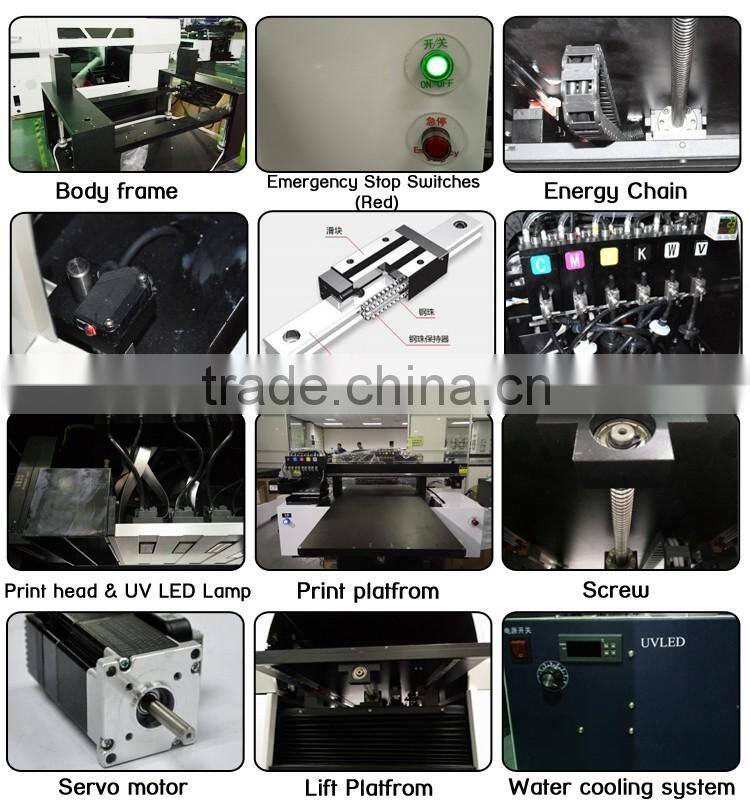

Features:
Automatic media height detection
Industrial Servo Motor
High performance of industrial servo motor provide excellent control of the movement to X-axis and Y-axis, which guarantees precision of mechanical drive.It is also reliable and long lasting.
Negative Pressure System
Numerical control press watch ensures high-quality printing at higher possible firing frequency.A level 2 cache is added,which ensures steady ink supply for high speed continuous printing.
White Ink Circulation System
Keeps color particulates in motion in a bid to improve stability and dispersion of the pigments in the fluid reservoir and ink path.
Low Ink Volume Reminding System
When the ink volume is low, the alarm will light up and beep;
Ink backflow protection
Once ink backflow to negative pressure container, ink supply system will automatically stop ink supply to protect negative pressure system;
Efficient Ink Usage
Automated Ink Circulation System dramatically lowers running costs and supports exceptional image quality even on long print runs. By preventing pigments from settling in the ink lines, it creates consistent ink density and reduces white and clear ink waste.
Continuous printing
when occurs to mass production, only need to preset the times of printing on software, when you need to start another time of printing, you only need to press the continuous printing button, no need operate the printer over and over again.
UV LED technology is very eco-friendly solution with Zero emission of Mercurry, Ozone OR UVC rays. It is economical too, as there is very little maintenance like lamp replacement etc. It helps to reduce energy usage, offer consistent performance and have very long life cycle.
The state-of-the-art lamps facilitate ink curing at very high print speeds.
PRINT CURING SYSTEM:
Single water cooled UV LED lamps
Inks and substrates:
Please note that properties and adhesion, wether resistance etc.of ink and substrates can vary.Please test materials before printing.
Safety notice:
You are handling with UV light source that may harm your health.Do not look directly into the UV light source nor place your hand or expose your skin directly to the UV light source.
All Trademarks or registered trademarks are property of their respective owners.Specifications are subject to change without notice.Some of the screens and printing samples in this catalog are artificial renderings. Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the unit.
Company Overview

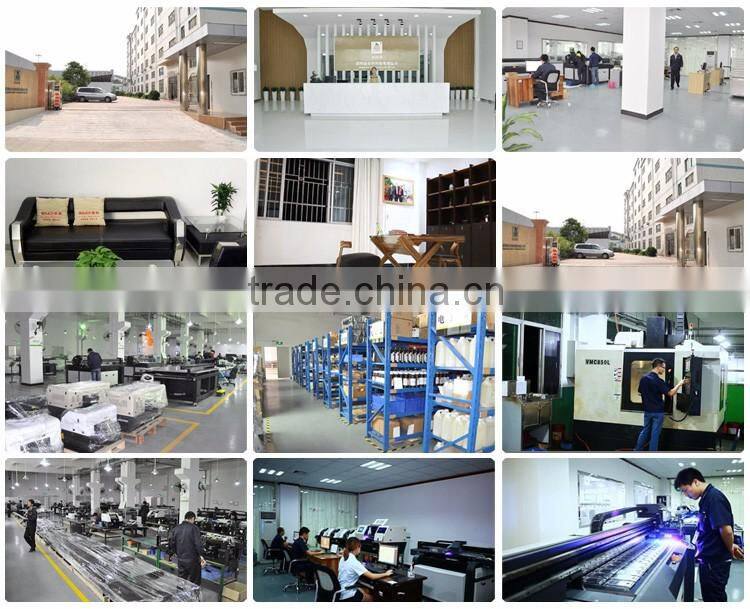

Established in March 2009, Shenzhen Kingt Technology Co.,Ltd is the world’s leading supplier of industrial digital printing equipment and industrial application solutions, and is engaged in design, R&D, production and sales. Our headquarters is located in Pinghu Town Longgang district Shenzhen City., and we have recently opened a branch establishment for the production of new printer at Yiwu. Our company employs more than 100 workers, 60% We specialize in the production for the flat-bed inject color printer and industrial UV relief color printing machine. Our products are in strict accordance with ISO9001 systems and CE standard for quality management guide, which lead to the high printing efficiency, high resolution and perfect printing effect.
Our factory is authorized by Ricoh Japan. 5th December 2014, Leaders of Ricoh Japan came to visit our factory.
CONSTRUCTION:
Industrial construction:
Net weight - 135 kg (approx.)
Crated weigth: 190 kg (approx.)
Uncrated dimensions (in cm): 890x1292x652
Crated dimensions:1020 x1420x855
General warranty* - YG-4550C printer is warranted against defects in materials and workmanship for a period of one year except printhead and consumable (e.g. damper, pump, tube, wiper, filter & etc.)
Packing detail:
* Neutral packing, export standard carton
* Wooden frame will be packed outside
* All of the production are inspected carefully by QC before delivery
Delivery time:
*15-30days after receiving the deposit. It also depends on the quantity odered.
Min order:1 set
