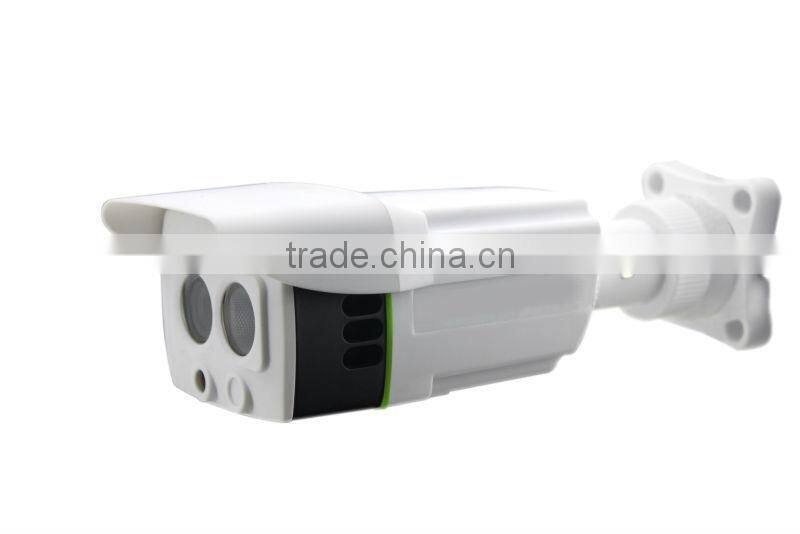

1/3" CMOS top 10 cctv cameras Waterproof 50M IR Distance with IR-CUT Filter Outdoor CCTV Products
Model NO.: R-H232N R-H332N R-H532N
Main feature:
l Professional design for hd network camera, small, beautiful and delicate, best for home security.
l Material: aluminum alloy + plastic, innovative patented heat dissipation structure, make hd camera can works well under high temperature
l 3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.
l Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.
l 3 million pixel HD lens + IR-CUT auto swith in day and night, 3.6mm / 6mm / 8mm lens optional.
l 1pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 25m, excellent performance in dark environment.
l Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.
l Innovate design for build-in audio pickup (external type optional).

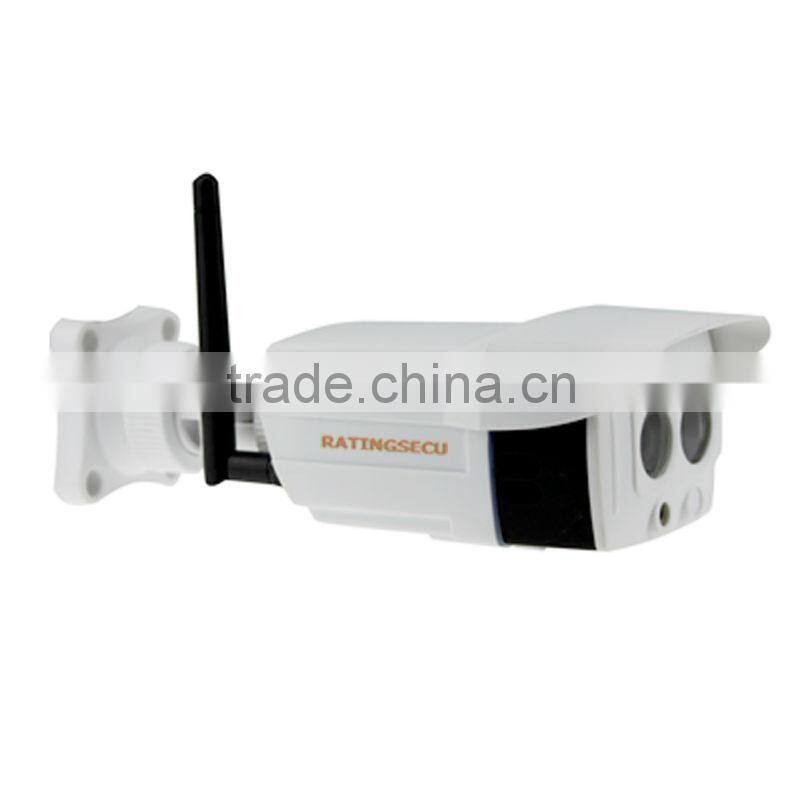

l POE module and WIFI module optional.
l With install bracket, can add waterproof external TF card storage module.
l Exclusive innovation design, support intelligent rotating bracket.
l Support ONVIF protocol, can provide the SDK.
Optional back-end products for the system:
IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.
Technical parameters:
Model: |
R-H232N |
R-H332N |
R-H532N |
||
|
Camera |
Imaging sensor: |
1/4" CMOS progressive scan |
1/3" CMOS progressive scan |
1/2.8" SONY progressive |
|
Signal system: |
PAL / NTSC adjustable |
||||
Scanning mode: |
Progressive scanning |
||||
Illumination: |
Color 0.2 lux, black & white 0.05 lux, IR on 0 lux |
Color 0.2 lux, black & white 0.02 lux, IR on 0 lux |
Color 0.2 lux, black & white 0.02 lux, IR on 0 lux |
||
Lens: |
Standard with 3 million pixel 3.6-8mm fixed focus lens |
||||
Day and night switch: |
IR-CUT dual optical filters auto switch in day and night |
||||
Electronic shutter: |
Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds) |
||||
white balance: |
Auto / manual |
||||
DNR: |
3D-DNR |
||||
Infrared source: |
1pcs SMD array light source+ Finland LEDIL light lens |
||||
Effective night vision distance: |
25 meters (measured value without light condition) |
||||
Compression standard |
Image compression: |
H.264 |
|||
Video bit rate: |
128 Kbps -- 8 Mbps; CBR / VBR adjustable |
||||
Audio compression: |
G.711 / G.726 |
||||
Audio bit rate: |
64 Kbps (G.711) / 16 Kbps (G.726) |
||||
Image |
Max image size: |
1280 x 800 |
1296 x 976 |
1984 x 1225 |
|
Frame rate: |
1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps |
||||
Image adjustment: |
Through IE can adjust Saturation, brightness, contrast, sharpness |
||||
Image mirroring: |
Horizontal mirroring, vertical mirroring |
||||
Scene: |
Auto, indoor, outdoor |
||||
Digital enlarge: |
Can achieve through NVR, P2P hd monitoring management software |
||||
Function |
Storage: |
Support TF card storage |
|||
Interface protocol: |
ONVIF |
||||
Support protocol: |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional) |
||||
|
Intelligent alarm:
|
Motion detection, mask alarm, network cable break , IP address conflict, storage card is full, storage device is wrong |
||||
Audio pickup: |
Can add internal audio pickup, also support external audio pickup |
||||
POE power supply |
Support POE power supply (optional), internal and external type |
||||
WIFI |
Support WIFI function (optional) |
||||
Interface |

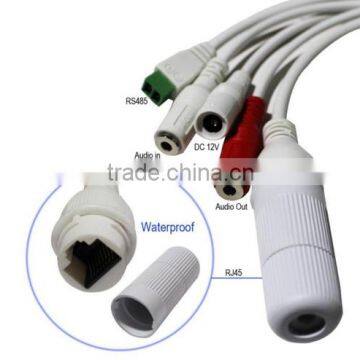

Communication interface: |
1pc RJ45 10M / 100M Adaptive Ethernet port |
|||
Basic parameter |
Power input : |
DC 12V±10% / POE |
|||
Power consumption: |
1W (IR off) / 3.4W (IR on ) |
1.1W / 3.5W (IR on ) |
|||
Working environment: |
-35°C ~ 60°C, humidity is less than 95% (no condensation) |
||||
Size: |
125 mm x 55 mm x 50 mm |
||||
| 1. Price Term: EXW SHENZHEN, CHINA | |||
| 2. Payment Term: T/T, Paypal or West Union. | |||
| 3. Sample Term: Available after customers pay the charges of sample & freight fees. | |||
| 4. Minimum Order Quantity: At least 4 pcs / model after sample order. | |||
| 5. Lead time: 7-30 days. | |||
| 6. Warranty: 24 months after shipment date. | |||
| 7. Free LOGO & LABEL for order more than 50 PCS / model. | |||
1.OEM&ODM Service:Accepted
2.Warranty time: 2 Years
3.After-sale Service:Most through Internet,On-site service if needed.
Company:
1.Are you a factory or trading company?
We are a CCTV Camera factory over 10 years with ISO9001 System audit.
2.Where is your factory ?
Our factory is located in Shenzhen, China, very near to HK.
3.Is the Sample Free?
Sample requirement is accepted,but not free.
4. :How does your factory do on quality control ?
You order will be test 100% before packing and shipping & third party inspetion is welcome
5. What your delivery date?
A:7-20 days usually
6. Can you printing our logo on cable or packing?Do you accept OEM & ODM?
Yes,available.
