Indoor & Outdoor 1080P Full HD IR IP Camera for Security Life
US$ 88 - 88
MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RATINGSECU
Model Number:
R-H535N
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1080P Security Camera IR Bullet Surrveillance Camera ManufacturerUS$ 69 - 88MOQ: 5 Units -
Waterproof 2.4MP Full HD IR IP Security Camera With 1080PUS$ 88 - 88MOQ: 5 Units
-
Topsale 1/3"1.3 Megapixel HD CMOS Wireless Network Fine Surveillance CameraUS$ 58 - 60MOQ: 5 Units
-
Promotional 1/3" 1.3 Megapixel HD CMOS Wireless Network Fine Surveillance CameraUS$ 43 - 58MOQ: 5 Units
-
Best Price 1/3" 1.3 Megapixel HD CMOS Wireless Network Fine Surveillance CameraUS$ 43 - 58MOQ: 5 Units
Place of Origin
Guangdong, China
Brand Name
RATINGSECU
Model Number
R-H535N
Type
Digital Camera
Style
Bullet Camera
Sensor
CMOS
Technology
NetWork
Special Features
Waterproof / Weatherproof
Specifications
1/2.8" SONY 2.4 megapixel HD CMOSresolution: 1920x1080, 0.02LUX low illumination
IR_CUT dual optical filters auto switch
Indoor & Outdoor1080P Full HD IR IP Camera for Security Life
Model NO: R-H535N
Product information:
Features of 2 Megapixel HD IR IP camera weatherproof for school security surveillance system IP camera:
- 1/2.8" SONY 2.4 megapixel HD CMOS,
- resolution: 1920x1080, 0.02LUX low illumination.
- IR_CUT dual optical filters auto switch.
- Hi coding & ISP, H.264 compression.
- 25 frames, real time 1080P, dual streams, built-in WEB, support ONVIF.
- Professional design for outdoor security megapixel ir camera,
- beautiful & easy use.
- Private mold, national patent, excellent heat dissipation,
- aluminum alloy structure.
- 3pcs imported SMD array IR LED (Finland LEDIL light lens),
- effective night vision distance 50-60m, excellent performance in dark environment.
- 3.0 Megapixel HD lens, 6mm / 8mm / 12mm / 16mm optional.
- Can choose bracket or electrical bracket with pan function.
- Size: 155mm (L) x 85mm (W) x 75mm (H)
Main information of 2 Megapixel HD IR IP camera weatherproof for school security surveillance system IP camera:
Professional design for hd network camera, small, beautiful and delicate, best for home security.
Material: aluminum alloy, innovative patented heat dissipation structure, make hd camera can works well under high temperature.
3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.
Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.
3pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 60m, excellent performance in dark environment.
Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.
Exclusive innovation design, can choose our intelligent rotating bracket.
Support ONVIF protocol, can provide the SDK.
Optional back-end products for the system:
IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.
Type of this camera: 2 mega pixel camera, HD IR camera, HD IP camera, weatherproof IP camera, camea for school security, surveillance camera, school ip camera, ip camera for school surveillance, surveillance system camera, 2.0 Megapixel HD IP camera, mega pixel HD camera, 2 Megapixel HD IR IP camera weatherproof for school security surveillance system IP camera.
Model: |
R-H235N |
R-H335N |
R-H535N |
||||
Camera |
Imaging sensor: |
1/4" CMOS progressive scan |
1/3" CMOS progressive scan |
1/2.8" SONY progressive |
|||
Signal system: |
PAL / NTSC adjustable |
||||||
Scanning mode: |
Progressive scanning |
||||||
Illumination: |
Color 0.2 lux, black & white 0.05 lux, IR on 0 lux |
Color 0.2 lux, black & white 0.02 lux, IR on 0 lux |
Color 0.2 lux, black & white 0.02 lux, IR on 0 lux |
||||
Lens: |
Standard with 3 million pixel 6-16mm fixed focus CS lens |
||||||
Day and night switch: |
IR-CUT dual optical filters auto switch in day and night |
||||||
Electronic shutter: |
Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds) |
||||||
White balance: |
Auto / manual |
||||||
DNR: |
3D-DNR |
||||||
IR source: |
3pcs SMD array light source+ Finland LEDIL light lens |
||||||
Effective night vision distance: |
65 meters (measured value without light condition) |
||||||
Standard compression |
Image compression: |
H.264 |
|||||
Video bit rate: |
128 Kbps -- 8 Mbps; CBR / VBR adjustable |
||||||
Audio compression: |
G.711 / G.726 |
||||||
Audio bit rate: |
64 Kbps (G.711) / 16 Kbps (G.726) |
||||||
Image |
Max image size: |
1280 x 800 |
1296 x 976 |
1984 x 1225 |
|||
Frame rate: |
1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps |
||||||
Image adjustment: |
Through IE can adjust Saturation, brightness, contrast, sharpness |
||||||
Image mirroring: |
Horizontal mirroring, vertical mirroring |
||||||
Scene: |
Auto, indoor, outdoor |
||||||
Digital enlarge: |
Can achieve through NVR, P2P hd monitoring management software |
||||||
Function |
Storage: |
No supported TF card storage |
|||||
Interface protocol: |
ONVIF |
||||||
Support protocol: |
TCP / IP, ICMP , HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1 x, QoS, IPv6, Bonjour ( SIP, SRTP optional ) |
||||||
Intelligent alarm: |
Motion detection, shadow alarm, network cable break, IP address conflict, the full of storage card, the wrong of storage card |
||||||
Audio pickup: |
Support add external audio pickup |
||||||
POE power supply: |
Non support |
||||||
WIFI: |
Non support |
||||||
Interface |
Communication interface: |
1pc RJ45 10M/100M Adaptive Ethernet ports |
|||||
Basic parameter |
Power input: |
DC 12V ± 10% |
|||||
Power consumption: |
1W (IR off) / 7.8W (IR on) |
1.1W / 7.9 (IR on) |
|||||
Work environment: |
-35°C ~ 60°C, humidity is less than 95% (no condensation) |
||||||
Size: |
155 mm x 85 mm x 75 mm |
||||||
Picture show:

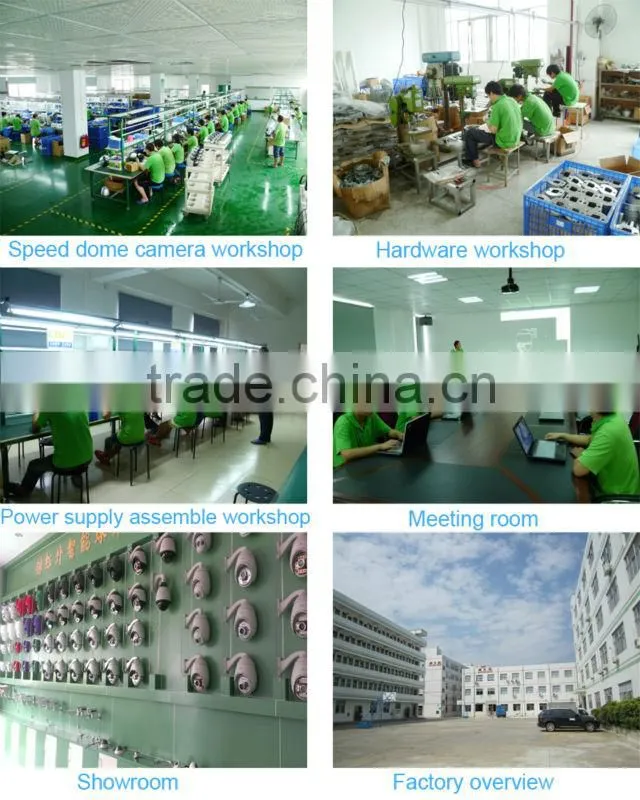

Factory show:
Product aging test room:
Certificate show:
Thanks so much for your time, welcome to contact me for more details if any interested!!
