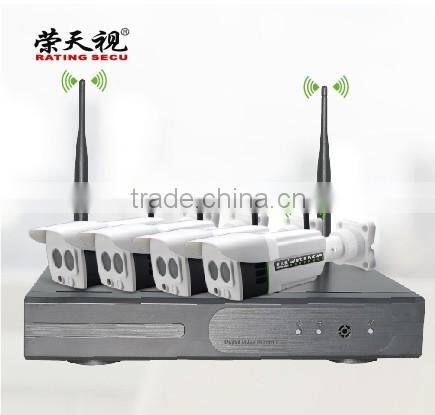

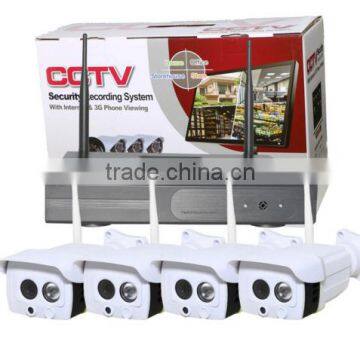

Long range home video security surveillance cctv camera system China, 4ch wifi nvr wireless nvr kit, wifi ip camera with nvr kit
Main features
NVR:
1.Support 4CH 960P,720P input.

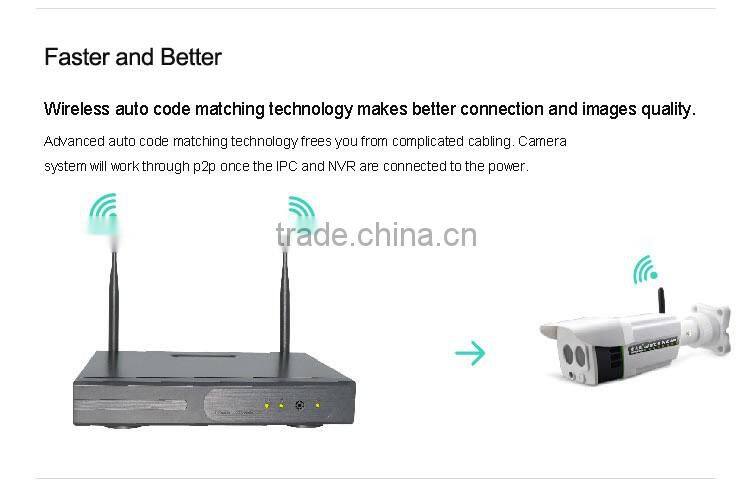

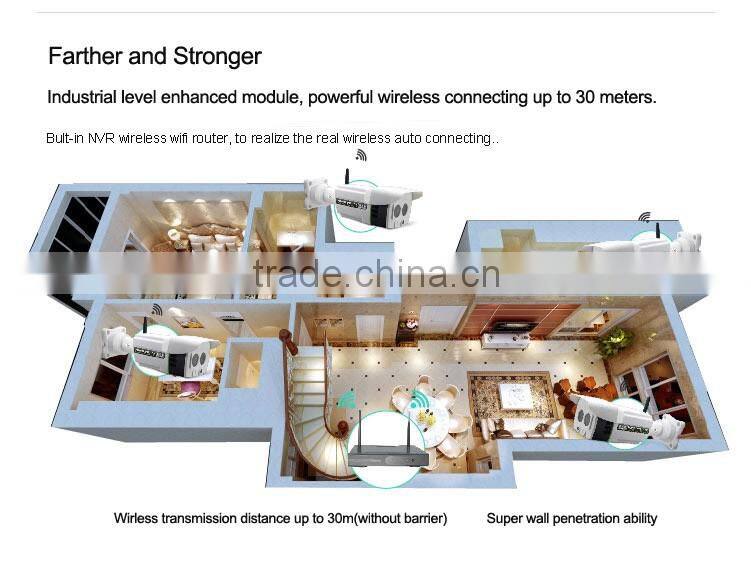

2.Auto connect and match after IP camera plugs in, free from manual wifi setting, wifi distance 30m.

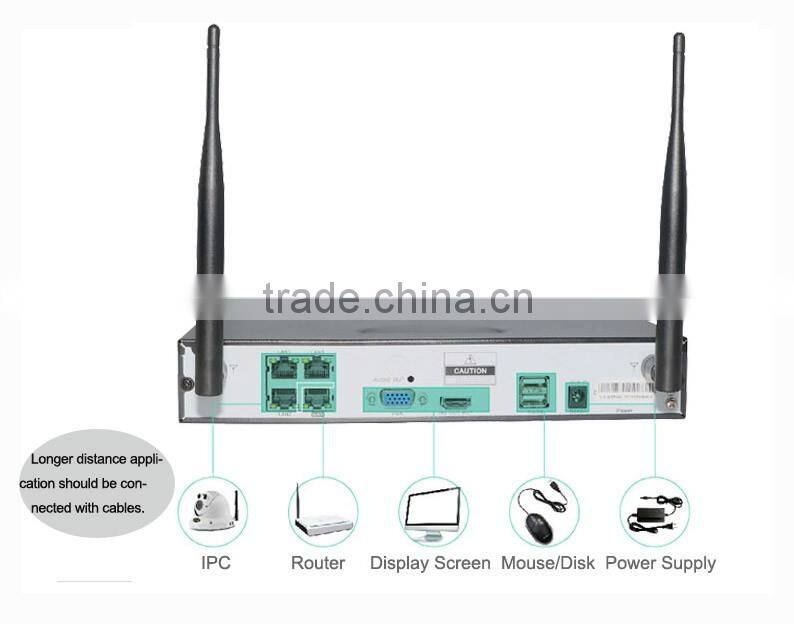

3. 4 RJ45 interfaces(1 WAN interface and 3 spare LAN interfaces accessible to 3 wired IP cameras)
4. Support one 4T Hard Disk, HDMI x1 and VGA x 1
Bullet IP cameras
1. Hisilicon 3518E+AR0130, 1.3Mega Pixel with super low Lux;
2. IR night vision distance 10m
3. External wifi antenna , with 3.6mm HD lens
4. With 4pcs DC12V/1A power supply
1. HUAWEI Hi chipset, professional for NVR, strong and stable performance.2. Industrialized design of the whole body with embedded system software, making it run stably and enjoy a longer lifespan.
3. Support resolution of 1080P, 960P, 720P, VGA, dual Streams.
4. Built-in ONVIF protocol, compatible with most of the manufacturer's major HD IP cameras.

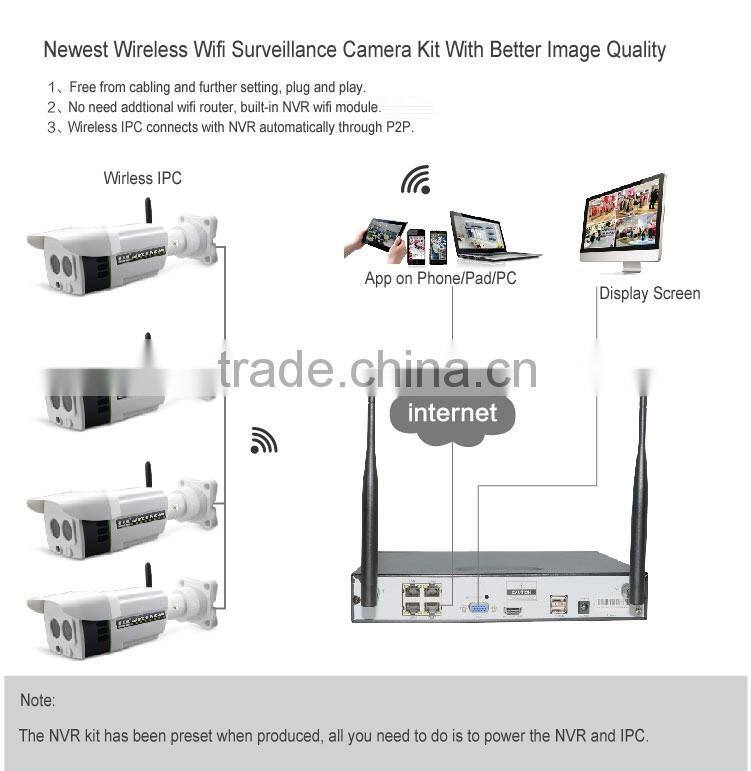

5. NVR and camera connect automatically after plug in, users don't need any setting or operation.6. Free from WIFI matching, long transmission distance and stable performance, free from interference of other WIFI devices.
7. Support both wireless and cable transmission. Cable network can be used to connect IP camera and NVR when long-distance wireless transmission is not enough. 8. P2P remote monitoring enables remote viewing easily without any further setting. PC, tablet and smart phone(including Android and IOS system) are available to view locally and remotely
9. Ordinal written hard disk started from zero, lengthen the lifespan of the hard disk by 2.5 times
10. 4 RJ45 interfaces(1 WAN interface and 3 spare LAN interfaces accessible to 3 wired IP cameras)
11. Built-in wireless router and standard all round direction high power antenna.
Long range wifi nvr kit wireless home security alarm cctv camera system 12V
Processor |
Professiona Huawei hisilicon Industrial Processor |
|
Operating System |
Embedded Linux OS |
|
Video In |
Network Video In |
4CH |
Network Bandwidth |
20Mbps |
|
Video Out |
HDMI Out |
1 CH,Resolution:1024x768,1366x768,1440x900,1920x1080p |
VGA Out |
1 CH,Resolution:1024x768,1366x768,1440x900,1920x1080p |
|
Video Coding & Decoding Parameter |
Video Resolution |
720P/960P |
Sync Playback |
4 CH |
|
Recording |
Record/Capture Mode |
Manual,Schedule,Motion Detection,Alarm Trigger Mode |
Playback Mode |
Instant Playback,Regular Playback,Event Playback |
|
Backup Mode |
Regular Backup |
|
HDD |
Type |
1*SATA Port |
Max. Capacity |
4 TB HDD |
|
External Port |
Network Port |
4*RJ45 10M/100M Self-adaptive network Ports,2*WIFI Ports |
USB Port |
2*USB 2.0 Ports |
|
Network |
Network Protocal |
UPnP(Plug and On),SMTP(Email),PPPoE,DHCP Etc. |
Others |
Power Supply |
DC 12V 3A |
Power (HDD-Excluded) |
≤5W |
|
Working Temperature |
-10℃--+55℃ |
|
Working Humidity |
10%--90% |
|

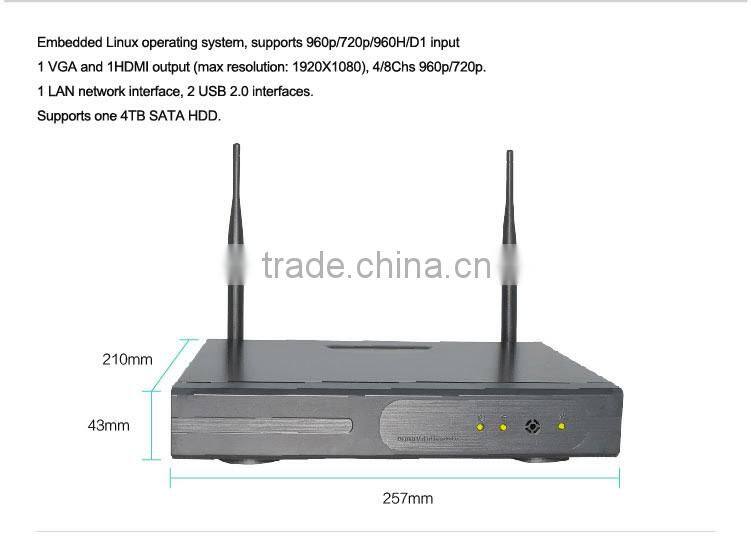

Size |
257mm(L)×210mm(W)×45mm(H) |
|
Weight (HDD-Excluded) |
≤1Kg |
|
Wireless WIFI IP HD Camera Technical Parameters:
Camera |
Imaging sensor: |
1/3" Low illumination 1.3M CMOS |
Signal system: |
PAL / NTSC adjustable |
|
Scanning mode: |
Progressive scanning |
|
Illumination: |
Color 0.05 lux, black & white 0.02 lux, IR on 0 lux |
|
Lens: |
Standard with 3.0 megapixel, 3.6 mm fixed lens |
|
Day and night switch: |
IR-CUT dual optical filters auto switch in day and night |
|
Electronic shutter: |
Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds) |
|
White balance: |
Auto / manual |
|
DNR: |
3D-DNR |
|
IR : |
SMD array light source+ Finland LEDIL light lens |
|
|
Effective night vision distance: |
5-15 meters |
|
|
Standard compression |
Main Processor |
Huawei Hisilicon 3518E |
Image compression: |
H.264 |
|
Video bit rate: |
128 Kbps -- 8 Mbps; CBR / VBR adjustable |
|
Audio compression: |
G.711 / G.726 |
|
Audio bit rate: |
64 Kbps (G.711) / 16 Kbps (G.726) |
|
Image |
Max image size: |
1280 x960 |
Frame rate: |
1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps |
|
Image adjustment: |
Through IE can adjust Saturation, brightness, contrast, sharpness |
|
Image mirroring: |
Horizontal mirroring, vertical mirroring |
|
Scene: |
Auto, indoor, outdoor |
|
Function |
Wifi: |
Standard Wifi Module+Antenna |
Interface protocol: |
ONVIF |
|
Support protocol: |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional) |
|
Interface |
Communication interface: |
1pc RJ45 10M / 100M Adaptive Ethernet port |
|
Basic Parameter |
Power input: |
DC 12V±10% |
Work environment: |
-35℃ - 60℃ Humidity is less than 95% (no condensation) |
1.OEM&ODM Service:Accepted
2.Warranty time: 2 Years
3.After-sale Service:Most through Internet,On-site service if needed.
1.Are you a factory or trading company?
We are a CCTV Camera factory over 10 years with ISO9001 System audit.
2.Where is your factory ?
Our factory is located in Shenzhen, China, very near to HK.
3.Is the Sample Free?
Sample requirement is accepted,but not free.
4. :How does your factory do on quality control ?
You order will be test 100% before packing and shipping & third party inspetion is welcome
5. What your delivery date?
A:7-20 days usually
6. Can you printing our logo on cable or packing?Do you accept OEM & ODM?
Yes,available.
