Help CenterHydraulic Pile Head Beaker FAPB-450S Crushing Square Concrete
Related Products
-
Concrete Cutting Machine FAPB-500 Hydraulic Concrete Pile Head BreakerUS$ 1 - 30,000MOQ: 1 Unit -
2015 Best Hydraulic Cutter for Sale FAPB-450S Crushing Square ConcreteUS$ 1 - 30,000MOQ: 1 Unit
-
Drilling Machine Pile Head Breaker Concrete PileUS$ 1 - 30,000MOQ: 1 Unit
-
Auxiliary Construction Machinery Part Hydraulic Girder Pile Breaker/cutterNegotiableMOQ: 1
-
Best Construction Machinery Excavator Crane Part Concrete Hydrailic Round Pile BreakerUS$ 1 - 30,000MOQ: 1 Unit
FAE hydraulic pile breaker/cutter
What FAE hydraulic pile breaker could offer?
1~with five patented technologies, is the most efficient equipment to crushing the foundation piles and fills the domestic gap;
2~Using advanced modular design, it can be used for crushing piles of different diameters by changing the modular combination quantity;
3~It can be installed on a large variety of construction machineries, realizing the versatility and economy;
4~Simply operated with less staff, reducing the construction cost;
5~Curshing the piles wholly, reducing the consumption of energy;
6~Using adjustable chain, the pile breaker/cutter can be applied to constructions in different terrains;
7~Full hydraulic drive, low noise operation;
8~Quick assembled, more convenient to transport and more efficiently;
9~Applying new material and new technology makes it much more reliableand reduces maintenance cost;
10~The design of simple changing modular and general technology can realize quick maintenance and extend the service life;
What requirements FAE hydraulic pile breaker
should meet?
1~To prevent unable to transport spoil caused by insufficient lifting force of excavator, it is necessary to determine the broken pile length each time according to the power of the selected excavator;
2~To prevent unable to remove spoil of pile cutting after pouring concrete and steel solidification, it is unsuitable to use prespringing on the top of pouring concrete reinforcing cage after completion of pile, and meanwhile it should install PVC pipes on the rebar of pile top;
3~After mechanical amputation of pile head, the section needs for simply processing, a air compressor is needed for auxiliary process.
4~Combination of pile cutting machine and other construction machinery When the selection of excavator, we should remove the excavator bucket, and hang the lifting chain of the pile breaker machine in the connecting shaft between the bucket and the arm to combine the two machines. And then connect the hydraulic circuit of one excavator hydraulic cylinder with hydraulic circuit of the pile machine hydraulic cylinder through balanced valve, which is used for driving the hydraulic cylinder group work of the pile breaker machine.

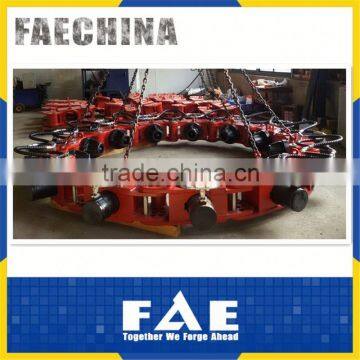

5~Modular combination
High modular design, which is easy to adjust each field pile diameter. Connection between the module and module through pin shaft, when addition and subtraction module number in accordance with the change of pile diameter, it is just need to load and unload the pin shaft-easy operation without professional skills.

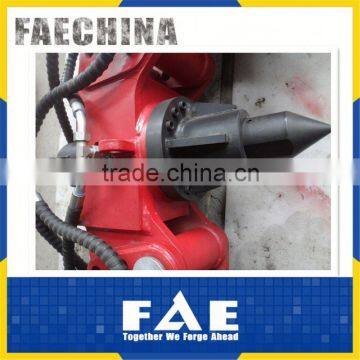

6~With custom design hydraulic cylinder in the module, reliable pressure; with precision casting cylinder block, reliable strength; drill rod adopting alloy materials and special heat treatment production, reliable operation.
7~Hydraulic components adopting well~known Chinese manufacturer accessories, to ensure drive pressure during operation; standard component adopting high~performance accessories, to ensure joint strength during operation.
What are FAE hydraulic pile breaker specification?
| FAPB-315A construction's parameters | ||||
| Module numbers | The diameter range | Platform Weight | Weight | Height of single crush pile |
| 6 | Φ300~Φ350 mm | ≥12 t | 1000 kg | ≤450 mm |
| 7 | Φ350~Φ450 mm | ≥12 t | 1100 kg | ≤450 mm |
| 8 | Φ450~Φ550 mm | ≥16 t | 1200 kg | ≤450 mm |
| 9 | Φ550~Φ650 mm | ≥16 t | 1300 kg | ≤400 mm |
| 10 | Φ650~Φ760 mm | ≥20 t | 1400 kg | ≤400 mm |
| 11 | Φ760~Φ860 mm | ≥20 t | 1500 kg | ≤400 mm |
| 12 | Φ860~Φ960 mm | ≥20 t | 1600 kg | ≤400 mm |
| 13 | Φ960~Φ1050 mm | ≥20 t | 1700 kg | ≤400 mm |
| FAPB-380A construction's parameters | ||||
| Module numbers | The diameter range | Platform Weight | Weight | Height of single crush pile |
| 8 | Φ600 mm | ≥20 t | 2200 kg | ≤400 mm |
| 9 | Φ700 mm | ≥20 t | 2430 kg | ≤400 mm |
| 10 | Φ800~Φ900 mm | ≥25 t | 2660 kg | ≤400 mm |
| 11 | Φ1000 mm | ≥25 t | 2890 kg | ≤350 mm |
| 12 | Φ1100 mm | ≥25 t | 3120 kg | ≤350 mm |
| 13 | Φ1200 mm | ≥28 t | 3350 kg | ≤350 mm |
| 14 | Φ1300~Φ1400 mm | ≥28 t | 3580 kg | ≤350 mm |
| 15 | Φ1500 mm | ≥30 t | 3810 kg | ≤350 mm |
| 16 | Φ1600 mm | ≥30 t | 4040 kg | ≤300 mm |
| 17 | Φ1700 mm | ≥35 t | 4270 kg | ≤300 mm |
| 18 | Φ1800 mm | ≥35 t | 4500 kg | ≤300 mm |
| Performance Parameter | |||
| Type | FAPB-400S | FAPB-450S | FAPB-500S |
| Pile length | 250~400mm | 350~450mm | 350~500mm |
| Max. rod pressure | 280kN | 280kN | 280kN |
| Crowd stroke | 135mm | 135mm | 135mm |
| Max. crowd pressure | 30MPa | 30MPa | 30MPa |
| Max. cylinder required | 20L/min | 20L/min | 20L/min |
| Quantity/8h | 160/8h | 180/8h | 200/8h |
| Max. single cutting height | ≤300mm | ≤300mm | ≤400mm |
| Matched machinery tonnage | ≥7t | ≥8t | ≥16t |
| Operating size | 1440×1440× 1500mm |
1490×1490×1500mm | 1588×1588×1500mm |
| Overall weight | 0.6t | 0.65t | 0.92t |
What are FAE hydraulic pile breaker?

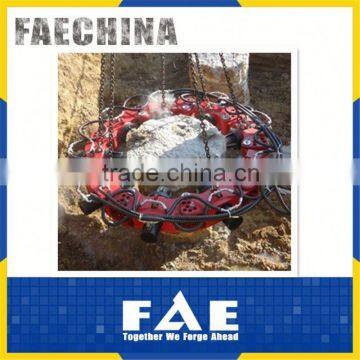

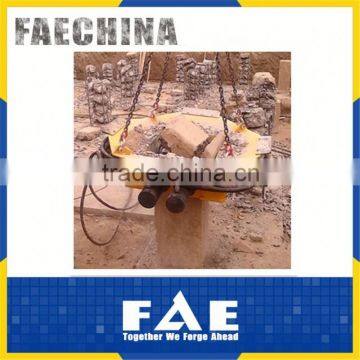

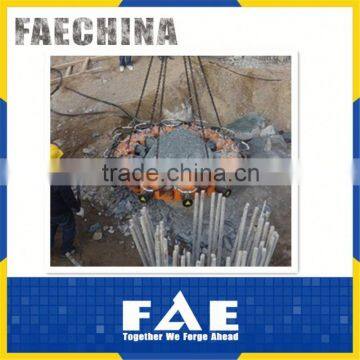

What are job sites of FAE hydraulic pile breaker?
What are FAE hydraulic pile breaker packing details?
What are FAE hydraulic pile breaker delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
