Product Details
| Place of Origin | Guangdong, China | Brand Name | Ratingsecu | |
| Model Number | R-YZ100 | Type | Other, bracket | |
| Style | Other, hot products 2016 | Sensor | Other, camera bracket | |
| Technology | Other, intelligent rotating bracket | Special Features | Waterproof / Weatherproof |
Product Description
Hot products 2016 camera bracket for cctv cameras (R-YZ100)

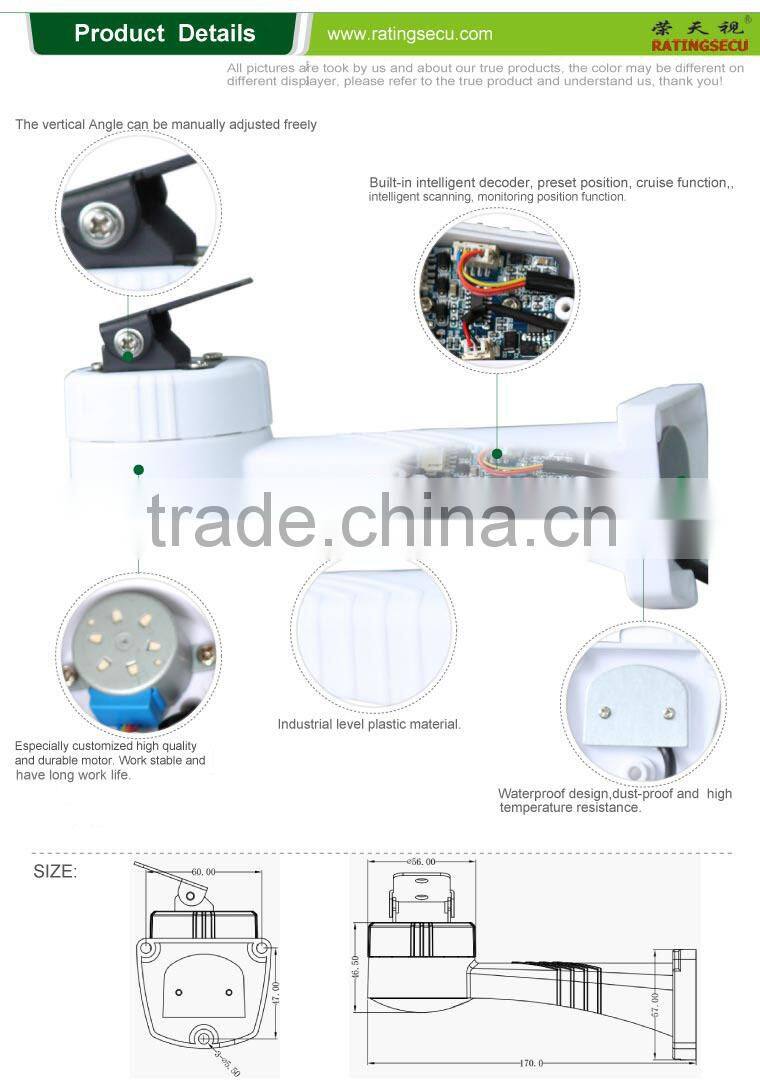

Main features of hot products 2016 camera bracket for cctv cameras :
- Completely independent intellectual property.

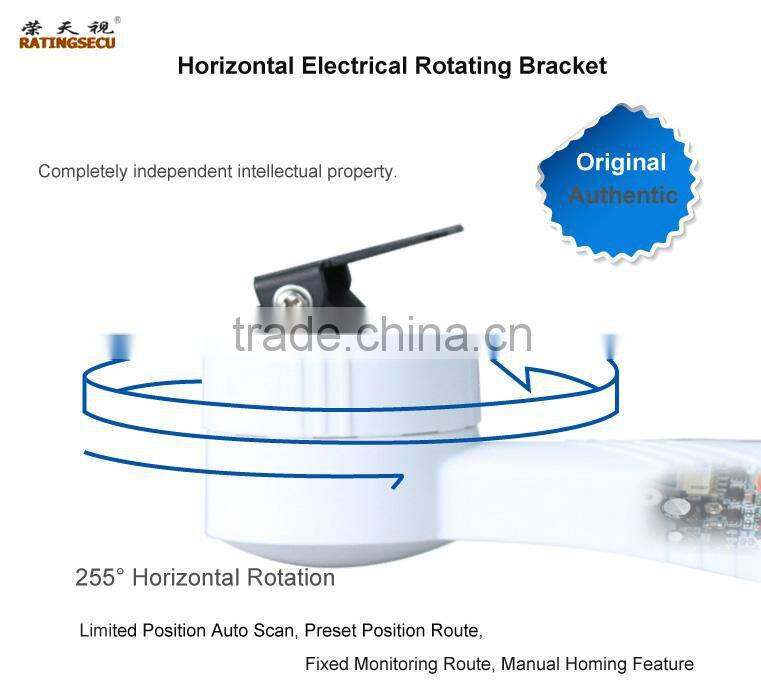

- 255° Horizontal rotate. Left and Right stop positions can be freely adjustable.
- Built-in Intelligent decoder, intelligent preset position, intelligent scan function.
- Can set 1 home position.
- Rotating speed is adjustable, 6°/ 12°/ 20° per second.
- DC 12V Input power, R-S485 control cable.
- Can be easily connected to HD camera’s R-S485 and DC 12V output.
- Easy to make fixed HD camera to be with rotate function, but no need extra wiring.
- Especially customized high quality and durable motor. Work stable and have long work life.
- Only 170mm length, easy to install, compatible with all kind HD camera and analog camera.
- Waterproof design, dust-proof and high temperature resistance, industrial level plastic material.
Applicative advantage of electronic rotating bracket :
- Can match with HD camera perfectly.
- Can connect to IP module R-S485 directly.
- Can be remotely controlled by NVR, platform software and smart phone, but no need extra wiring.
- Competitive price. You can make the fixed lens camera rotate with lower cost.
- Can reduce the quantity of fixed lens camera with this rotating bracket, then you can save much cost of the project. Let you have more competitive than other seller.
- Especially suitable for indoor fixed camera to view wider angle
Example:
When we installing a camera in the room, and want to view wider range, we usually use 3.6mm lens which with big visible angle but short visible distance, this make he camera's resolution can not be perfect But if this camera is equipped with our rotating bracket, 6mm lens can improve the resolution, at the meanwhile, you can view wider angle and longer distance, although 6mm lens can not reach 90 degrees like 3.6mm lens, but the rotating bracket allows the fixed lens camera to achieve the maximum monitoring range to 255 degrees. As a result, monitoring range and resolution have been improved, customer evaluations will be better.
Bracket data sheet
Item | Data |
Horizontal rotate angle | 255° |
Rotate speed | 6°/ 12°/ 20° optional |
Limited position | Left & right limited position, Free adjustable |
Limited position auto scan | 3 level adjustable |
Preset position | 8 preset position |
Preset position route | 1 tour route, 3 level of rotate speed |
fixed monitoring position | Yes |
Manual homing feature | yes |
Control wire | RS485 |
Interface | Power interface + RS485 |
Power input | DC 12V±5% / 100mA |
Power consumption | 0.9W |
Work environment | -25°C-55°C,Humidityless than95% (no condensation) |
