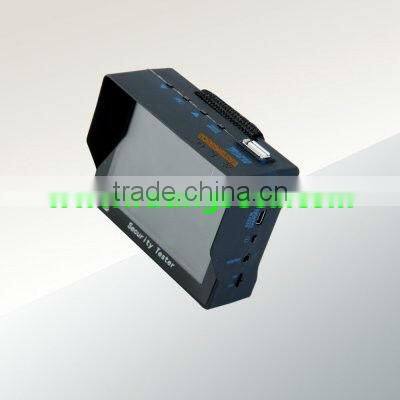

Portable Cctv Lcd Monitor Tester
3.5" portable cctv lcd monitor tester
Features of portable cctv lcd monitor tester
1.3.5" TFT display screen, resolution: 320 x 240
2.low power consumption, working time up to 8 hours
3.NTSC / PAL auto identify and auto adapt itself
4.1 channel of video input
5.1 channel of audio input
6.have speaker, can play the audio input
7.12V / 0.5A emergency power output, can test the camera if is powered
8 minutes without video signal, it will automatically sleep for saving power
9.built-in 2200mA lithium battery, support to use USB socket for recharging the tester
10.have sun shade cover, it can be used outdoor
11.have wristband, you can wear it like a watch on hand
12.small and simple, easy for carry and use, operator need not to get training
Specifications of portable cctv lcd monitor tester
1,Size: 92mm x 73mm x 27mm (shade cover part is 40mm)
2,Weight of main tester: 120g
3,Weight of the whole tester: 500g
Item |
Info |
screen |
TFT 3.5"; resolution: 320 x 240 |
Shell materials |
Engineering ABS plastic |
Surface treatment |
Polyester wadding (elastic paint) |
Battery |
18650 Lithium battery; DC3.7V (2200mA is set into the machine) |
Power consumption |
≤0.8w (12V emergency power is off) |
Charger |
5V / 1A |
Video input standard |
PAL / NTSC |
Video input |
1.0Vp - p |
Emergency power output |
12V / 0.5A |
Audio input |
0.7Vp - p |
Auto sleep |
After 3 minutes without video signal |
Working temperature |
5°C~+50°C |
Size |
92mm X 73mm X 27mm (shade cover part is 40mm) |
Weight of the main tester |
120g |
Gross weight of the whole machine |
500g |
Detailed Photos of portable cctv lcd monitor tester
1. Wristband 7. USB charging socket
2. Screen protection plate 8. 12V emergency power output socket
3. 3.5"TFT screen 9. Video and audio input socket
4. Power light 10. Power switcher
5. Charging light 11. Speaker
6. 12V emergency power output light

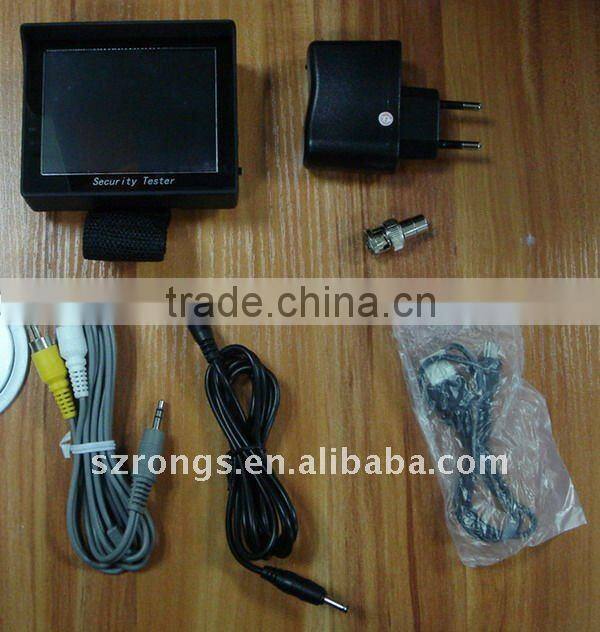

cctv tester parts
Main machine |
1 pc |
Charger |
1 pc |
Charging cable |
1 pc |
Wristband |
1 pc |
12V switch wiring |
1 pc |
A / V transfer cable |
1 pc |
BNC adaptor |
1 pc |
Manual |
1 pc |
