Specifications
wifi home security ip megapixel camera1.Night Vision:25m
2.P2P(Plug&Play)
3. POE,wifi,audio,TF
4,Very Easy Installation
2013 wholesale high quality wireless wifi home security ip megapixel camera companies looking for distributors
Features of ip megapixel camera
1) Professional design for home security megapixel ir dome camera, small, beautiful, easy use.
2) Private mold, national patent, excellent heat dissipation, plastic + aluminum alloy structure.
3) 2pcs imported SMD array IR LED (Finland LEDIL light lens), effective night vision distance 40-50m, excellent performance in dark environment.
4) 3.0 Megapixel HD lens, 3.6mm / 6mm / 8mm / 12mm optional.
5) Wireless design, DC power interface + RJ45 network interface, easy for installation & use.
6) Can add internal audio pickup , add POE module & WIFI module .
7) Optional function module: audio input & output + TF storage card + Alarm input & output.
8) 1/2.8" SONY 2.4 megapixel HD CMOS, resolution: 1920x1080, 0.02LUX low illumination. IR_CUT dual optical filters auto switch. Hi3516C coding & ISP, H.264 compression. 25 frames, real time 1080P, dual streams, built-in WEB, support ONVIF.
Specifications of ip megapixel camera
Model: |
R-H232N |
R-H332N |
R-H532N |
||
|
Camera |
Imaging sensor: |
1/4" CMOS progressive scan |
1/3" CMOS progressive scan |
1/2.8" SONY progressive |
|
Signal system: |
PAL / NTSC adjustable |
||||
Scanning mode: |
Progressive scanning |
||||
Illumination: |
Color 0.2 lux, black & white 0.05 lux, IR on 0 lux |
Color 0.2 lux, black & white 0.02 lux, IR on 0 lux |
Color 0.2 lux, black & white 0.02 lux, IR on 0 lux |
||
Lens: |
Standard with 3 million pixel 3.6-8mm fixed focus lens |
||||
Day and night switch: |
IR-CUT dual optical filters auto switch in day and night |
||||
Electronic shutter: |
Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds) |
||||
white balance: |
Auto / manual |
||||
DNR: |
3D-DNR |
||||
Infrared source: |
1pcs SMD array light source+ Finland LEDIL light lens |
||||
Effective night vision distance: |
25 meters (measured value without light condition) |
||||
Compression standard |
Image compression: |
H.264 |
|||
Video bit rate: |
128 Kbps -- 8 Mbps; CBR / VBR adjustable |
||||
Audio compression: |
G.711 / G.726 |
||||
Audio bit rate: |
64 Kbps (G.711) / 16 Kbps (G.726) |
||||
Image |
Max image size: |
1280 x 800 |
1296 x 976 |
1984 x 1225 |
|
Frame rate: |
1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps |
||||
Image adjustment: |
Through IE can adjust Saturation, brightness, contrast, sharpness |
||||
Image mirroring: |
Horizontal mirroring, vertical mirroring |
||||
Scene: |
Auto, indoor, outdoor |
||||
Digital enlarge: |
Can achieve through NVR, P2P hd monitoring management software |
||||
Function |
Storage: |
Support TF card storage |
|||
Interface protocol: |
ONVIF |
||||
Support protocol: |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional) |
||||
|
Intelligent alarm:
|
Motion detection, mask alarm, network cable break , IP address conflict, storage card is full, storage device is wrong |
||||
Audio pickup: |
Can add internal audio pickup, also support external audio pickup |
||||
POE power supply |
Support POE power supply (optional), internal and external type |
||||
WIFI |
Support WIFI function (optional) |
||||
Interface |
Communication interface: |
1pc RJ45 10M / 100M Adaptive Ethernet port |
|||
Basic parameter |
Power input : |
DC 12V±10% / POE |
|||
Power consumption: |
1W (IR off) / 3.4W (IR on ) |
1.1W / 3.5W (IR on ) |
|||
Working environment: |
-35°C ~ 60°C, humidity is less than 95% (no condensation) |
||||
Size: |
125 mm x 55 mm x 50 mm |
||||

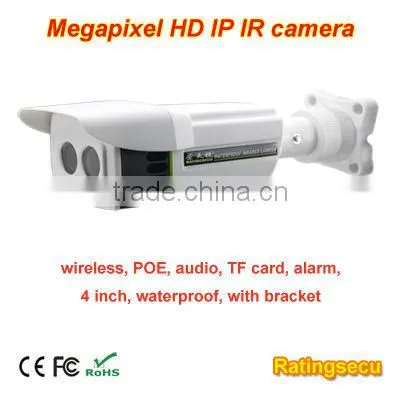

Photos of ip megapixel camera
