Home > Tools & Hardware > Drilling Tools > Drill Bit > SDS Plus Double Flute Hammer Drill Bits

SDS Plus Double Flute Hammer Drill Bits

SDS Plus Double Flute Hammer Drill Bits thumbnail-1
SDS Plus Double Flute Hammer Drill Bits photo-1
US$ 0.15 - 0.23 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Richoice
Model Number:
RQH025
Contact Supplier Request Quote Chat Now
Zhenjiang Richoice Machinery Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Richoice
Model Number RQH025
Type Center Drill Bit
Material Tungsten Carbide

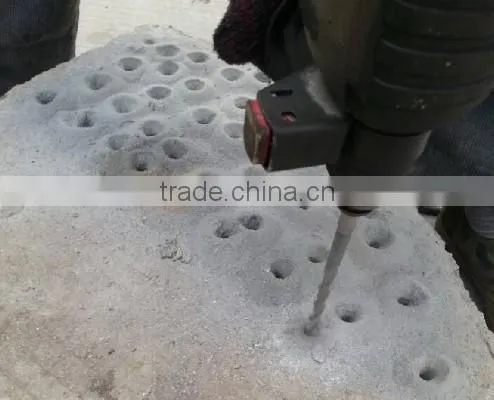

Use Masonry Drilling

Specifications

Manufacturing process: Milled
Copper coated tip
Point angle: 130
Double flute
Material: 40Cr, tungsten carbide

Good quality SDS Plus Hammer Drill Bit

Manufacturing process: Milled
Point angle: 130
Flute: Single
Material: 40Cr, tungsten carbide
Finish: Sandblasted, Zine-coated, Ni-coated
Diameter: 4-30mm

Diameter   Overall Length Flute Length   Diameter  Overall Length Flute Length
mm mm mm   mm mm mm
4  110mm 45mm   13  160mm 80mm
4 160mm 95mm   13  210mm 130mm
5  110mm 45mm   13  260mm 180mm
5 160mm 95mm   13 300mm 220mm
5 210mm 147mm   13  460mm 380mm
5 310mm 247mm   14  160mm 80mm
5.5 110mm 45mm   14  200mm 120mm
5.5 160mm 95mm   14  260mm 180mm
5.5 210mm 147mm   14  300mm 220mm
5.5 260mm 197mm   14  460mm 380mm
5.5  310mm 247mm   14  600mm 520mm
6 110mm 45mm   14 1000mm 920mm
6 160mm 97mm   15  160mm 80mm
6  210mm 147mm   15  200mm 120mm
6  260mm 197mm   15 260mm 180mm
6  460mm 397mm   15 460mm 380mm
6.5  110mm 45mm   16  160mm 80mm
6.5  160mm 97mm   16 200mm 120mm
6.5  210mm 147mm   16 250mm 180mm
6.5  260mm 197mm   16  300mm 230mm
7 110mm 45mm   16  460mm 380mm
7  160mm 97mm   16  600mm 520mm
7  210mm 147mm   16  800mm 720mm
8  110mm 45mm   16  1000mm 920mm
8  160mm 97mm   17  200mm 120mm
8  210mm 147mm   18 200mm 120mm
8  260mm 197mm   18  250mm 175mm
8  310mm 247mm   18  300mm 220mm
8  460mm 397mm   18  460mm 380mm
8  610mm 545mm   18  600mm 520mm
9 160mm 97mm   18 1000mm 920mm
9  210mm 147mm   19  200mm 120mm
10  110mm 45mm   19  460mm 380mm
10 160mm 97mm   20  200mm 120mm
10  210mm 147mm   20  300mm 220mm
10  260mm 197mm   20 460mm 380mm
10 310mm 247mm   20  600mm 520mm
10 360mm 297mm   20 1000mm 920mm
10  460mm 397mm   22  250mm 175mm
10 600mm 537mm   22  450mm 370mm
10  1000mm 937mm   22  600mm 520mm
11  160mm 95mm   22  1000mm 920mm
11  210mm 145mm   24  250mm 175mm
11 260mm 195mm   24  450mm 370mm
11  300mm 235mm   25  250mm 175mm
12 160mm 85mm   25  450mm 370mm
12  210mm 135mm   25  600mm 520mm
12  260mm 185mm   25 1000mm 920mm
12 310mm 235mm   26  250mm 175mm
12 460mm 385mm   26 450mm 370mm
12  600mm 525mm   28  450mm 370mm
12 1000mm 920mm   28 460mm 380mm



SDS Plus Double Flute Hammer Drill BitsSDS Plus Double Flute Hammer Drill BitsSDS Plus Double Flute Hammer Drill BitsSDS Plus Double Flute Hammer Drill Bits

Please inquiry us for more information
