FAECHINA Bullet Teeth Spiral Auger, Rock Bits Conical Auger, Double Cutting Double Flight Conical Piling Auger
What FAE could offer?
We can produce the variety of drill tools,
- Conical Rock Auger ;
- Flat or Butterfly Rock Auger ;
- Flat or Butterfly Clay Auger ;
- soil and rock drilling bucket;

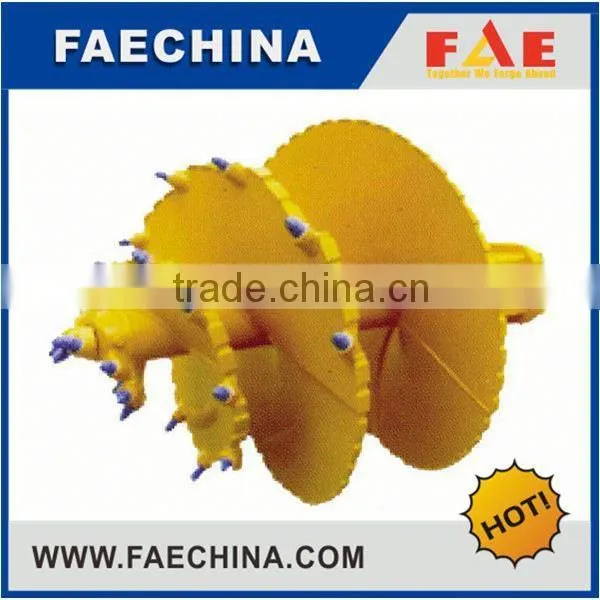

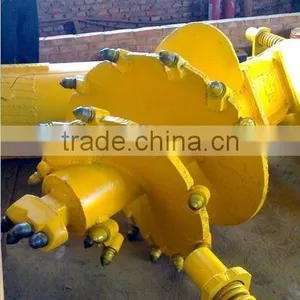

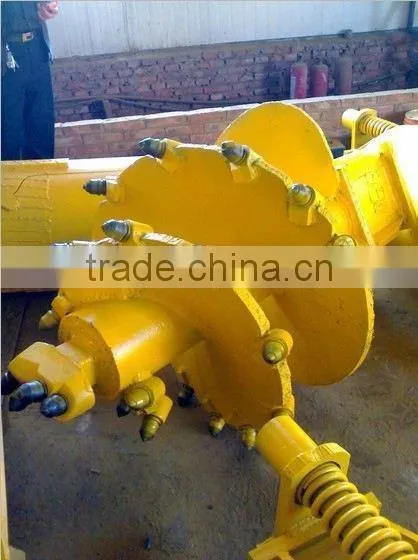

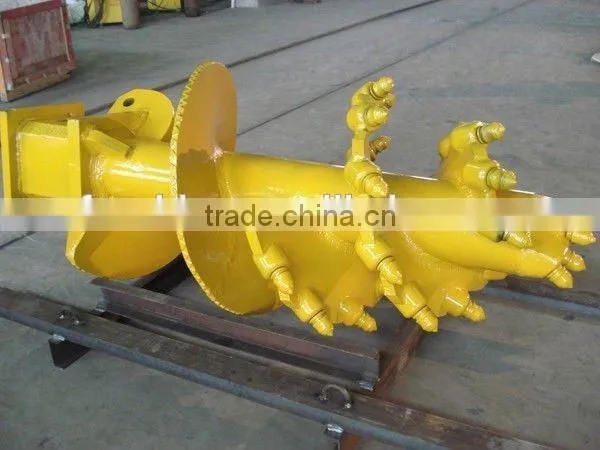

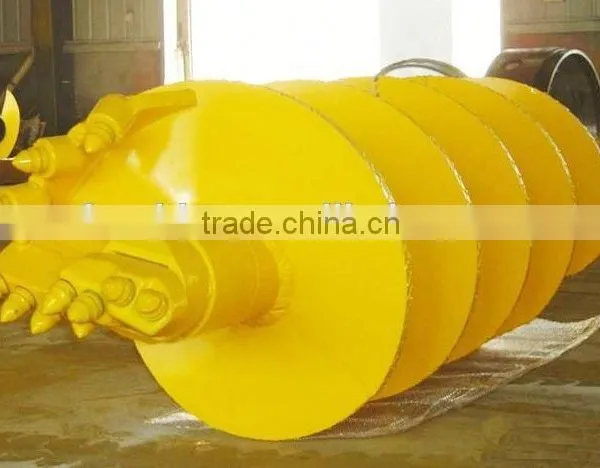

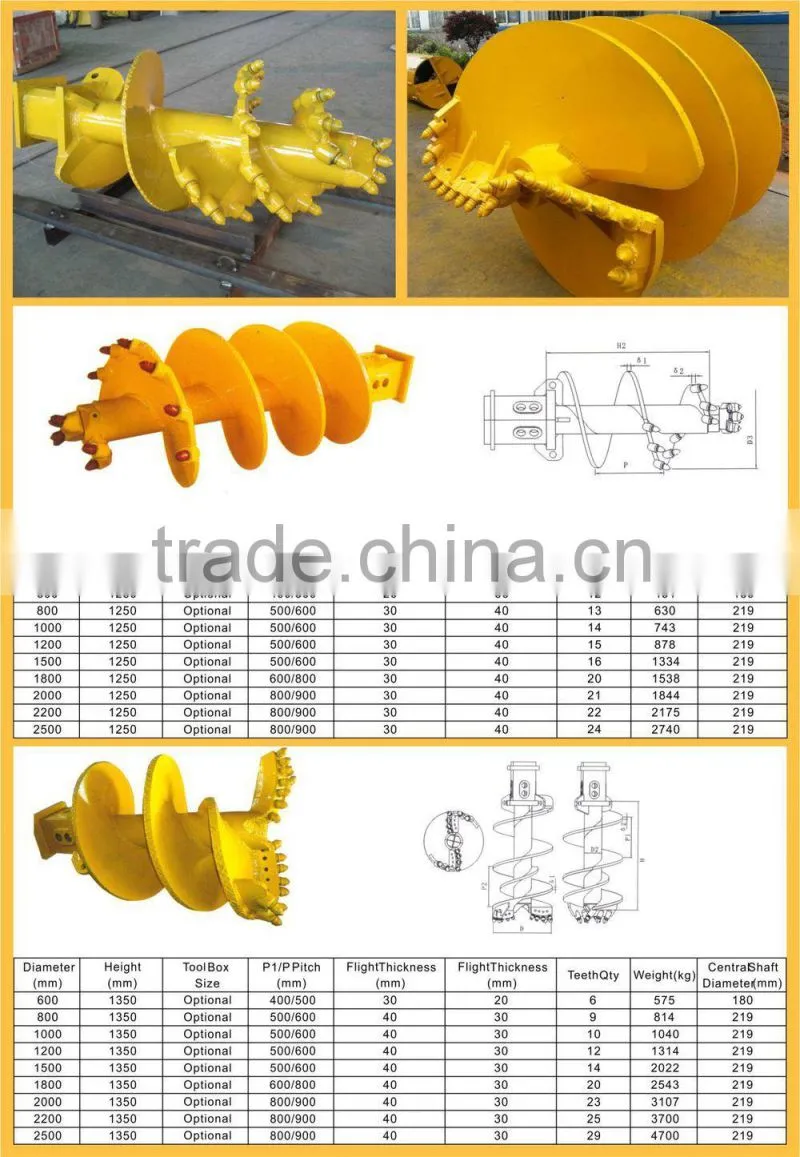

1) Conical Rock Auger( Single cut auger and Double cut auger )
Drilling Diameter Range: 600~1800mm
Main Applications:
1- Single Cut Augers and Double Cut Augers are suitable for drilling in medium to strong rock (15~60MPa)
2- Double Cut Augers are recommended for bigger diameters uncased boreholes.

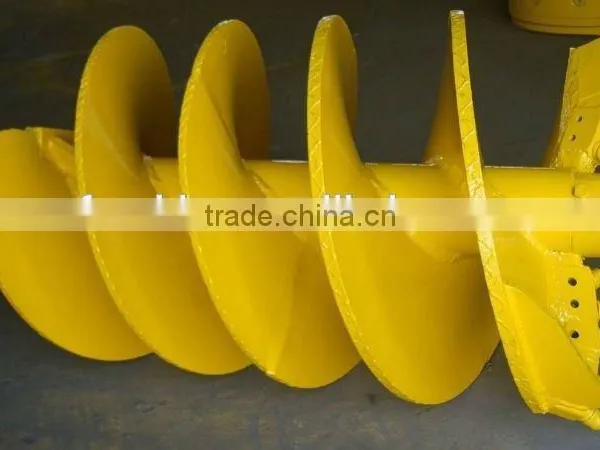

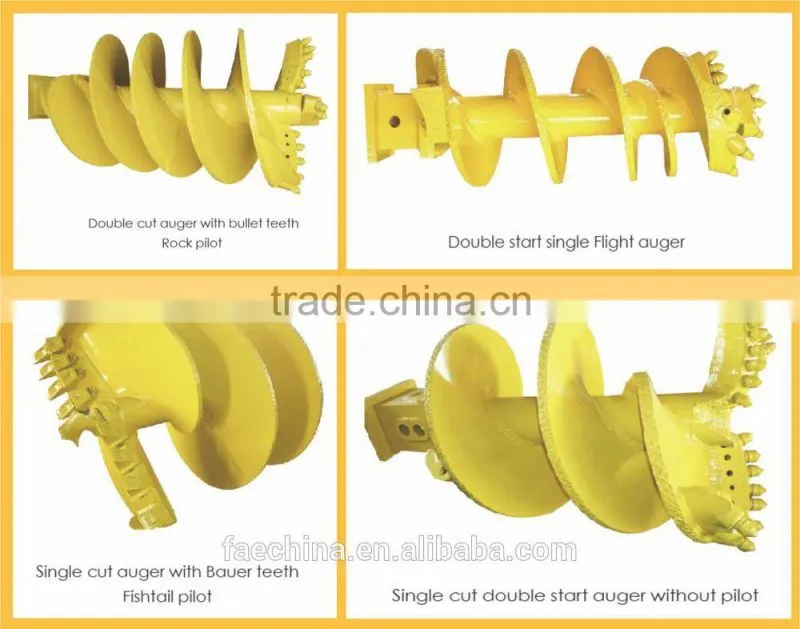

2) Flat or Butterfly Spiral Auger: (Single-Cut Auger, Double Cut Auger, Double Cut Auger without Rock Pilot)
Main Applications:
1- Flat or Butterfly Rock Augers are suitable for drilling in weak fractured rock and very dense sand and gravel (Less than 5 MPa)
2- Double Cut Augers are mainly used for bigger diameter uncased boreholes and secant piles.
3- Double Cut Auger without rock pilot are recommended for fractured rock or moderately weak to moderately strong rock (5~50 MPa)

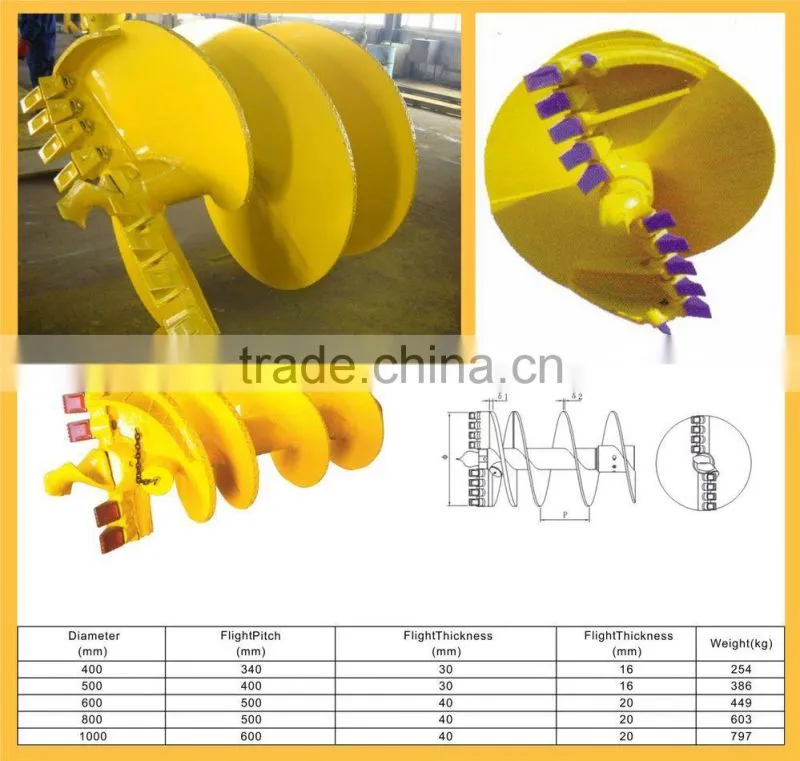

3) Flat or Butterfly Clay Auger (Single Cut Auger and Double Cut Auger)
Main Applications:
1- The Single Cut and Double Cut Augers are suitable for drilling in clay, silt and loose to medium dense sand and gravel.
2- The Single Cut and Double Cut Augers with side cutters are suitable for drillin in hard clay, silt and medium to high dense sand and gravel.
4) Soil drilling bucket
Drilling diamter:520mm-2500mm
Shell length:800mm-1500mm
Material:Q345C
Main applications:
-Suitable for drillng in clay,soil and loose to medium dense sand and gravel
-Single bottom drilling bucket are used for clay layer
-Double bottom drilling bucket are mainly used for bigger diameter uncased boreholes
|
Drilling Dia mm |
Shell Dia mm |
Shell length mm |
Bucket thickness mm |
Teeth No pcs |
Material |
| 600 | 570 | 1200 | 16 | 4 | 16Mn |
| 700 | 670 | 1200 | 16 | 4 | 16Mn |
| 800 | 770 | 1200 | 16 | 4 | 16Mn |
| 900 | 870 | 1200 | 16 | 5 | 16Mn |
| 1000 | 970 | 1200 | 16 | 5 | 16Mn |
| 1200 | 1170 | 1200 | 16 | 7 | 16Mn |
| 1250 | 1220 | 1200 | 16 | 7 | 16Mn |
| 1400 | 1370 | 1200 | 16 | 8 | 16Mn |
| 1500 | 1470 | 1200 | 20 | 9 | 16Mn |
| 1600 | 1570 | 1200 | 20 | 9 | 16Mn |
| 1800 | 1770 | 1000 | 20 | 12 | 16Mn |
| 2000 | 1970 | 1000 | 20 | 15 | 16Mn |
Features:
-Kelly box size as per customer's demand
-Bucket thickness can be made 16mm or 20mm as customer's demand
-The single bottom plate thickness:50mm
-The double bottom plate thickness:40/50mm
-Teeth type:V19 or V20

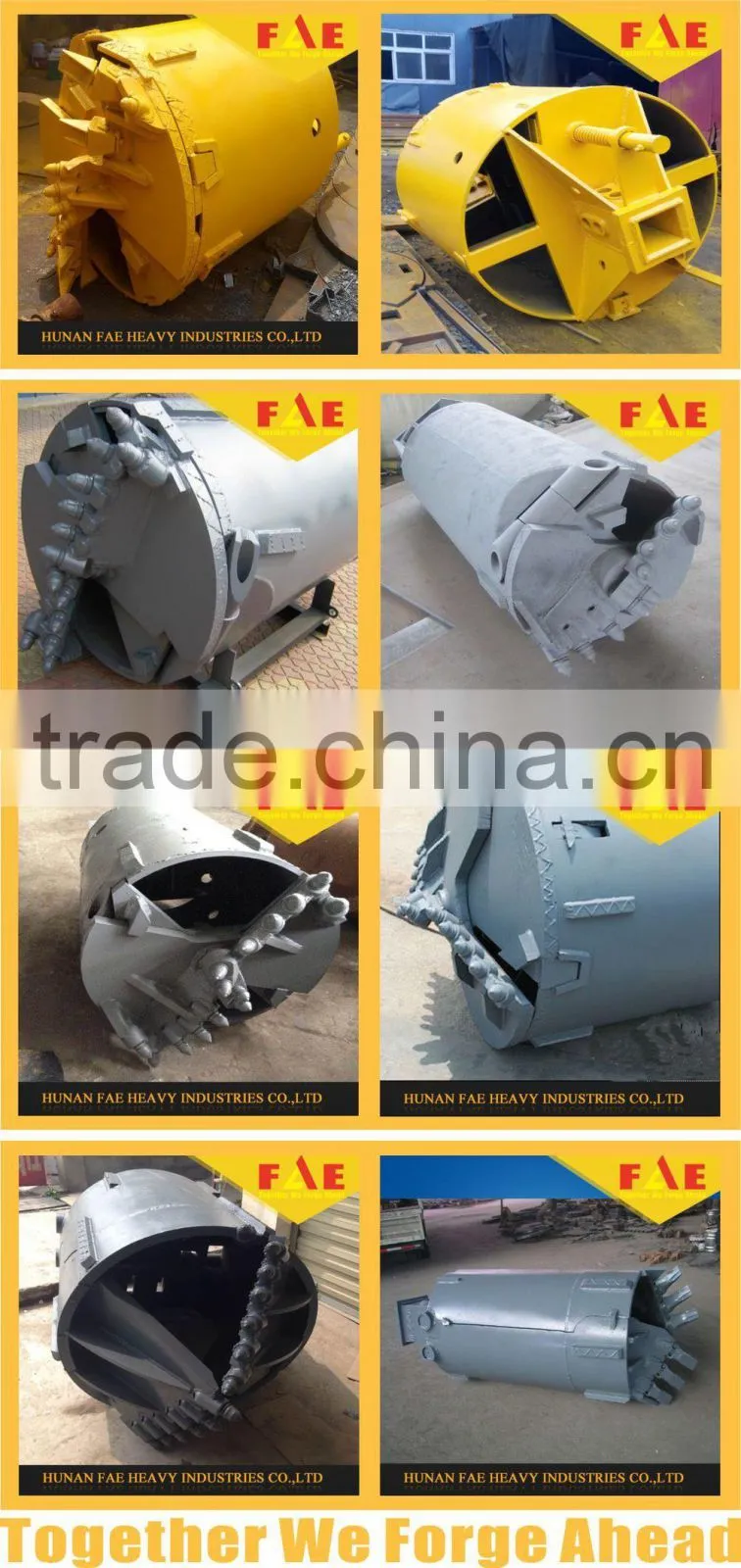

5) Rock drilling bucket
Drilling diamter range:520mm-2500mm
Shell length:800mm-150mm
Material:Q345C
Main Applications:
|
Drilling Dia mm |
Shell Dia mm |
Shell length mm |
Bucket thickness mm |
Teeth No pcs |
Material |
| 600 | 570 | 1200 | 16 | 8 | 16Mn |
| 700 | 670 | 1200 | 16 | 9 | 16Mn |
| 800 | 770 | 1200 | 16 | 11 | 16Mn |
| 900 | 870 | 1200 | 16 | 11 | 16Mn |
| 1000 | 970 | 1200 | 16 | 13 | 16Mn |
| 1200 | 1170 | 1200 | 16 | 15 | 16Mn |
| 1250 | 1220 | 1200 | 16 | 15 | 16Mn |
| 1400 | 1370 | 1200 | 16 | 17 | 16Mn |
| 1500 | 1470 | 1200 | 20 | 19 | 16Mn |
| 1600 | 1570 | 1200 | 20 | 19 | 16Mn |
| 1800 | 1770 | 1000 | 20 | 21 | 16Mn |
| 2000 | 1970 | 1000 | 20 | 23 | 16Mn |
Features:
-Kelly box size as per customer's demand
-Bucket thickness can be made 16mm or 20mm as customer's demand
-The single bottom plate thickness:50mm
-The double bottom plate thickness:40/50mm
-Teeth typeB47K-22H/3050

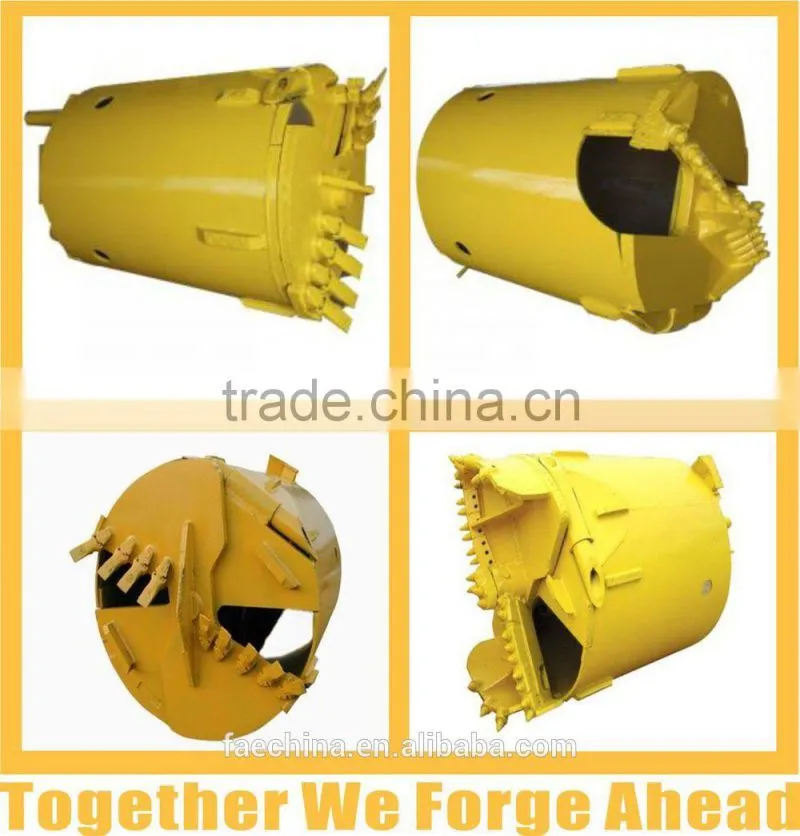

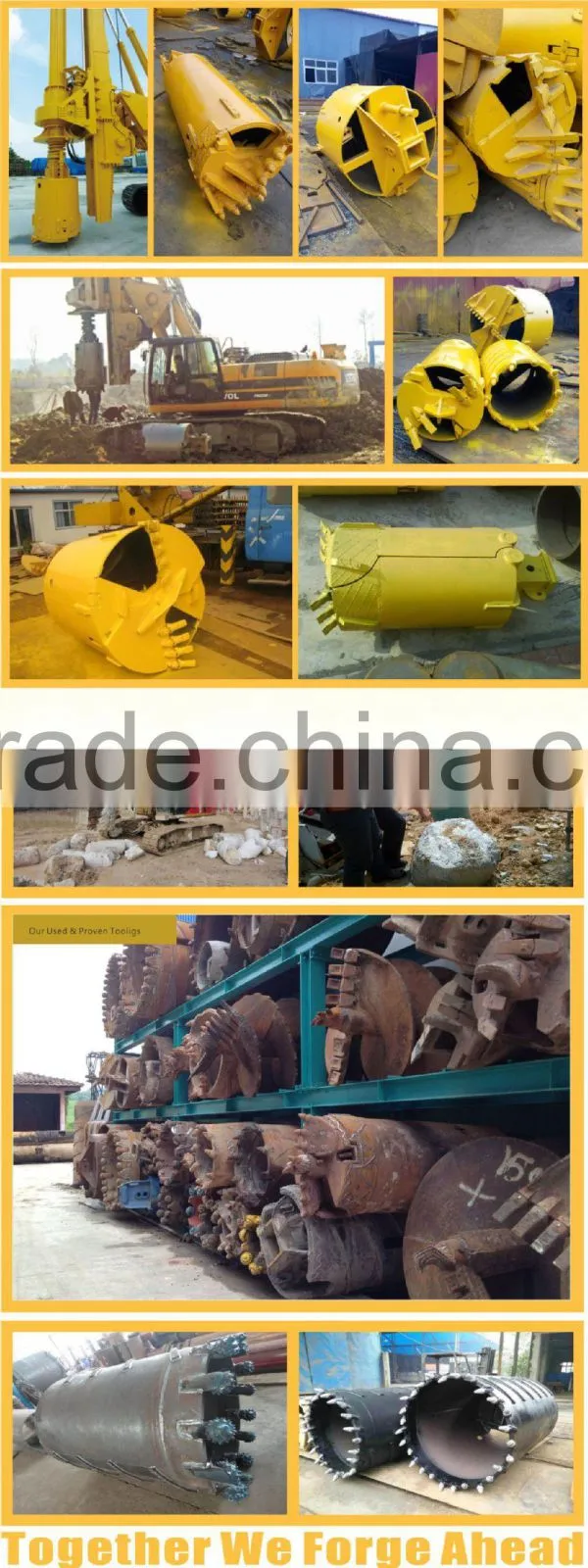

What are FAE drill bucket?

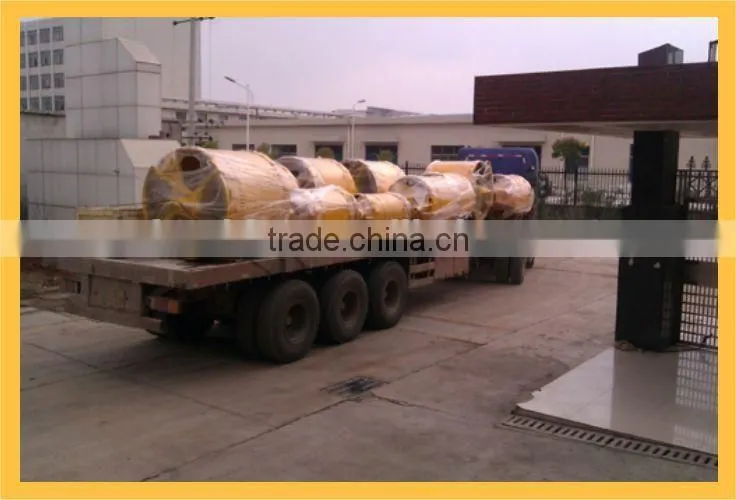

What is packing and delivering of FAE spiral auger?
Why Choose us?
Company View
Our Certifications
What are FAE business cooperation?
FAQ
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send" Now!!
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
