High Speed Mini Speed Dome Camera

High Speed Mini Speed Dome Camera thumbnail-1
High Speed Mini Speed Dome Camera thumbnail-2
High Speed Mini Speed Dome Camera thumbnail-3
High Speed Mini Speed Dome Camera thumbnail-4
High Speed Mini Speed Dome Camera photo-1
High Speed Mini Speed Dome Camera photo-2
High Speed Mini Speed Dome Camera photo-3
High Speed Mini Speed Dome Camera photo-4
US$ 161.97 - 289.15 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Robust
Model Number:
R-500B9
Type:
Analog Camera
Contact Supplier Request Quote Chat Now
Shenzhen Rong Tian Shi Tech Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Robust
Model Number R-500B9
Type Analog Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

1,mini speed doom camera;
2,4.5"metal housing waterproof;
3,360 degrees rotation;
4,IR 60m mini ptz
5,CE,FCC,RHOS IP66

                                                                     mini speed dome camera



Features

1,4.5" whole aluminum alloy housing, the whole structure is made by aluminum alloy. Waterproof level IP66    for daily use outdoor. Housing rotate follow the zoom camera lens. External dial code for set baud rate an d address code.



2,Unique waterproof design for inlet wire, effectively avoid the water run into the housing, prevent the wate-r run to machine if user use wrong install methods.



3,Auto identify PELCO D / PELCO P protocol. OSD menu, 360° continuously rotation.



4,3 pcs imported SEL powerful SDM array IR source+ Finland LEDIL lens, effective night vision distance is 60  meters in dark environment, IR LED with different illuminate angle, LED auto switch separately depend on the lens zoom.

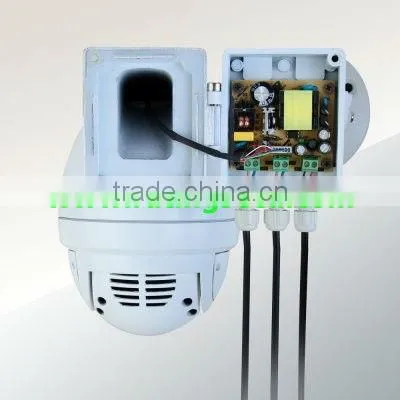

5, wall mount / pendent mount bracket is optional, with power supply inside of the bracket





Zoom Module information



Model:

R-500B9

Module

Samsung  SCM-2121P

 Input Voltage

DC 8V ∼ 15V (Advice: 9V or 12V )

 Power Consumption

Normal: 3.3W       Operating: 4.8W

  CCD

 Size

1/4 inch, Interline Transfer CCD

 Total Pixels

795(H) x 596(V)

 Effective Pixels

752(H) x 582(V)

  OPTICS

 Optics

12X, f=3.94 to 46.05mm(F 1.6 to 3.2)

 Min. Focus Distance

1500mm

 D.Zoom

2x-16x

 Angle Field of view

H:  55.5°(Wide) to 2.55°(Tele)      V:  42.5°(Wide) to 1.99°(Tele)

  SYNC

 Scanning System

2:1 Interlace

 Synchronization

Internal / Line-Lock

 Frequency

H: 15.625 KHz

  FUNCTION

 ID

255

 Resolution

Color: 560 TVLine (Min.)      B/W: 680 TVLine (Min.)

 Video Output

CVBS : 1.0Vp-p/75

 S/N (Y signal)

50 dB (AGC Off, Weight ON)

 Min. Illumination

Color: 0.2 Lux / F1.6 (50 IRE)        B/W: 0.02 Lux / F1.6 (50 IRE)

 Back light

 compensation

LOW/MIDDLE/HIGH/OFF Selectable

 Day & Night

Auto, Color, B/W  (ICR)

 Gain Control

Normal, High, OFF Selectable

 White Balance

ATW (Indoor (3,000K~6,500K), Outdoor(1,800K~10,500K)) / Auto / Manual

 Electronic shutter

 speed

Auto/Manual (X128 ~1/50sec ~ 1/120,000sec)

 Sens

x128

 O.S.D

Built-in

 Motion Detection

ON/OFF(4 Programmable Zone per Screen)

 Communication

RS-485 or RS-232C CMOS Level
(2400, 4800, 9600, 19200, 38400, and 57600bps Selectable)

 SSNR

Low/Middle/High/OFF Selectable

 Focus

Auto/Manual/One Push

 Zoom Speed

 1.6 sec: Wild to Tele

 Lens Initialize

Build-in

 DIS

yes

 Preset

8 Positions

 Privacy Function

ON/OFF(32Zones, It consists of 8Group 4Programmable Zone per Screen)

 FLIP

Vertical, Horizontal, Vertical-Horizontal, OFF Selectable

 Freeze

ON/OFF

 IRIS Control

Manual/Auto

 Size

48.6(W)×53.8(H)×87(D)mm

 Operating
 Temperature/Humidity

-10°C to +50°C / 20% to 80% RH

 Storage

 Temperature/Humidity

-20°C to +60°C / 20% to 95% RH

 Weight

210 g

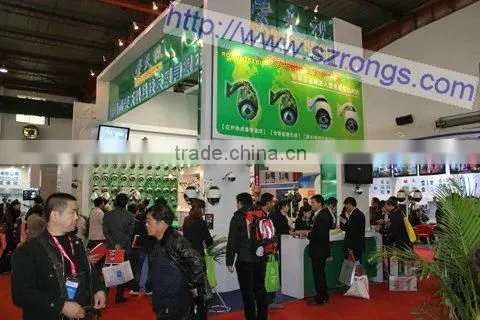

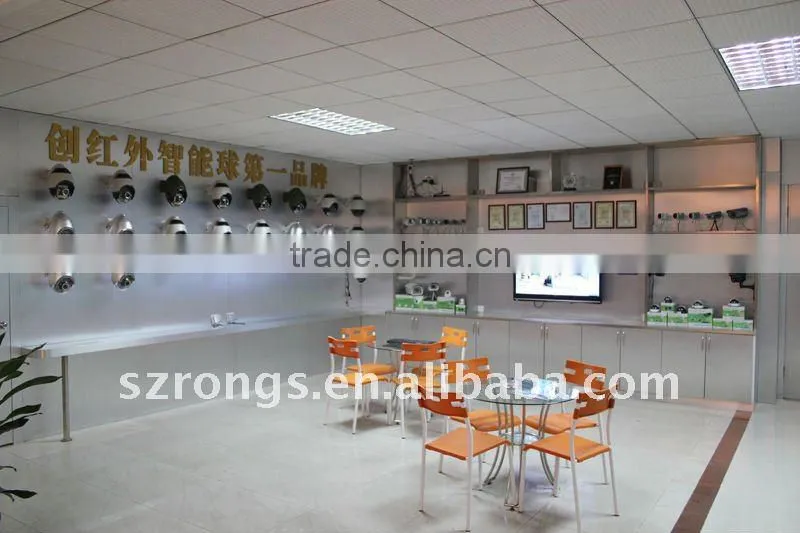

 Product and Factoty photos

high speed mini speed dome camera



 high speed mini speed dome camera
