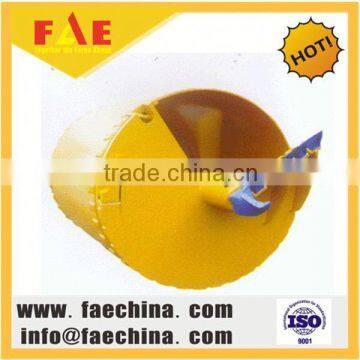

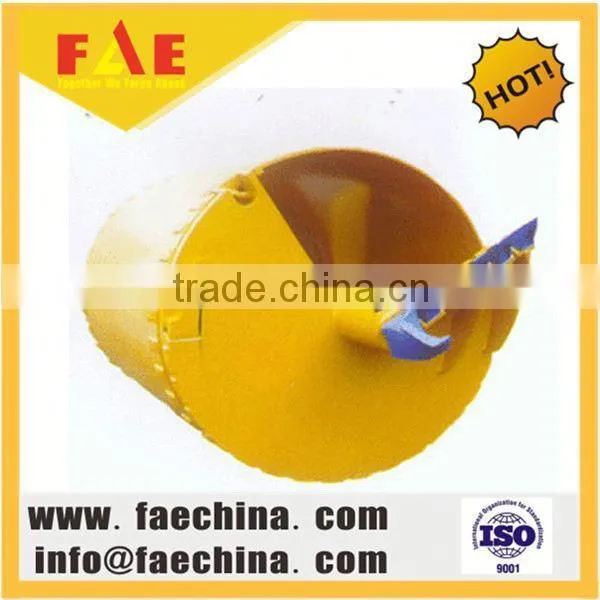

FAE clay/soil drill bucket
What FAE could offer?
We can produce the variety of drill tools,
-soil drilling bucket;
-rock drilling bucket;
-rock core barrels;
-mud(two-petal) drilling bucket;
1) Soil drilling bucket
There are two types for soil drilling bucket:
A-Single bottom drilling bucket
B-Double bottom drillng bucket
Drilling diamter:520mm-2500mm
Shell length:800mm-1500mm
Material:Q345C
Main applications:
-Suitable for drillng in clay,soil and loose to medium dense sand and gravel
-Single bottom drilling bucket are used for clay layer
-Double bottom drilling bucket are mainly used for bigger diameter uncased boreholes
|
Drilling Dia mm |
Shell Dia mm |
Shell length mm |
Bucket thickness mm |
Teeth No pcs |
Material |
| 600 | 570 | 1200 | 16 | 4 | 16Mn |
| 700 | 670 | 1200 | 16 | 4 | 16Mn |
| 800 | 770 | 1200 | 16 | 4 | 16Mn |
| 900 | 870 | 1200 | 16 | 5 | 16Mn |
| 1000 | 970 | 1200 | 16 | 5 | 16Mn |
| 1200 | 1170 | 1200 | 16 | 7 | 16Mn |
| 1250 | 1220 | 1200 | 16 | 7 | 16Mn |
| 1400 | 1370 | 1200 | 16 | 8 | 16Mn |
| 1500 | 1470 | 1200 | 20 | 9 | 16Mn |
| 1600 | 1570 | 1200 | 20 | 9 | 16Mn |
| 1800 | 1770 | 1000 | 20 | 12 | 16Mn |
| 2000 | 1970 | 1000 | 20 | 15 | 16Mn |
All sizes can be manufactured as per customer's demand.
Features:
-Kelly box size as per customer's demand
-Bucket thickness can be made 16mm or 20mm as customer's demand
-The single bottom plate thickness:50mm
-The double bottom plate thickness:40/50mm
-Teeth type:V19 or V20
2) Rock drilling bucket
There are two types for rock drilling buckets
A-Single cut drillng bucket
B-Double cut drilling bucket
Drilling diamter range:520mm-2500mm
Shell length:800mm-150mm
Material:Q345C
Main Applications:
Suitable for drilling in rock layer and sandy gravel.
|
Drilling Dia mm |
Shell Dia mm |
Shell length mm |
Bucket thickness mm |
Teeth No pcs |
Material |
| 600 | 570 | 1200 | 16 | 8 | 16Mn |
| 700 | 670 | 1200 | 16 | 9 | 16Mn |
| 800 | 770 | 1200 | 16 | 11 | 16Mn |
| 900 | 870 | 1200 | 16 | 11 | 16Mn |
| 1000 | 970 | 1200 | 16 | 13 | 16Mn |
| 1200 | 1170 | 1200 | 16 | 15 | 16Mn |
| 1250 | 1220 | 1200 | 16 | 15 | 16Mn |
| 1400 | 1370 | 1200 | 16 | 17 | 16Mn |
| 1500 | 1470 | 1200 | 20 | 19 | 16Mn |
| 1600 | 1570 | 1200 | 20 | 19 | 16Mn |
| 1800 | 1770 | 1000 | 20 | 21 | 16Mn |
| 2000 | 1970 | 1000 | 20 | 23 | 16Mn |
Features:
-Kelly box size as per customer's demand
-Bucket thickness can be made 16mm or 20mm as customer's demand
-The single bottom plate thickness:50mm
-The double bottom plate thickness:40/50mm
-Teeth typeB47K-22H/3050
What is FAE products and packing?
What are FAE delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
