FAE mud bucket
What FAE could offer?
We can produce the variety of drill tools,
-soil drilling bucket;
-rock drilling bucket;
-rock core barrels;
-mud(two-petal) drilling bucket;

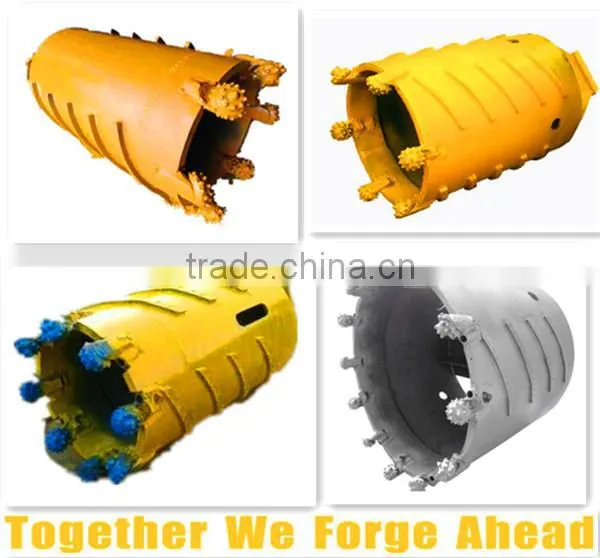

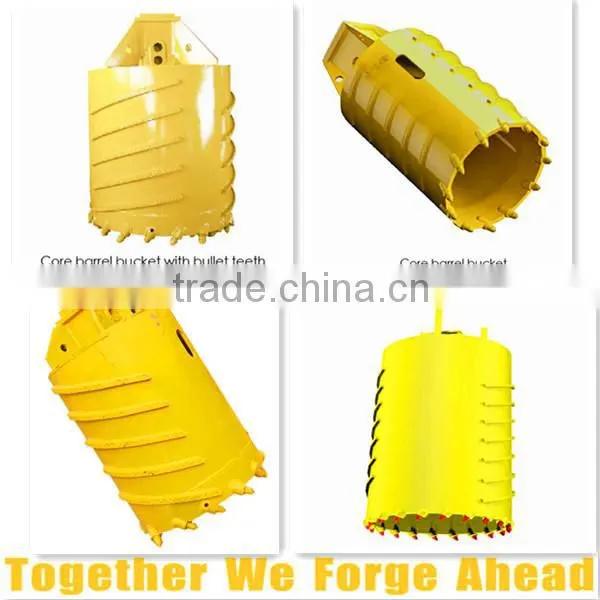

1) Rock core barrel
Drilling diamter:520mm-2500mm
Shell length:800mm-1500mm
Material:16Mn/Q345C
Main applications:
Core barrel are used for hard layer and coring.
|
Drilling Dia mm |
Shell Dia mm |
Shell length mm |
Shell thickness mm |
Teeth No pcs |
Material |
Weight kg |
| 600 | 570 | 1200 | 16 | 6 | 16Mn | 600 |
| 700 | 670 | 1200 | 16 | 7 | 16Mn | 700 |
| 800 | 770 | 1200 | 16 | 9 | 16Mn | 800 |
| 900 | 870 | 1200 | 16 | 9 | 16Mn | 900 |
| 1000 | 970 | 1200 | 16 | 11 | 16Mn | 1020 |
| 1200 | 1170 | 1200 | 16 | 13 | 16Mn | 1150 |
| 1250 | 1220 | 1200 | 16 | 13 | 16Mn | 1280 |
| 1400 | 1370 | 1200 | 16 | 15 | 16Mn | 1350 |
| 1500 | 1470 | 1200 | 20 | 15 | 16Mn | 1450 |
| 1800 | 1770 | 1000 | 20 | 19 | 16Mn | 2100 |
Any other bigger sizes can be made by customer demand.
Features:
-Kelly box size as per customer's demand
-Bucket thickness can be made 16mm or 20mm as customer's demand
-Teeth type:B47K-22H/3050.with round holder or roller bits.

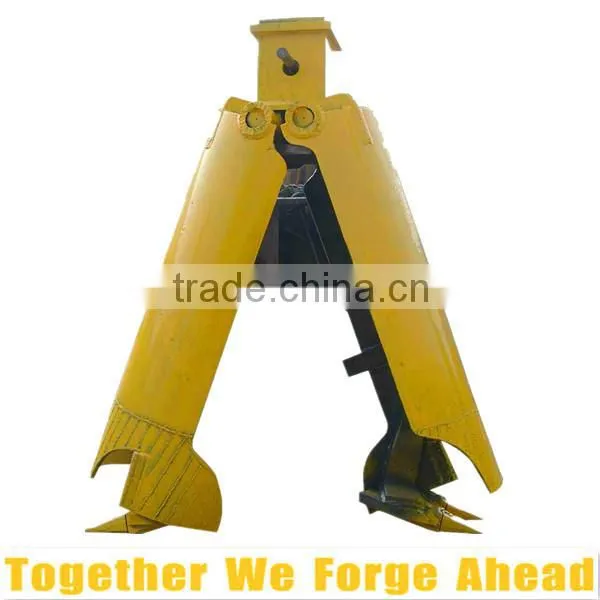

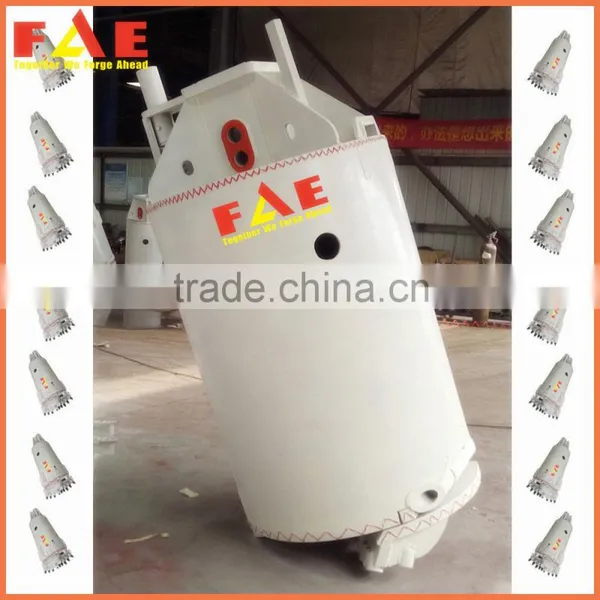

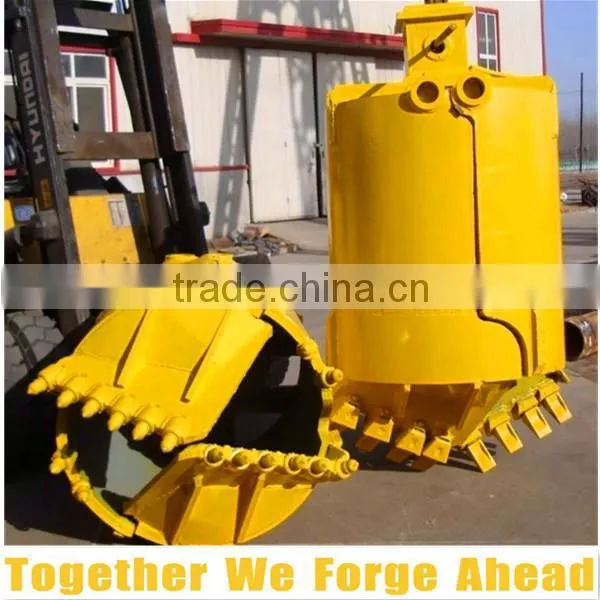

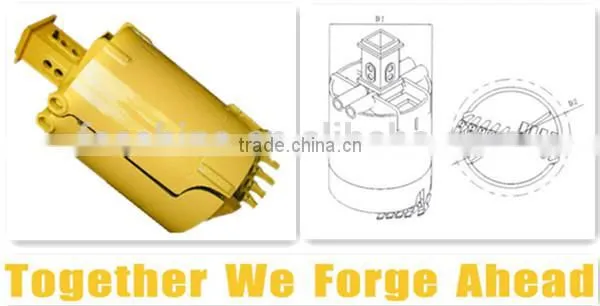

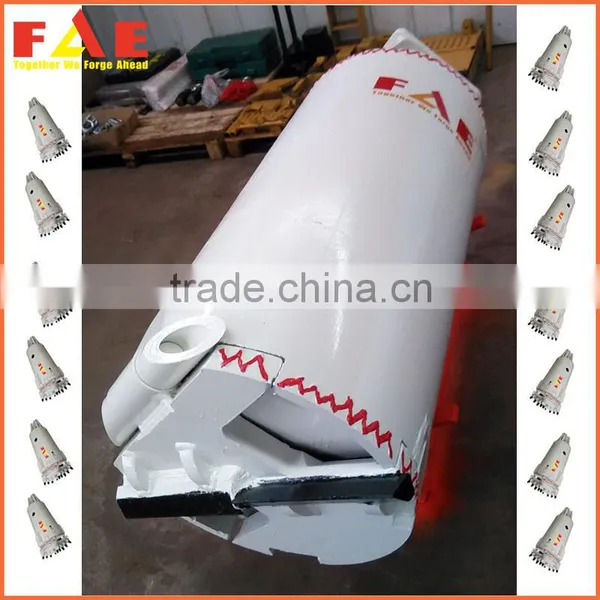

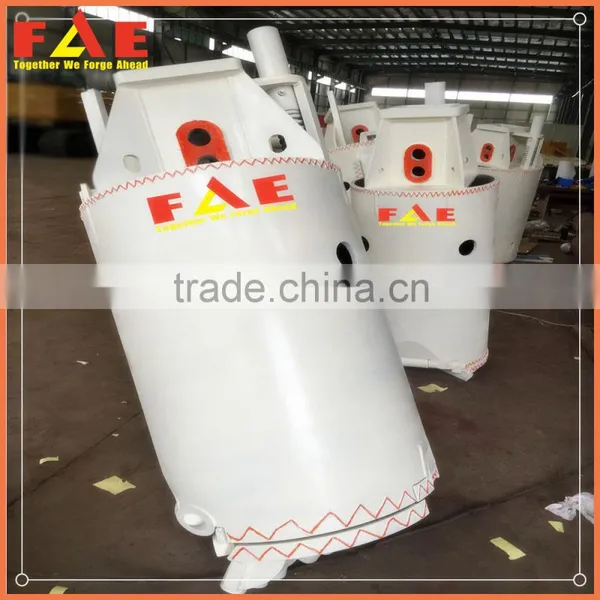

2) Mud bucket
Drilling diameter range:600-1200mm
Shell Length:1200mm
Meterial:Q345C
|
Drilling Dia mm |
Shell Dia mm |
Shell length mm |
Bucket thickness mm |
Material |
| 600 | 570 | 1200 | 16 | 16Mn |
| 700 | 670 | 1200 | 16 | 16Mn |
| 800 | 770 | 1200 | 16 | 16Mn |
| 900 | 870 | 1200 | 16 | 16Mn |
| 1000 | 970 | 1200 | 16 | 16Mn |
| 1200 | 1170 | 1200 | 16 | 16Mn |
| 1250 | 1220 | 1200 | 16 | 16Mn |
| 1400 | 1370 | 1200 | 16 | 16Mn |
| 1500 | 1470 | 1200 | 20 | 16Mn |
Features:
-Mud drilling bucket are used for silt or mud layer
-Kelly box size as per customer demand
-Bucket thickness: 30/40 mm
-Cantboard thickness:50mm
-Teeth type : V19/V20 teeth

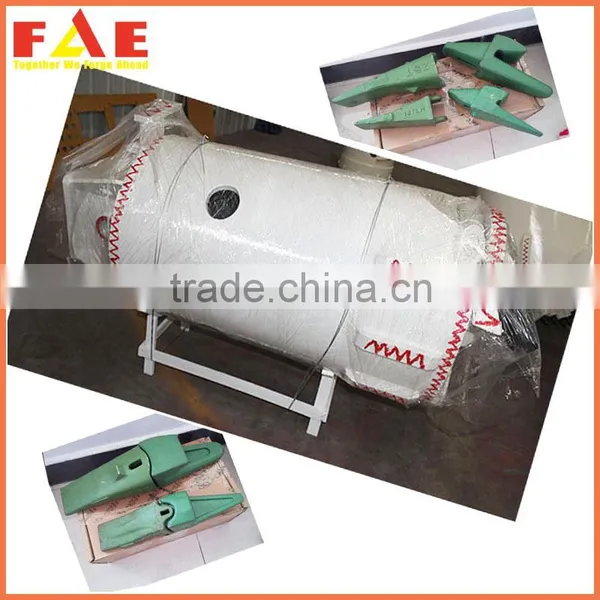

What is FAE mud bucket and packing?
What are FAE business cooperation?
What are FAE mud bucket delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
