2015 hot sale private mould H.264 android P2P home security ip camera
Main features:
Professional design for HD network camera, small, beautiful and delicate, best for home security.

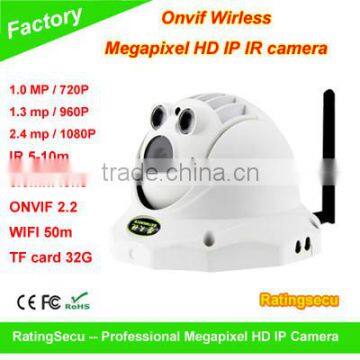

Material: aluminum alloy + plastic, innovative patented heat dissipation structure, make HD camera can works well under high temperature3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.
Horizontal 330° rotation, rotate speed 30° / second, vertical 3° - 90° rotate, speed 20° / second.
Preset position with 64 pcs programmable, 4 tour scan routes, 2 points scan.
Scan speed & manual control rotate speed & preset stay time are adjustable.
Will not lose internal data when power off, can manual control IR LED turn on / off.
Advanced digital signal processing technology, high brightness imported SMD IR source, show the best HD video effects in both day and night environment.
3.0 megapixel HD lens + IR-CUT auto switch in day and night, 3.6mm, 6mm,8mm fixed lens ,2.8-12mm motorized zoom lens optional,
Support 3D DNR, digital WDR,auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.

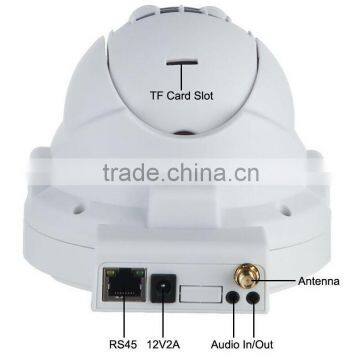

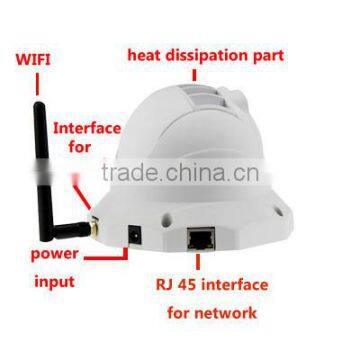

Wireless design, DC power interface + RJ45 network interface, easy for installation and use.
Optional function : External WIFI ,TF card Slot, audio pick-up ,POE,
Support ONVIF protocol, can provide the SDK.
Build-in WEB browse software.
Free P2P for remote surveillance.
Installation method: wall mount / ceiling mount / stand on desk.
Size: 131(DIA) x 95 (Height) mm. Packing: 22x18x18 cm / GW: 800g include power supply.
Technical parameters:
Model: | R-N400A1 (720P) | R-N400A3 (960P) | R-N400A5 (1080P) | ||
Camera | Imaging sensor: | 1/4" CMOS progressive scan | 1/3" CMOS progressive scan | 1/2.8" SONY progressive | |
Signal system: | PAL / NTSC adjustable | ||||
Scanning mode: | Progressive scanning | ||||
Illumination: | Color 0.2 lux, black & white 0.05 lux, IR on 0 lux | Color 0.2 lux, black & white 0.02 lux, IR on 0 lux | Color 0.2 lux, black & white 0.02 lux, IR on 0 lux | ||
Lens: | Standard with 3.0 megapixel, 3.6, 6 ,8mm fixed focus, optional CS lens ,optional 2.8-12mm motorized zoom lens | ||||
Day and night switch: | IR-CUT dual optical filters auto switch in day and night | ||||
Electronic shutter: | Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds) | ||||
White balance: | Auto / manual | ||||
DNR: | 3D-DNR | ||||
IR source: | 2pcs SMD array light source+ Finland LEDIL light lens | ||||
Effective night vision distance: | 25-35 meters | ||||
Standard compression | Image compression: | H.264 | |||
Video bit rate: | 128 Kbps -- 8 Mbps; CBR / VBR adjustable | ||||
Audio compression: | G.711 / G.726 | ||||
Audio bit rate: | 64 Kbps (G.711) / 16 Kbps (G.726) | ||||
Image | Max image size: | 1280 x 800 | 1296 x 976 | 1984 x 1225 | |
Frame rate: | 1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps | ||||
Image adjustment: | Through IE can adjust Saturation, brightness, contrast, sharpness | ||||
Image mirroring: | Horizontal mirroring, vertical mirroring | ||||
Scene: | Auto, indoor, outdoor | ||||
Digital enlarge: | Can achieve through NVR, P2P HD monitoring management software | ||||
Function | Storage: | Support TF card storage | |||
Interface protocol: | ONVIF | ||||
| Support protocol: | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional) | |||
Intelligent alarm: | Motion detection, mask alarm, network cable break , IP address conflict, storage card is full, storage device is wrong | ||||
Audio pickup: | Can add internal audio pickup, also support external audio pickup | ||||
POE power supply: | Support POE power supply (optional), internal and external type | ||||
WIFI: | Support WIFI function (optional) | ||||
Interface | Communication interface: | 1pc RJ45 10M / 100M Adaptive Ethernet port | |||
Basic parameter | Power input: | DC 12V±10% / POE | |||
Power consumption: | 1W (IR off) / 5.5 W (IR on) | 1.1 W / 5.6 (IR on) | |||
Work environment: | -35℃ - 60℃, humidity is less than 95% (no condensation) | ||||
Size: | Diameter131mm x height 95mm | ||||
