High quality CFA continuous flight auger drilling auger
What FAE could offer?
Drill augers are divided into two types:
1-Conical auger
2-Flat rock auger
3-Continuous flight auger and auger head

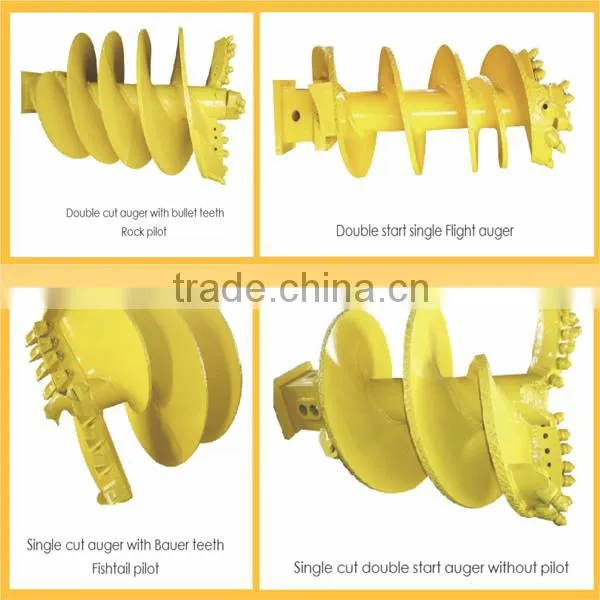

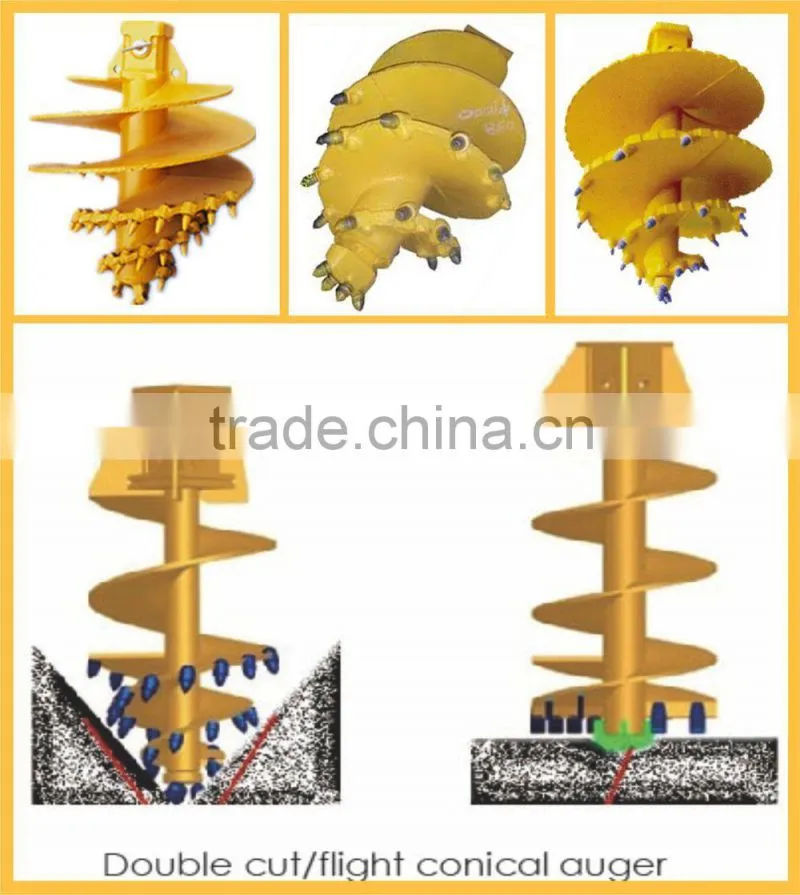

1) Conical rock auger
There are two types for conical rock augers:
A-Single cut auger
B-Double cut auger
Drilling diameter range:600-1800mm
Centre pipe thickness:30mm
Flight thickness:20/30mm
What is the specifications of conical rock auger?
|
Drilling Dia mm |
Shell Dia mm |
Shell Length mm |
Bucket thickness mm |
Material |
| 600 | 570 | 1200 | 20/30 | 16Mn |
| 700 | 670 | 1200 | 20/30 | 16Mn |
| 800 | 770 | 1200 | 20/30 | 16Mn |
| 900 | 870 | 1200 | 20/30 | 16Mn |
| 1000 | 970 | 1200 | 20/30 | 16Mn |
| 1200 | 1170 | 1200 | 20/30 | 16Mn |
| 1250 | 1220 | 1200 | 20/30 | 16Mn |
| 1400 | 1370 | 1200 | 20/30 | 16Mn |
| 1500 | 1470 | 1200 | 20/30 | 16Mn |
| 1800 | 1770 | 1200 | 20/30 | 16Mn |
*Other sizes could be manufactured as per customer's demand
Kelly box size as per customer's demand
2)Flat rock auger
There are two types for flat rock auger:
A-Single cut/flight auger
B-Double cut/flight auger
Drilling diamter range:600-1800mm
Centre pipe thickness:30mm
Flight thickness:20/30mm
What are the specifications of flat rock auger?
|
Drilling Dia mm |
Shell Dia mm |
Shell Length mm |
Bucket thickness mm |
Material |
| 600 | 570 | 1200 | 20/30 | 16Mn |
| 700 | 670 | 1200 | 20/30 | 16Mn |
| 800 | 770 | 1200 | 20/30 | 16Mn |
| 900 | 870 | 1200 | 20/30 | 16Mn |
| 1000 | 970 | 1200 | 20/30 | 16Mn |
| 1200 | 1170 | 1200 | 20/30 | 16Mn |
| 1250 | 1220 | 1200 | 20/30 | 16Mn |
| 1400 | 1370 | 1200 | 20/30 | 16Mn |
| 1500 | 1470 | 1200 | 20/30 | 16Mn |
| 1800 | 1770 | 1200 | 20/30 | 16Mn |
*Other sizes could be manufactured as per customer's demand
Kelly box size as per customer's demand

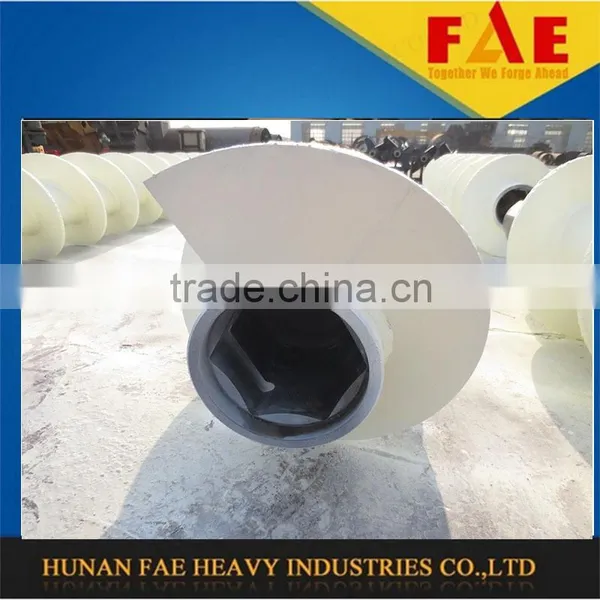

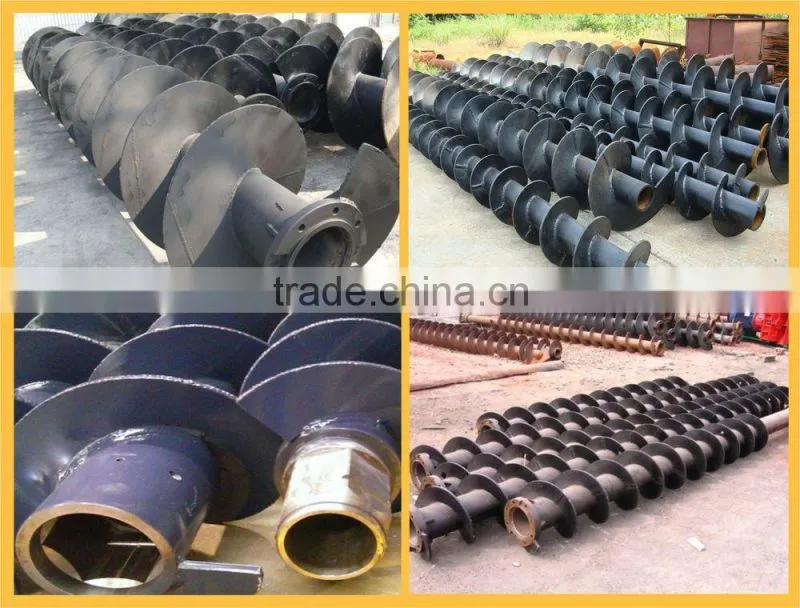

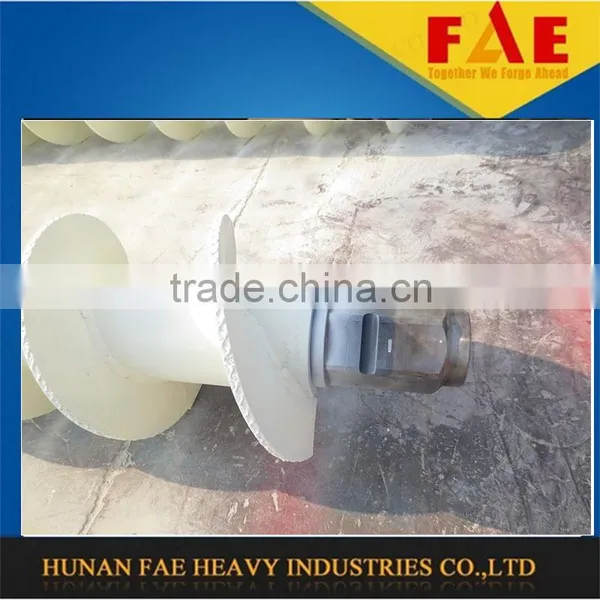

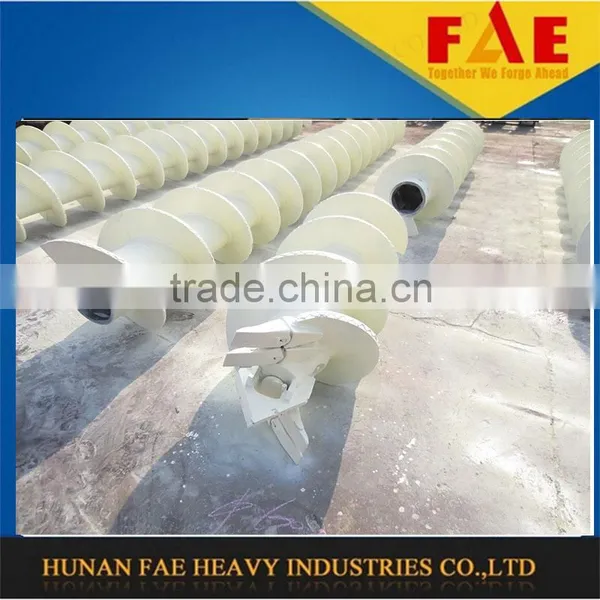

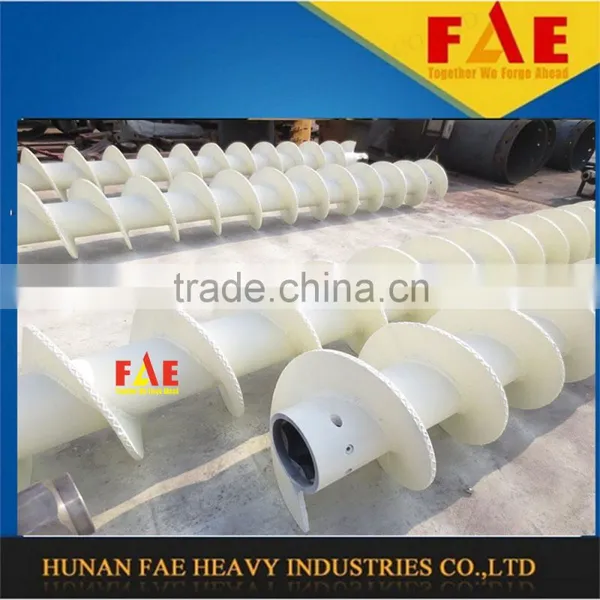

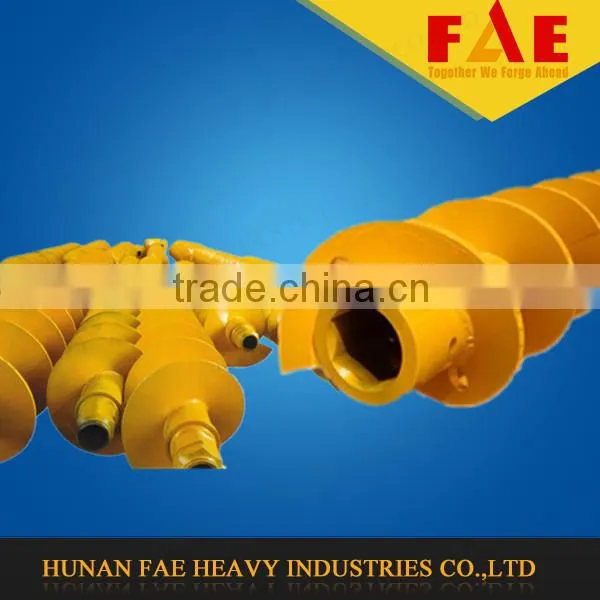

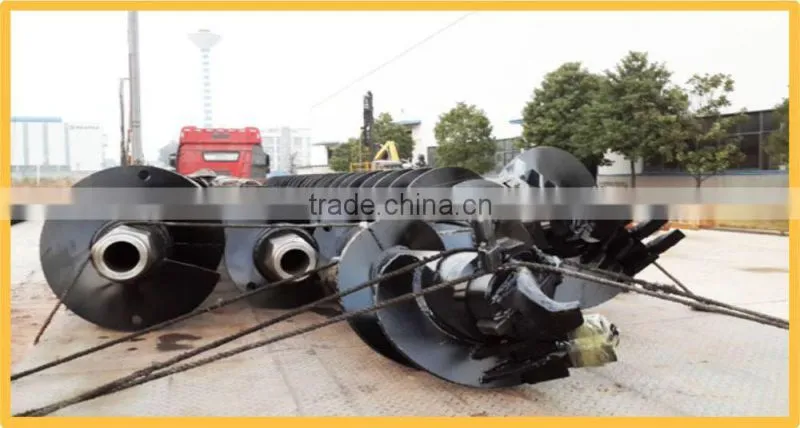

3)Continuous flight auger and auger head
What is the specifications of CFA auger and auger head?
|
Diameter mm |
Coupling type |
Flight thickness mm |
Length m |
Flight pitch mm |
Weight kg |
| 400 | optional | 16 | 2 3 4 5 6 | 340 | 283 386 489 592 695 |
| 500 | optional | 16 | 2 3 4 5 6 | 400 | 465 638 811 983 1156 |
| 600 | optional | 20 | 2 3 4 5 6 | 500 | 526 730 933 1137 1340 |
| 800 | optional | 20 | 2 3 4 5 6 | 500 | 671 948 1223 1499 1775 |
| 1000 | optional | 25 | 2 3 4 5 6 | 600 | 856 1225 1592 1961 2329 |
|
Diameter mm |
Flight pitch mm |
Flight thickness(top) mm |
Flight thickness(bottom) mm |
Weight |
| 400 | 340 | 30 | 16 | 254 |
| 500 | 400 | 30 | 16 | 386 |
| 600 | 500 | 40 | 20 | 449 |
| 800 | 500 | 40 | 20 | 603 |
| 1000 | 600 | 40 | 20 | 797 |
