thrust jack machine foundation equipment casing rotator
What are FAE casing rotator?
What are casing rotator powerpacks?
What is the Specifications of powerpack ?
| Major technical parameters of hydraulic power pack: | |||||
| 1305L | 1505 | 2005H | 2005H | ||
| Engine Model | Y2-280M-4 | ISUZU AA-6HK1XQP | Cummins QSM11-335 | Cummins QSX15-600 | |
| Engine Power | kw/rpm | 2×90/1480 | 183.9/2000 | 272/1800 | 441/1800 |
| Fuel consumption of engine | g/kwh | / | 226.6 power rate) | 216 power rate) | 213 power rate) |
| Weight | ton | 4 | 7 | 8 | 12 |
| Control mode | Wired remote control | Wired remote control | Wired remote control | Wired remote control | |
| A) Std Powerpack Without Wheels. B) Powerpack with Wheels is Optional. | |||||

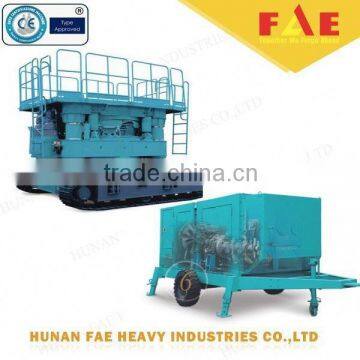

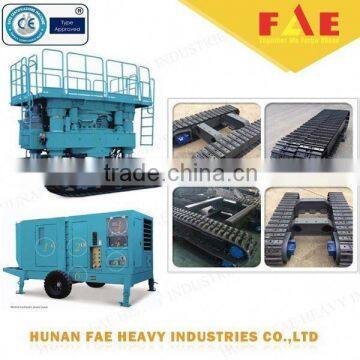

What are its working device ?
What is the Specifications of working device ?
| The main technical parameters of working device: | |||||
| FACR1305L | FACR1505 | FACR2005H | FACR2605H | ||
| Diameter of drill hole | mm | ¢600-¢1300 | ¢800-¢1500 | ¢1000-¢2000 | ¢1200-¢2600 |
| Rotary torque | kN.m | 1770/1050/590 | 1500/975/600 Instantaneous 1800 | 2965/1752/990 Instantaneous 3391 | 5293/3127/1766 Instantaneous 6174 |
| Rotary speed | rpm | 1.5/2.6/4.5 | 1.6/2.46/4.0 | 1.0/1.7/2.9 | 0.6/1.0/1.8 |
| Lower pressure of sleeve | kN | Max.360KN+ Deed weight 190KN | Max.360KN+ Deed weight 210KN | Max.600KN+ Deed weight 260KN | Max.830KN+ Deed weight 350KN |
| Pulling force of sleeve | kN | 2690 | 2444 Instantaneous 2690 | 3760 Instantaneous 4300 | 3800 Instantaneous 4340 |
| Pressure-pulling stroke | mm | 500 | 750 | 750 | 750 |
| Weight | Ton | 25 | 31+(Selection and installation of track)7 | 45+(Selection and installation of track)9 | 55+(Selection and installation of track)10 |
What are its production details?
What are its working method ?
The automatic control device, which is the cutter head load control device, controls the pressure of thrust hydraulic oil cylinder , makes the cutter head load constant with the changes of the casing weight and different resistance. It keeps the machine in its optimum working state.
This is the most advanced automatic control system available. It is a perfect representation of the integrated machine, power and fluid, which has greatly enhanced the safety and working efficiency.

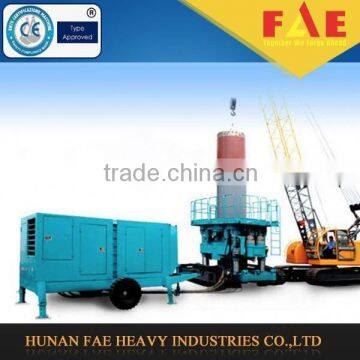

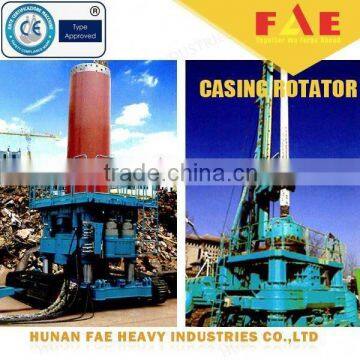

What are its job sites ?
What are its packing and delivery ?
