thrust stroke casing shoes construction equipment casing rotator for foundation
What FAE Could offer?
The casing rotator is a new integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid.
It is a new, environmentally~friendly and highly efficient drilling technology. In recent years, it is widely adopted in the projects such as the constructions of urban subway, articulation pits of deep foundation pit enclosure. clearance of waste piles(underground obstructions),highspeed rail, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.
The successful research of this brand new process method has realized the possibilities for the construction workers to conduct the construction of casting pipe, displacement pile, and underground continuous wall, as well as the possibilities for the pipe~jacking and shield tunnel to pass through the various pile foundations without barriers, when the obstructions, such as the gravel and boulder formation, cave formation, thick quicksand stratum,strong necking down formation, various pile foundation and steel reinforced concrete structure, are not removed.
Foundation pile, continuous wall
~ Foundation piles far high-speed rail, road and bridge and house building
~Articulation pile constructions which are required to be excavated. such as subway platforms, underground architectures, continuous walls
~Water retaining wall of reservoir reinforcement
Drilling gravels, boulders and karst cares
~It is allowable to conduct the foundation pile construction at mountain lands with gravel and boulder formations
~It is allowable to conduct operation and cast the foundation piles at the thick quicksand formation and necking down stratum or the filling layer
~Conduct rock~socketed drilling to the rock stratum. cast the foundation pile
Clear the underground obstructions
~During the urban construction and bridge rebuilding, the obstructions such as the steel reinforced concrete pile, steel pipe pile, H steel pile, pc pile and wood pile can be cleared directly, and cast the foundation pile on the spot.
Cut the rock stratum
~Conduct the rock-rocketed drilling to the cast-in-place piles.
~Drill through-holes on the rock bed (shafts and ventilation holes)
Deep excavation
~Conduct the in~place casting or steel pipe pile inserting for the deep foundation improvement.
~Excavate deep wells for construction use in the constructions of reservoir and tunnel.

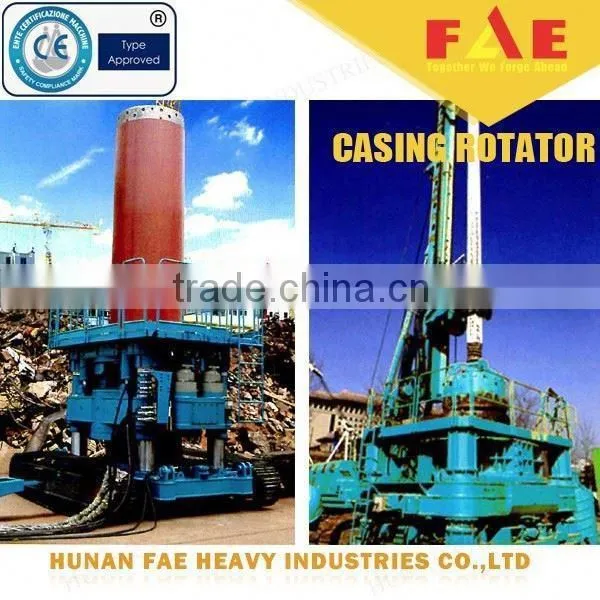

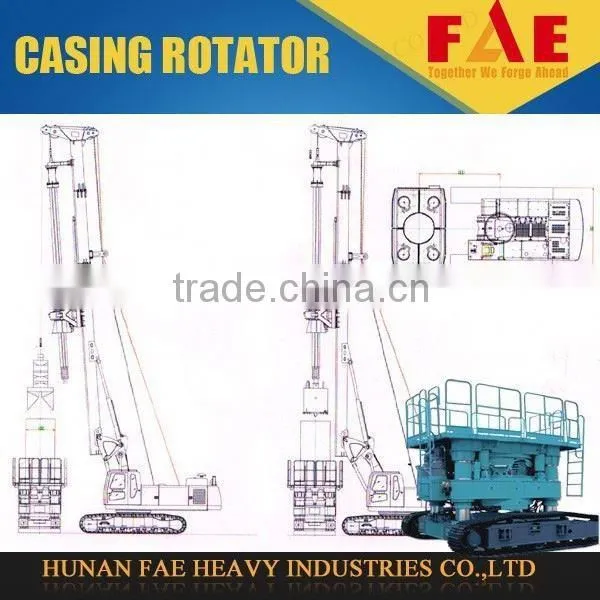

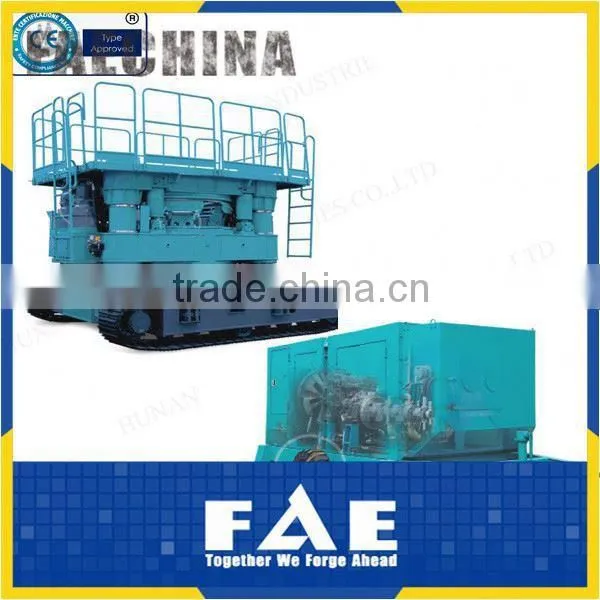

What are FAE casing totator?

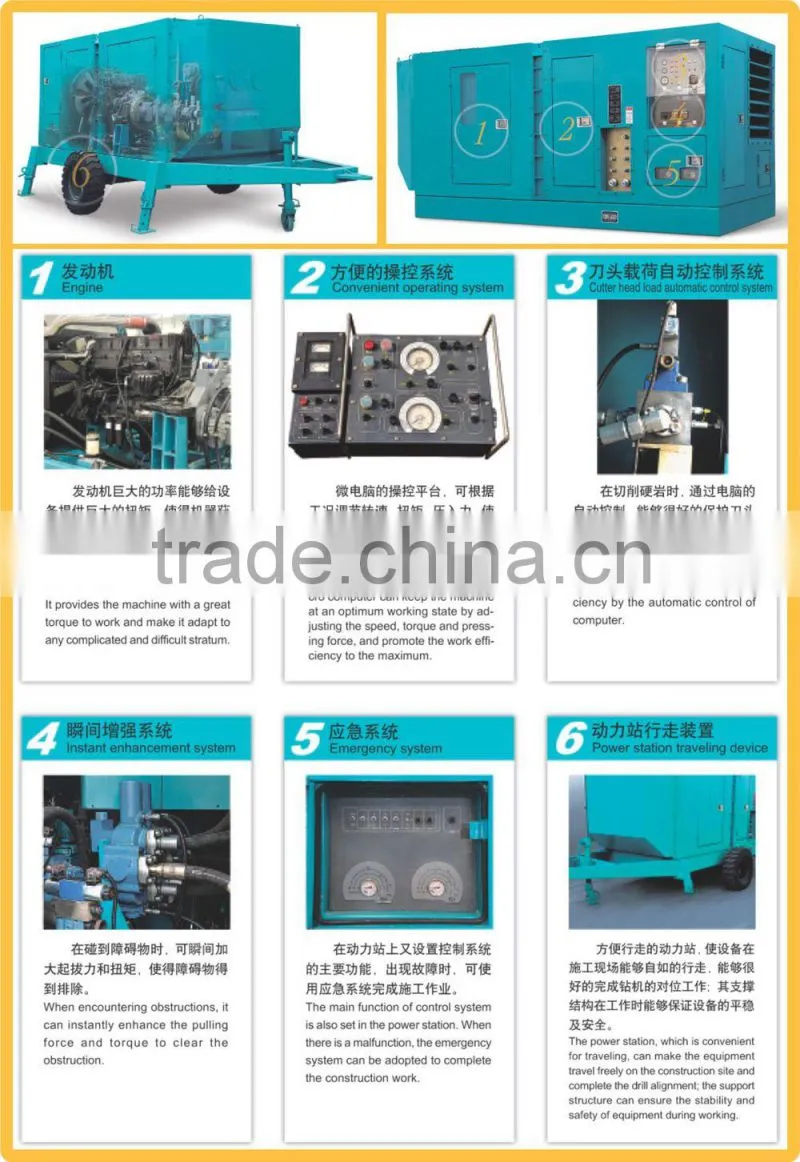

What are its powerpacks ?
What is the Specifications of powerpack ?
| Major technical parameters of hydraulic power pack: | |||||
| 1305L | 1505 | 2005H | 2005H | ||
| Engine Model | Y2-280M-4 | ISUZU AA-6HK1XQP | Cummins QSM11-335 | Cummins QSX15-600 | |
| Engine Power | kw/rpm | 2×90/1480 | 183.9/2000 | 272/1800 | 441/1800 |
| Fuel consumption of engine |
g/kwh | / |
226.6 power rate) |
216 power rate) |
213 power rate) |
| Weight | ton | 4 | 7 | 8 | 12 |
| Control mode | Wired remote control | Wired remote control | Wired remote control | Wired remote control | |
| A) Std Powerpack Without Wheels. B) Powerpack with Wheels is Optional. | |||||

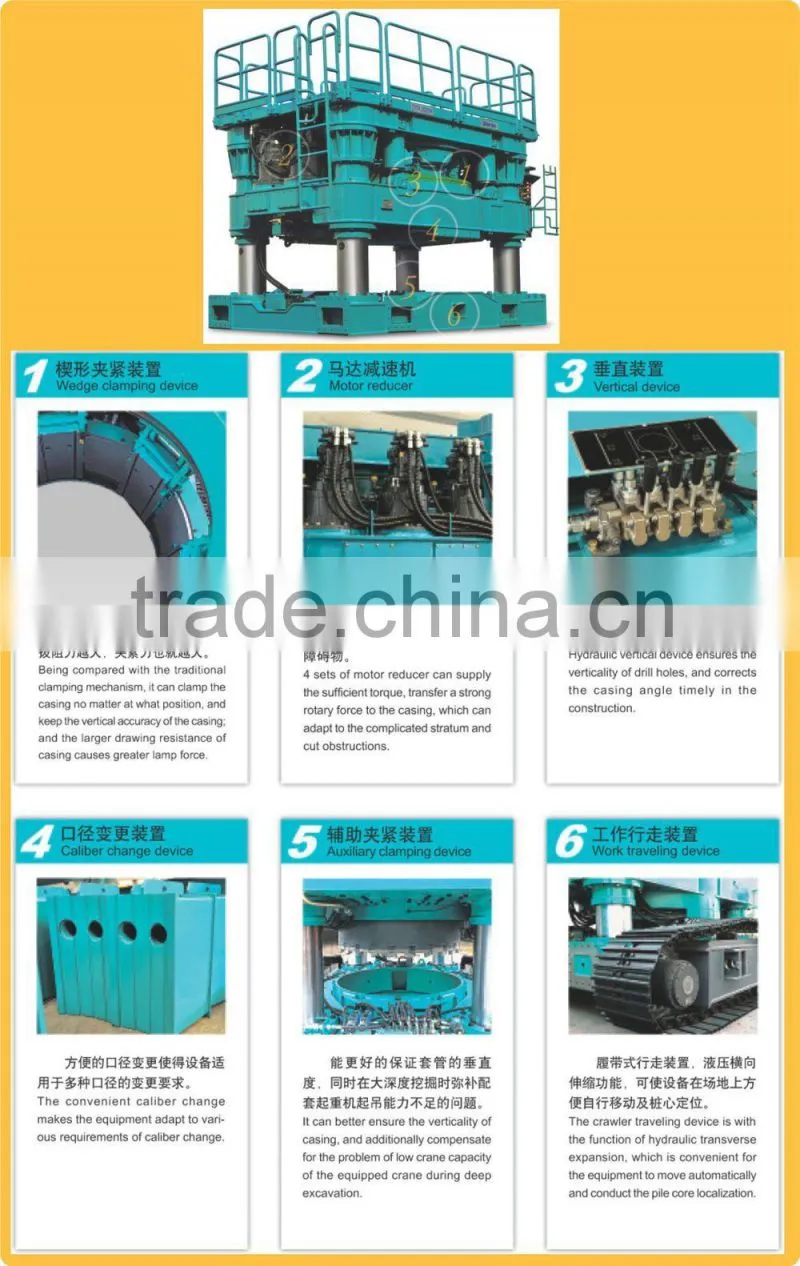

What are its working device ?
What is the Specifications of working device ?
| The main technical parameters of working device: | |||||
| FACR1305L | FACR1505 | FACR2005H | FACR2605H | ||
| Diameter of drill hole | mm | ¢600-¢1300 | ¢800-¢1500 | ¢1000-¢2000 | ¢1200-¢2600 |
| Rotary torque | kN.m | 1770/1050/590 | 1500/975/600 Instantaneous 1800 |
2965/1752/990 Instantaneous 3391 |
5293/3127/1766 Instantaneous 6174 |
| Rotary speed | rpm | 1.5/2.6/4.5 | 1.6/2.46/4.0 | 1.0/1.7/2.9 | 0.6/1.0/1.8 |
| Lower pressure of sleeve | kN | Max.360KN+ Deed weight 190KN |
Max.360KN+ Deed weight 210KN |
Max.600KN+ Deed weight 260KN |
Max.830KN+ Deed weight 350KN |
| Pulling force of sleeve | kN | 2690 | 2444 Instantaneous 2690 |
3760 Instantaneous 4300 |
3800 Instantaneous 4340 |
| Pressure-pulling stroke | mm | 500 | 750 | 750 | 750 |
| Weight | Ton | 25 | 31+(Selection and installation of track)7 |
45+(Selection and installation of track)9 |
55+(Selection and installation of track)10 |

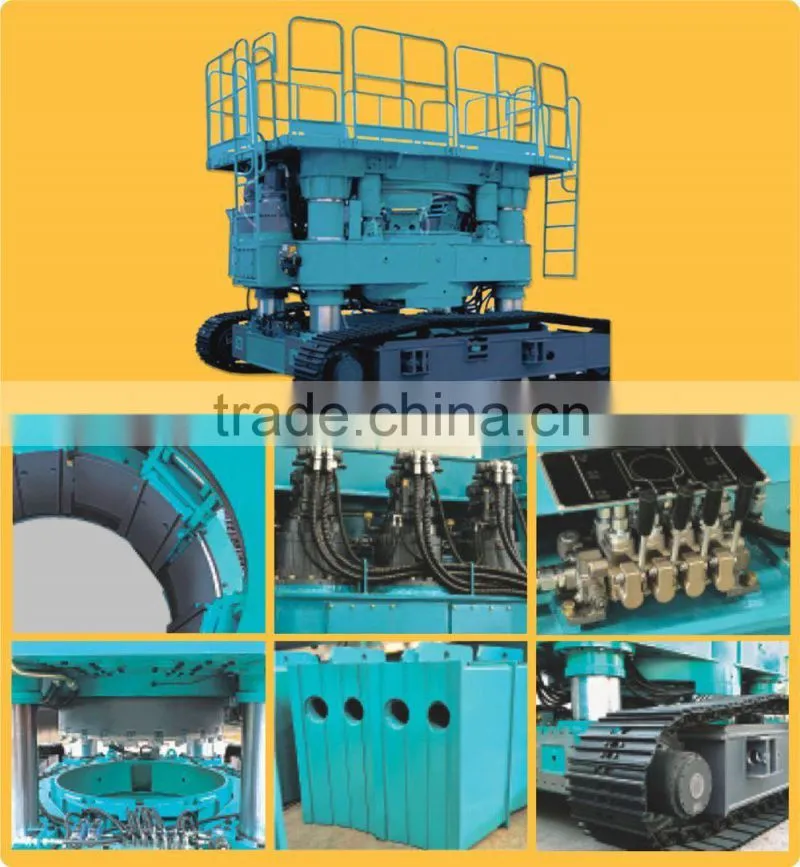

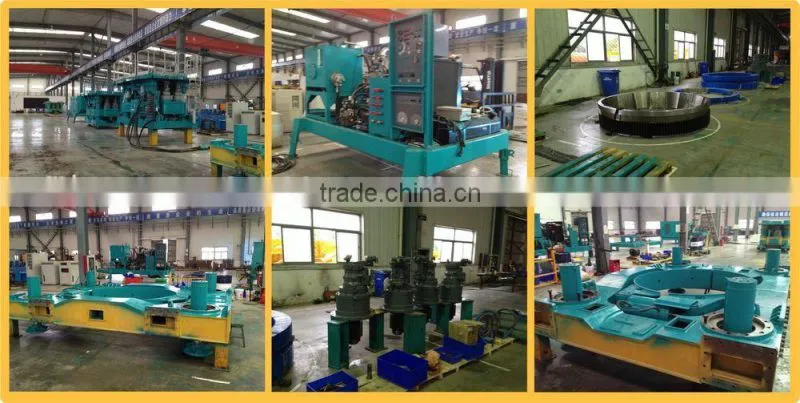

What are its production details ?

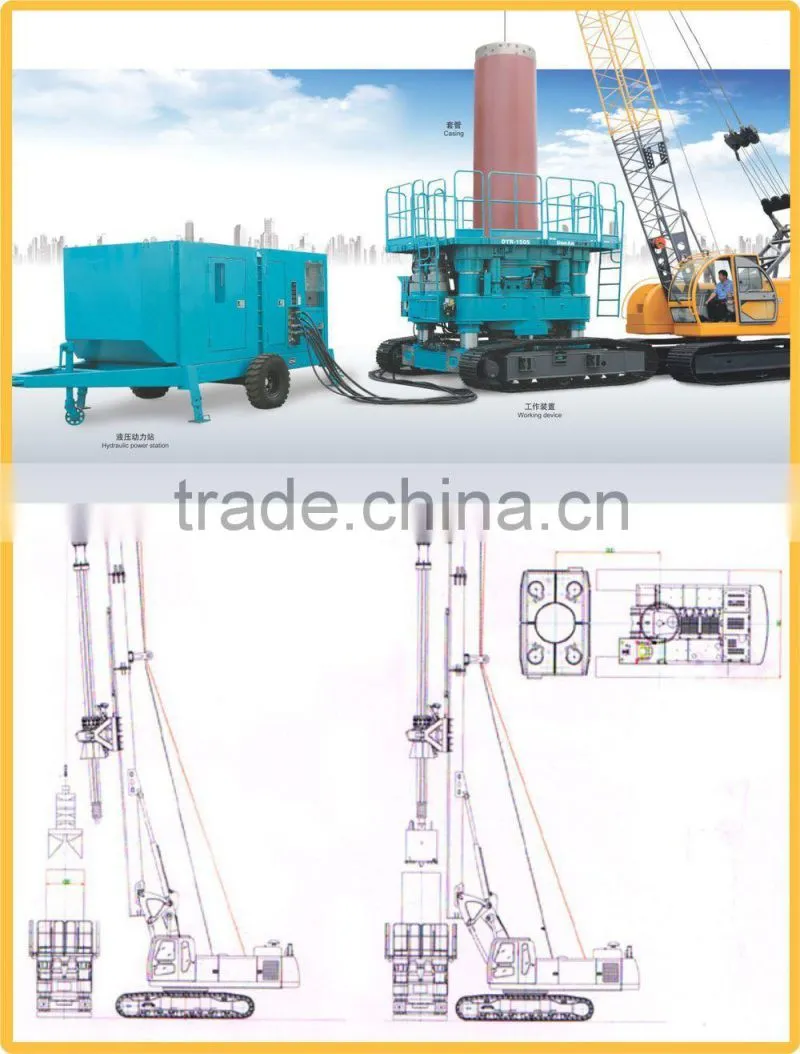

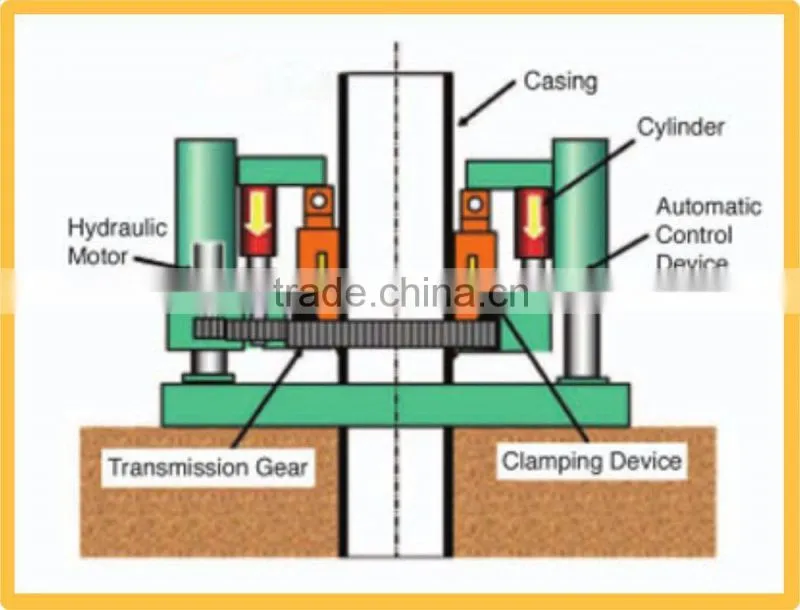

What are its working method ?
The automatic control device, which is the cutter head load control device, controls the pressure of thrust hydraulic oil cylinder , makes the cutter head load constant with the changes of the casing weight and different resistance. It keeps the machine in its optimum working state.
This is the most advanced automatic control system available. It is a perfect representation of the integrated machine, power and fluid, which has greatly enhanced the safety and working efficiency.

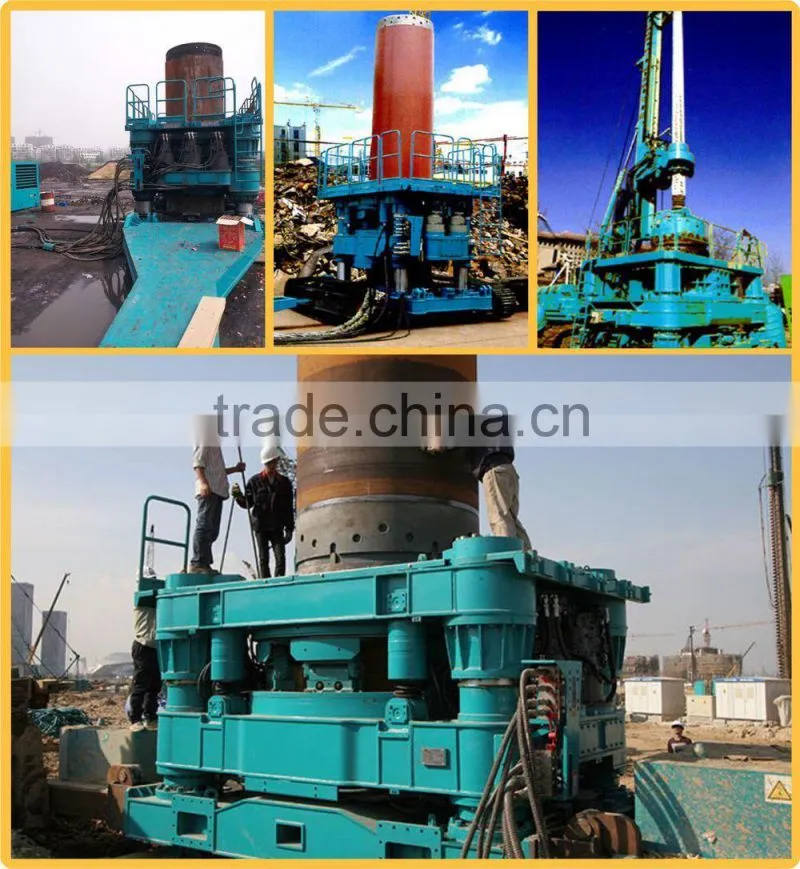

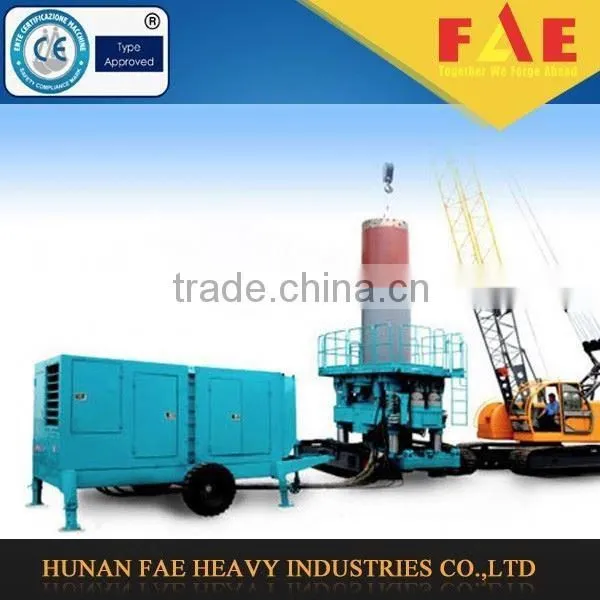

What are its job sites ?
